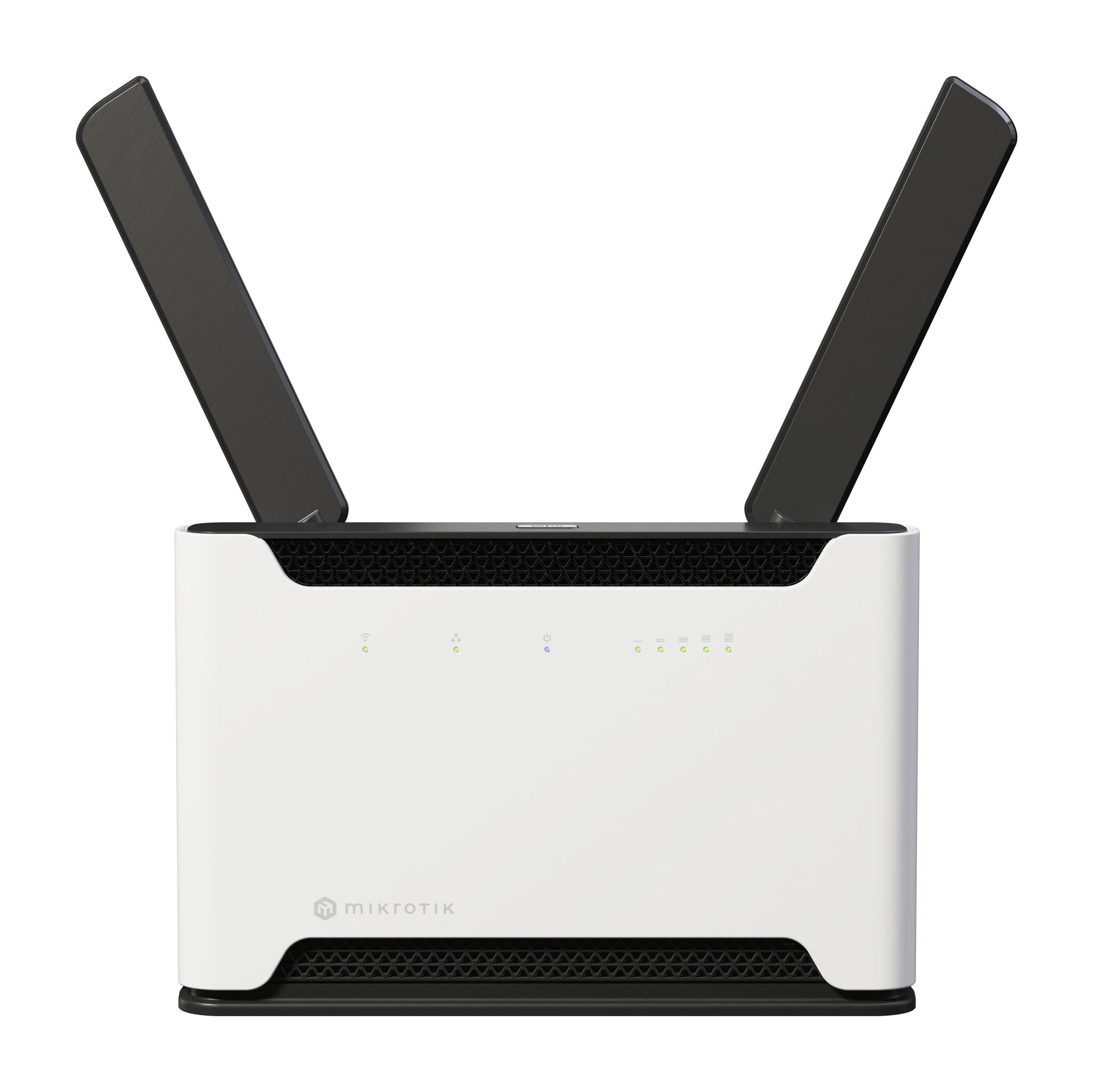

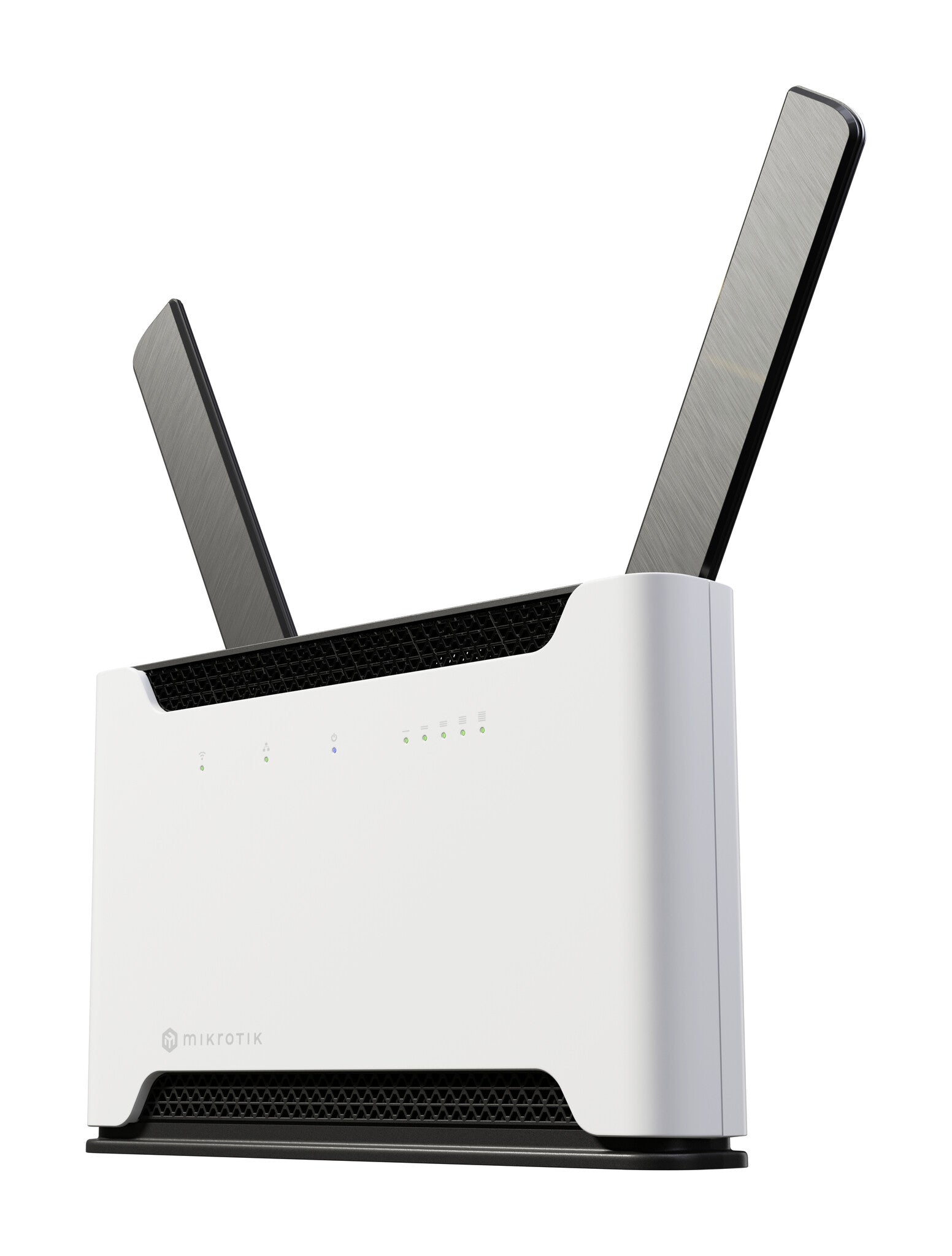

Mikrotik Chateau 5G R17 ax wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Grey
Mikrotik Chateau 5G R17 ax wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Grey
SKU:S53UG+5HAXD2HAXD-TC&RG650E-EU
Low stock: 2 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Desktop/pole router Black, Grey
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 1200 Mbit/s
- Gigabit Ethernet
- SIM card slot
- Ethernet LAN (RJ-45) ports: 5
- USB port
Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.
Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.
Your network, your rules: eSIM or microSIM
Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:
- MikroTik Connectivity (pre-activated data plans)
- Third-party eSIMs (Mobile operator eSIM profiles)
- Multiple eSIM profiles (easily added, switched, or stored)
With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:
- Smart aggregation with wide regional FDD + TDD band support;
- Extra strong signal pickup thanks to 4x4 MIMO;
- Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.
Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!
Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.
| WAN connection | |
|---|---|
| SIM card slot | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1200 Mbit/s |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile network | |
|---|---|
| Mobile network generation | 5G |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G bands supported | 700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 MHz |
| 5G standard | Sub6 NSA, Sub6 SA |
| 3G bands supported | 850,900,2100 MHz |
| SIM card type | MicroSIM |
| 4G bands supported | 700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 MHz |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
| Design | |
|---|---|
| Product type | Desktop/pole router |
| Product colour | Black, Grey |
| International Protection (IP) code | IP20 |
| Indication light | Yes |
| Packaging content | |
|---|---|

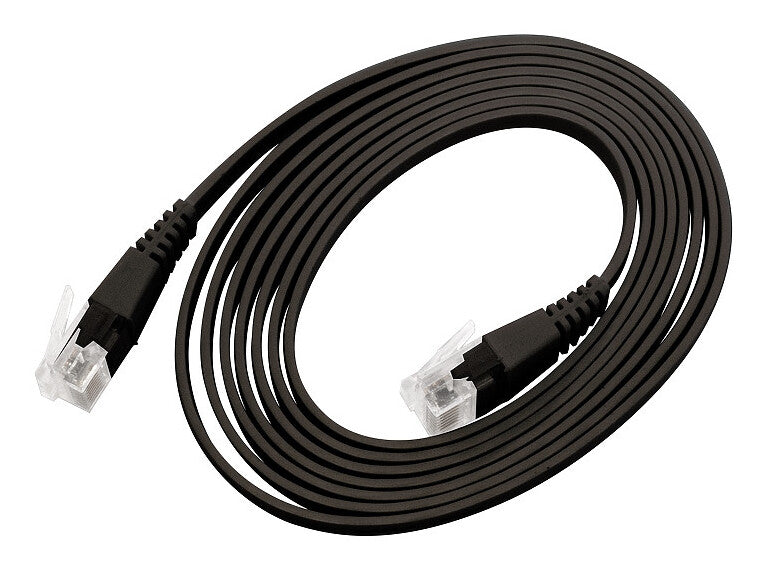

| Cables included | Power, UTP |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Features | |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Internal memory | 1000 MB |
| Flash memory | 128 MB |
| Certification | CE, EAC, ROHS |
| Power | |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 27 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
