Mikrotik

Mikrotik cAP ac 867 Mbit/s White Power over Ethernet (PoE)

Mikrotik cAP ac 867 Mbit/s White Power over Ethernet (PoE)

Regular price £81.42 GBP
Regular price Sale price £81.42 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RBCAPGI-5ACD2ND

13 in stock

  • 2.4 GHz 300 Mbit/s
  • 5 GHz 867 Mbit/s
  • Maximum data transfer rate: 867 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
  • Power over Ethernet (PoE)
  • Antennas quantity: 4 Internal Integrated antenna
IPQ-4018, 128MB RAM, 16MB Flash, Dual-band 2412-2484MHz / 5150MHz-5875MHz, 2 x 10/100/1000, PoE, 802.11ac, White

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.

Features
2.4 GHz Yes
5 GHz Yes
Maximum data transfer rate 867 Mbit/s
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 2.412 - 2.484, 5.15 - 5.875 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Receiver sensitivity 2.4GHz:1MBit/s: -100 @ 26dBm Tx11MBit/s: -94 @ 26dBm Tx6MBit/s: -96 @ 26dBm Tx54MBit/s: -78 @ 23dBm TxMCS0: -96 @ 26dBm TxMCS7: -73 @ 22dBm Tx5GHz:6MBit/s: -96 @ 26dBm Tx54MBit/s: -80 @ 21dBm TxMCS0: -96 @ 26dBm TxMCS7: -75 @ 20dBm TxMCS9: -70 @ 18dBm Tx
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) type supported Active PoE, Passive PoE
Power over Ethernet (PoE) Yes
DC voltage range 17 - 57 V
Output voltage 57 V
Power consumption (max) 13 W
Design

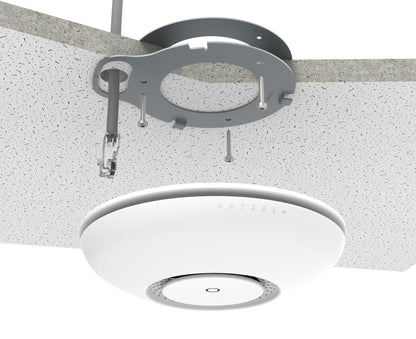

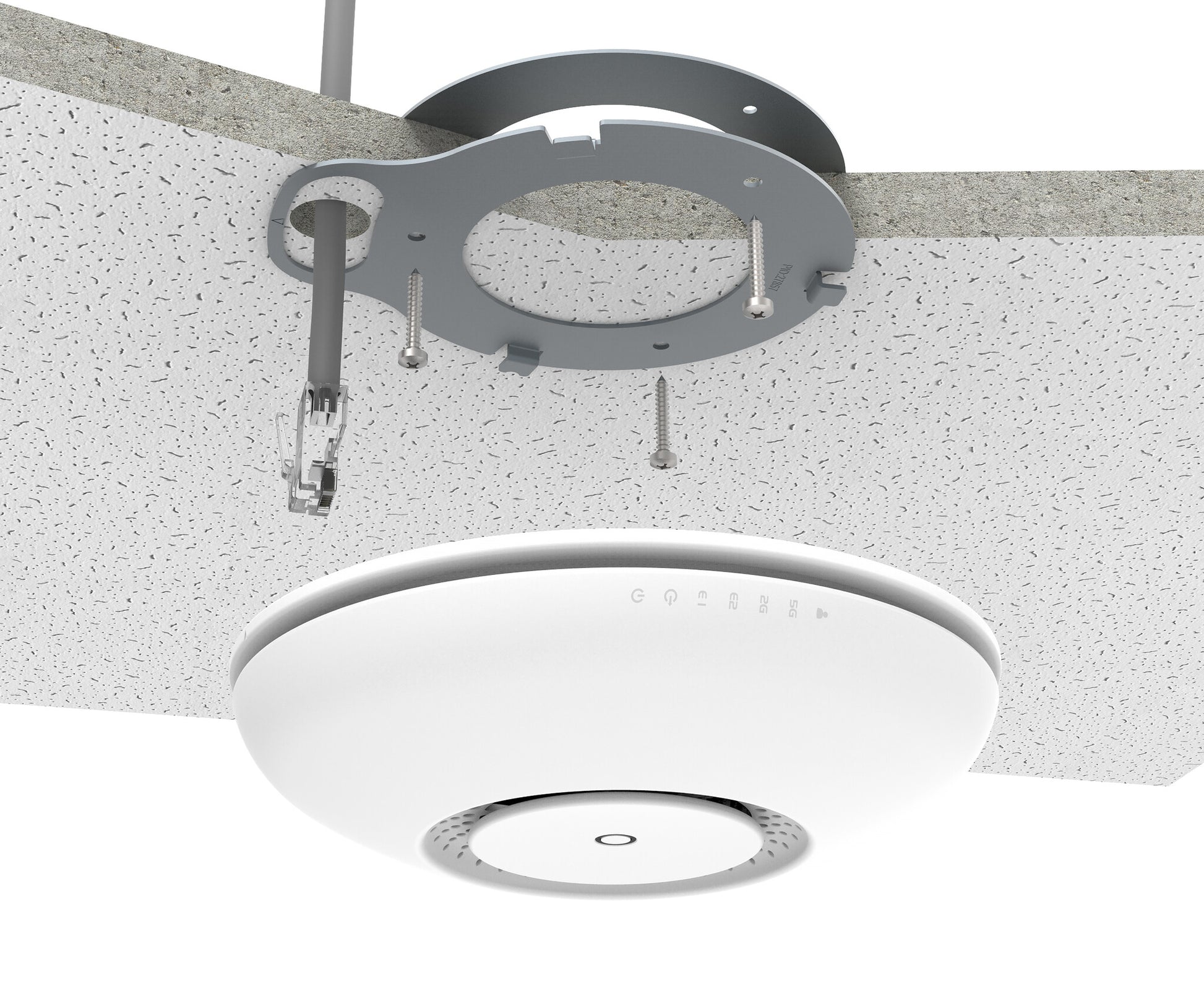

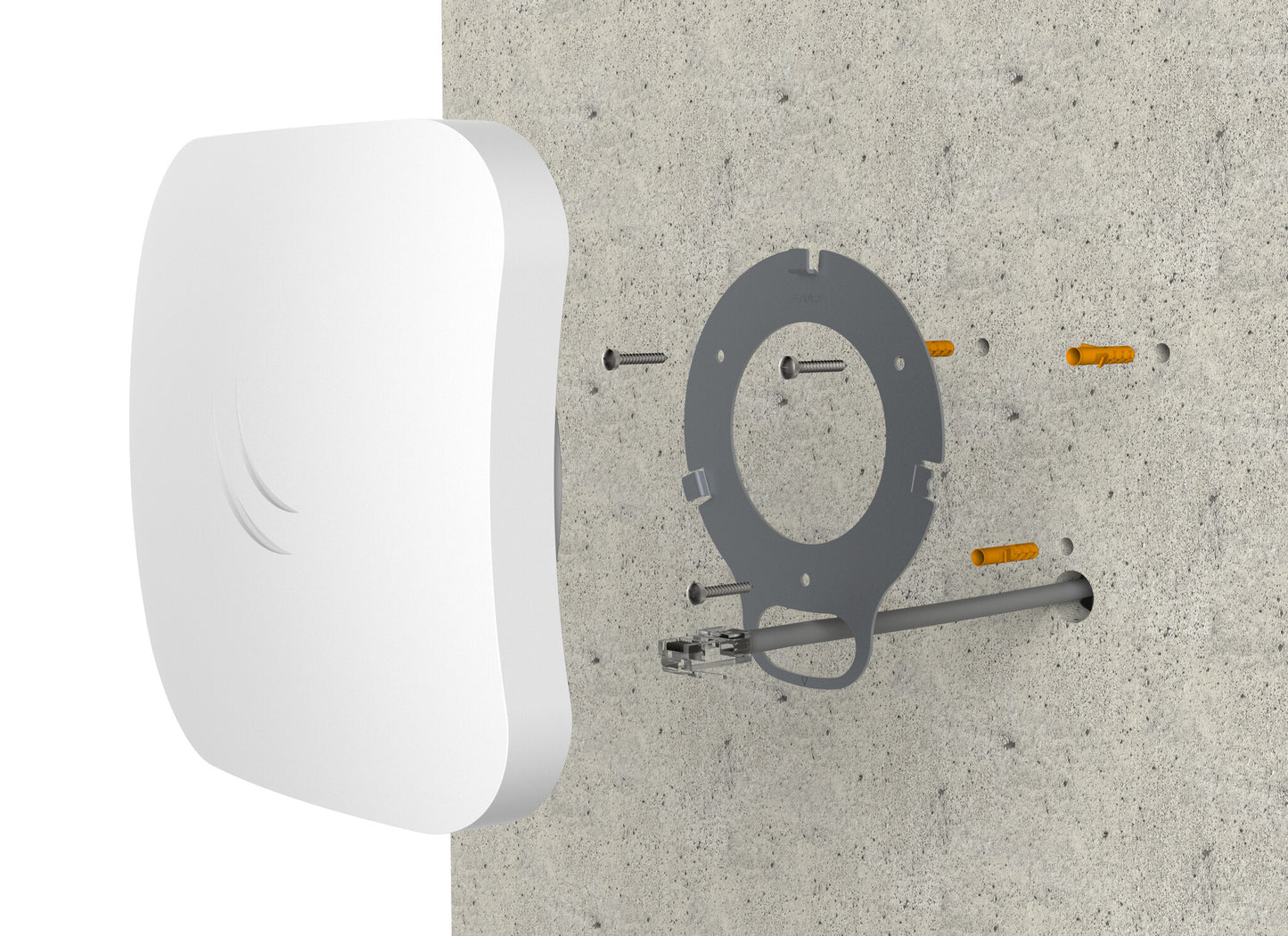

Placement Ceiling, Wall
Product colour White
LED indicators Yes
Certification CE, FCC, IC, EAC, ROHS
Internal No
Antenna
Antenna type Internal
Antenna features Integrated antenna
Antennas quantity 4
Antenna gain level (max) 2.5 dBi
Performance
Built-in processor Yes
Processor model IPQ4018
Processor frequency 716 MHz
Internal memory 128 MB
Flash memory 16 MB
Operating system installed RouterOS
Weight & dimensions
Width 136 mm
Depth 30 mm
Height 136 mm
Packaging content
AC adapter included Yes
PoE adapter included Yes
Mounting kit Yes
Operational conditions
Operating temperature (T-T) -40 - 50 °C
Logistics data
Harmonized System (HS) code 85176990
