Mikrotik

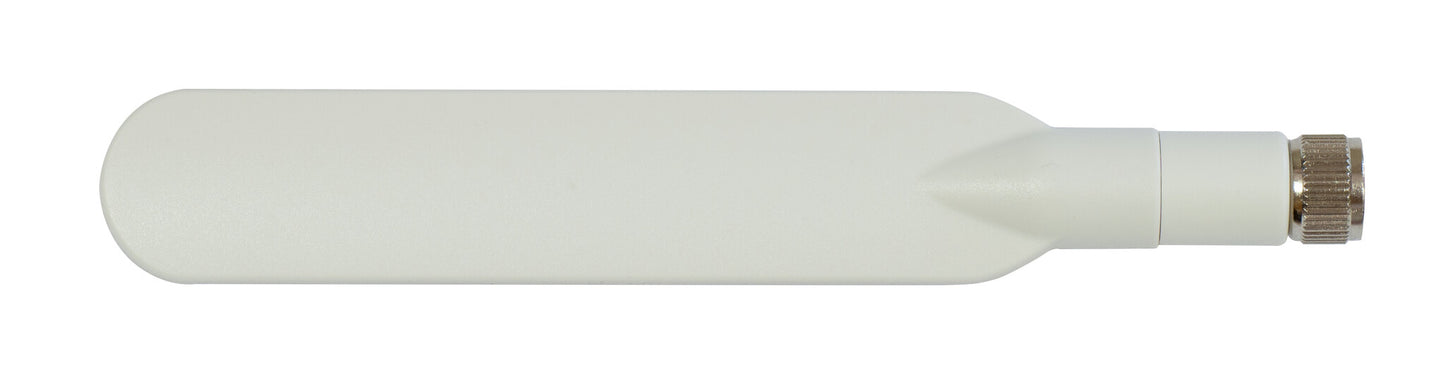

Mikrotik 2.4Ghz Dipole network antenna Directional antenna RP-SMA 5 dBi

Mikrotik 2.4Ghz Dipole network antenna Directional antenna RP-SMA 5 dBi

ACOMNIRPSMA

£10.92 GBP£9.10 GBP
£0.00 GBP £10.92 GBP£9.10 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

23 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Directional antenna RP-SMA White
  • 5 dBi
  • 2.4 - 2.5 GHz
  • 50 Ω
  • Horizontal polarization Male
2.4GHZ - 2.5GHz, 5.0 dBi, PCB, 360°, IEEE 802.11b/g/n, 50 ohms, V.S.W.R. 2.0:1, White

Now we offer 2.4Ghz 5dBi Dipole antennas with RPSMA connectors! Take BaseBox2 and simply attach two of those antennas on connectors of BaseBox2 to have 2x2 MIMO 2.4Ghz AP! By this you can have "2.4Ghz OmniTik", ideal for Outdoor Campus areas, for example, campings or trailer parks. Antennas are waterproof, so you can use BaseBox without top cover if both antennas are properly attached.

Performance
Horizontal beam width (2.4 GHz) 360°
Impedance 50 Ω
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency band 2.4 - 2.5 GHz
Antenna gain level (max) 5 dBi
Features
Product colour White
Voltage Standing Wave Ratio (VSWR) 2.0:1
Polarization Horizontal polarization
Antenna connector type RP-SMA
Connector gender Male
Antenna type Directional antenna
Operational conditions
Storage temperature (T-T) -30 - 85 °C
Operating temperature (T-T) -30 - 85 °C
Weight & dimensions
Weight 30 g
Depth 147 mm
Packaging content
Quantity per pack 1 pc(s)
