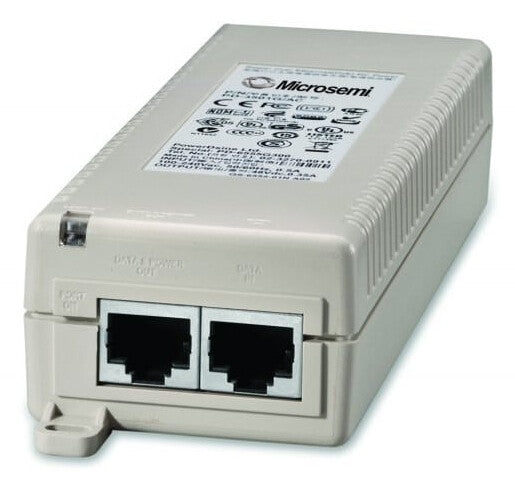

Microsemi PD-3501G Gigabit Ethernet 48 V

Microsemi PD-3501G Gigabit Ethernet 48 V

£45.16 GBP
£45.16 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

PD-3501G/AC-UK

Low stock: 5 left

  • Safe and reliable power over existing Ethernet infrastructure
  • Stackable and compact
  • Legacy PoE Support
  • Plug-and-play installation
2 x RJ-45 Port, 10/100/1000 Mbps, 802.3af, 350 g

Microchip’s PD-3501G singleport PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices. The compact and affordable PD3501G provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered. With plug-and-play installation, the PD-3501G can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Features
Product colour Grey
Plug and Play Yes
LED indicators Yes
Safety UL/IEC/EN 62368-1
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) voltage 48 V
AC adapter input voltage 100 - 240 V
AC adapter frequency 50/60 Hz
Input current 0.43 A
Power over Ethernet (PoE) power per port 15.4 W
Operational conditions
Operating temperature (T-T) 14 - 104 °F
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating altitude -304.8 - 3048 m
Weight & dimensions
Weight 350 g
Dimensions (WxDxH) 51.8 x 140 x 33.5 mm
Packaging content
Number of products included 1 pc(s)
Technical details
Compliance certificates WEEE, CE
