Microconnect

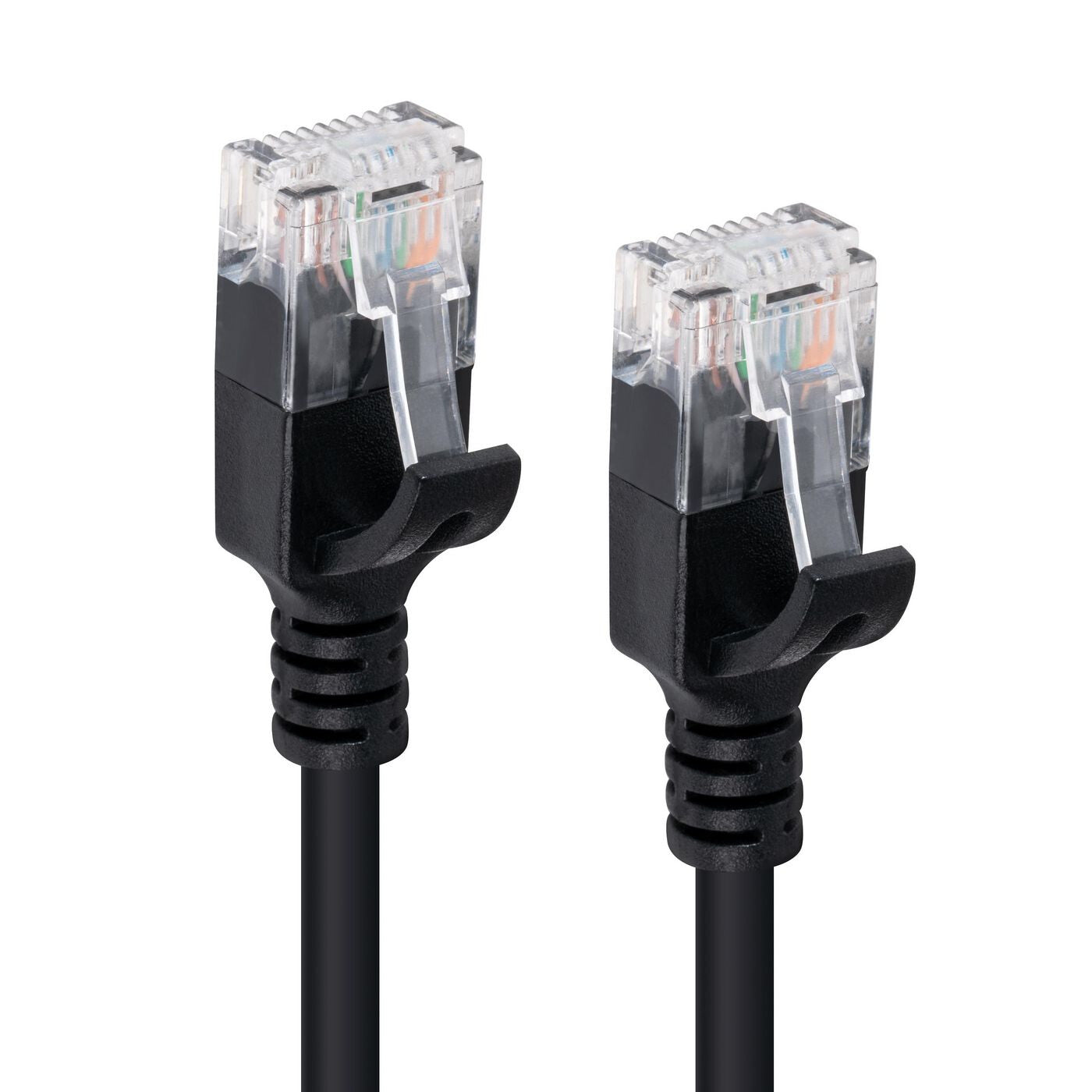

Microconnect V-UTP6A0015S-SLIM networking cable Black 0.15 m Cat6a U/UTP (UTP)
Microconnect V-UTP6A0015S-SLIM networking cable Black 0.15 m Cat6a U/UTP (UTP)
Couldn't load pickup availability
SKU:V-UTP6A0015S-SLIM
3182 in stock
- To order a full box, please select the following quantity: 600 pcs.
- LSZH (Low Smoke Zero Halogen)
- CAT6a tested up to 500 MHz
- with snagless
- with gold-plated pins
- low cable diameter: 3,6mm
- very flexible, very easy to move to save space behind baseboards
- Support PoE++
CAT6a slim cables is an updated version of CAT6 slim cables. These are perfect for installations where you need to save space in IT Racks and Cabinets. They cables are thinner and very flexible which provides the installer a better accessibility and quick and easy switching. Furthermore it improves the Air-Flow, and thereby reducing the risk of down-time. All the cables are tested tested up to 500Mhz / 1000 Mbps (CAT6a standard) and are backwards compatible with CAT6, CAT5e and CAT5 cables. Each cable are manufactured with a snaggles with prevents the connector do be damaged when you install the cable through an installation with very less space.
| Features | |
|---|---|
| Certification | RoHS |
| Snagless cable boot | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) | Yes |
| Frequency | 500 MHz |
| Data transfer rate | 10000 Mbit/s |
| AWG wire size | 28 |
| Conductor material | Copper |
| Conductor type | Stranded |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | Black |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6a |
| Cable length | 0.15 m |
| Weight & dimensions | |
|---|---|
| Weight | 2 g |
| Outer diameter | 3.6 mm |
| Packaging data | |
|---|---|
| Package weight | 15 g |
| Package height | 13 mm |
| Package depth | 120 mm |
| Package width | 160 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Warranty period | 25 year(s) |
