Microconnect POEINJ-60W PoE adapter Gigabit Ethernet 55 V
Microconnect POEINJ-60W PoE adapter Gigabit Ethernet 55 V
SKU:POEINJ-60W
178 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Active PoE injector

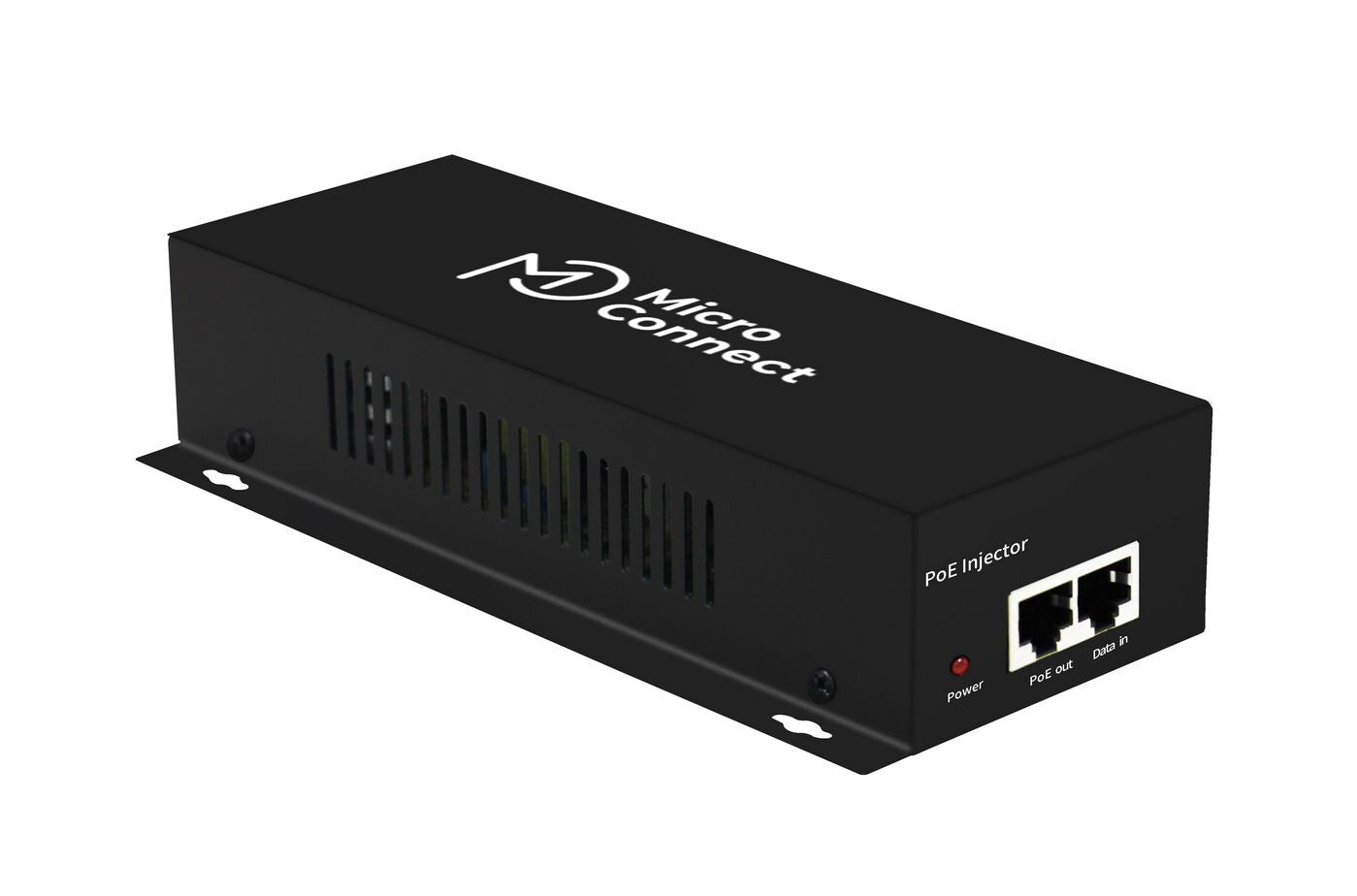

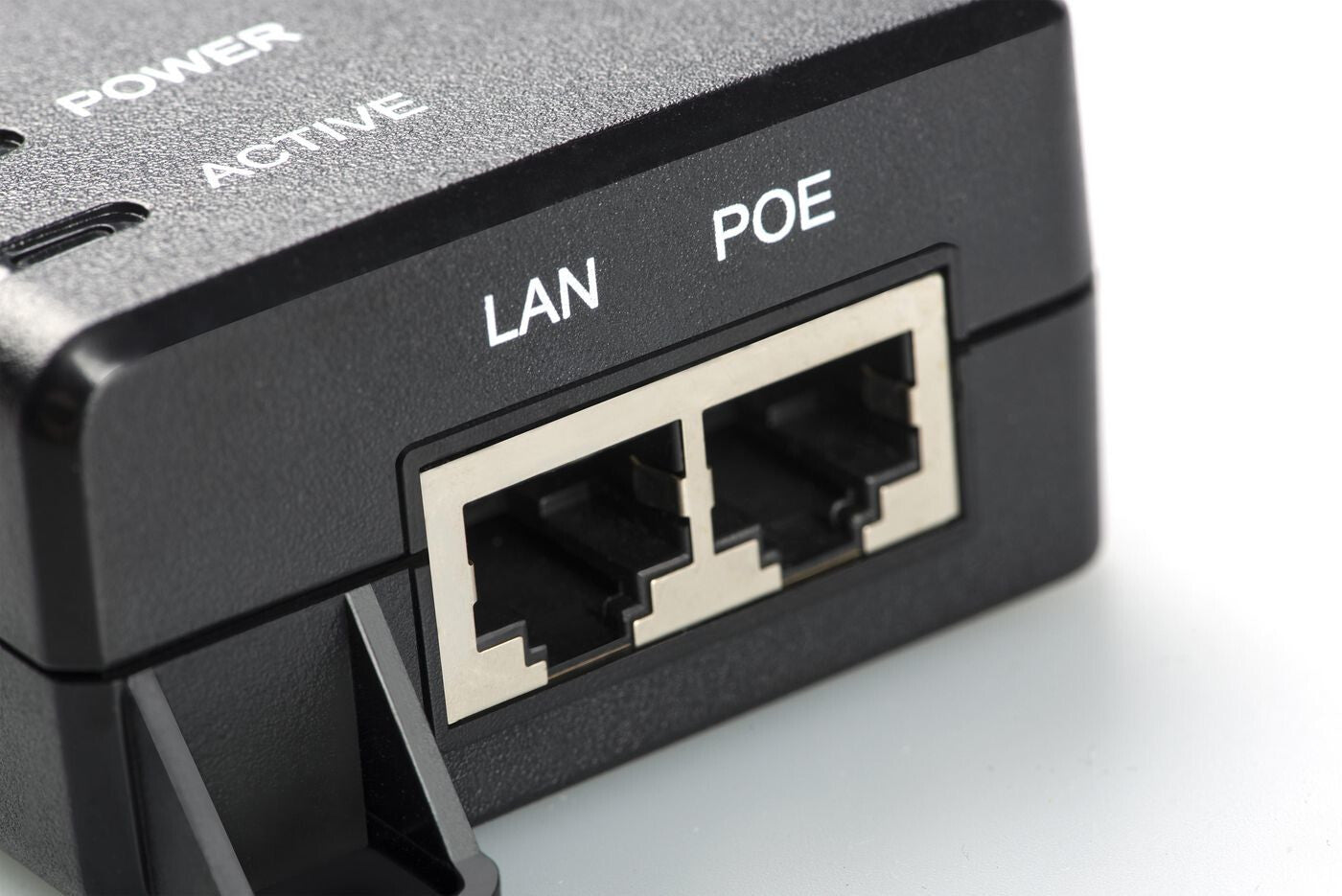

The POEINJ-60W is a single-port Gigabit PoE (Power over Ethernet) device with two RJ45 ports, one port for the Ethernet data input, another port for the integrated data and power supply output. Since the power supply itself does not have the data switch function, it needs to work together with a Network switch. It mixes the data of the network switch with the power supply, and transmitsthe data and the power supply to the remote powered terminal through the network cable. This can solve the layout restrictions due to the engineering power line. The device can provide PoE power supply to those Ethernet devices conforming to the IEEE802.3af/atPoE++ international standard, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras etc. It provides efficient engineering solutions for locations where power is not available at the remote end or where the use of Ethernet cable power increase system reliability and simplify equipment installation.
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3af |
| Features | |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Pin assignment & polarity | 4/5(+),7/8(-)and 3/6(-),1/2(+) |
| Power protection features | Over current |
| International Protection (IP) code | IP40 |
| Certification | CE, FCC, UL |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 55 V |
| AC adapter input voltage | 100 - 240 V |
| DC output voltage | 55 V |
| Power over Ethernet (PoE) power per port | 60 W |
| Suitable for use in country/location | Europe |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 65.8 mm |
| Depth | 33.5 mm |
| Height | 145.5 mm |
| Weight | 380 g |
| Packaging data | |
|---|---|
| Package width | 168 mm |
| Package depth | 141 mm |
| Package height | 54 mm |
| Package weight | 456 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
