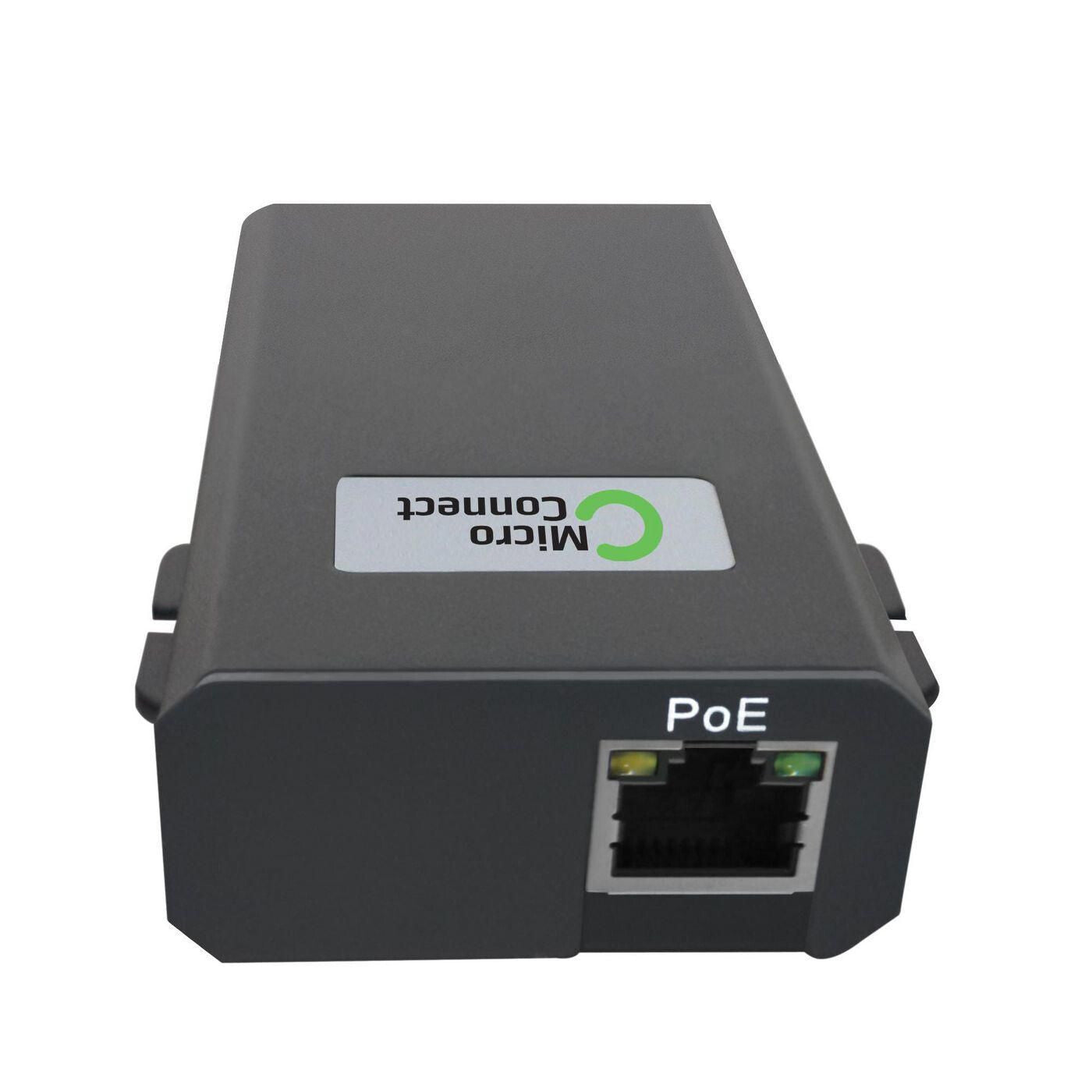

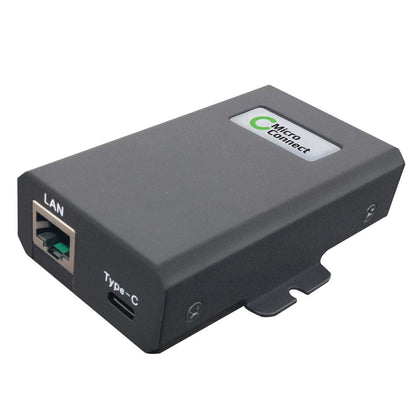

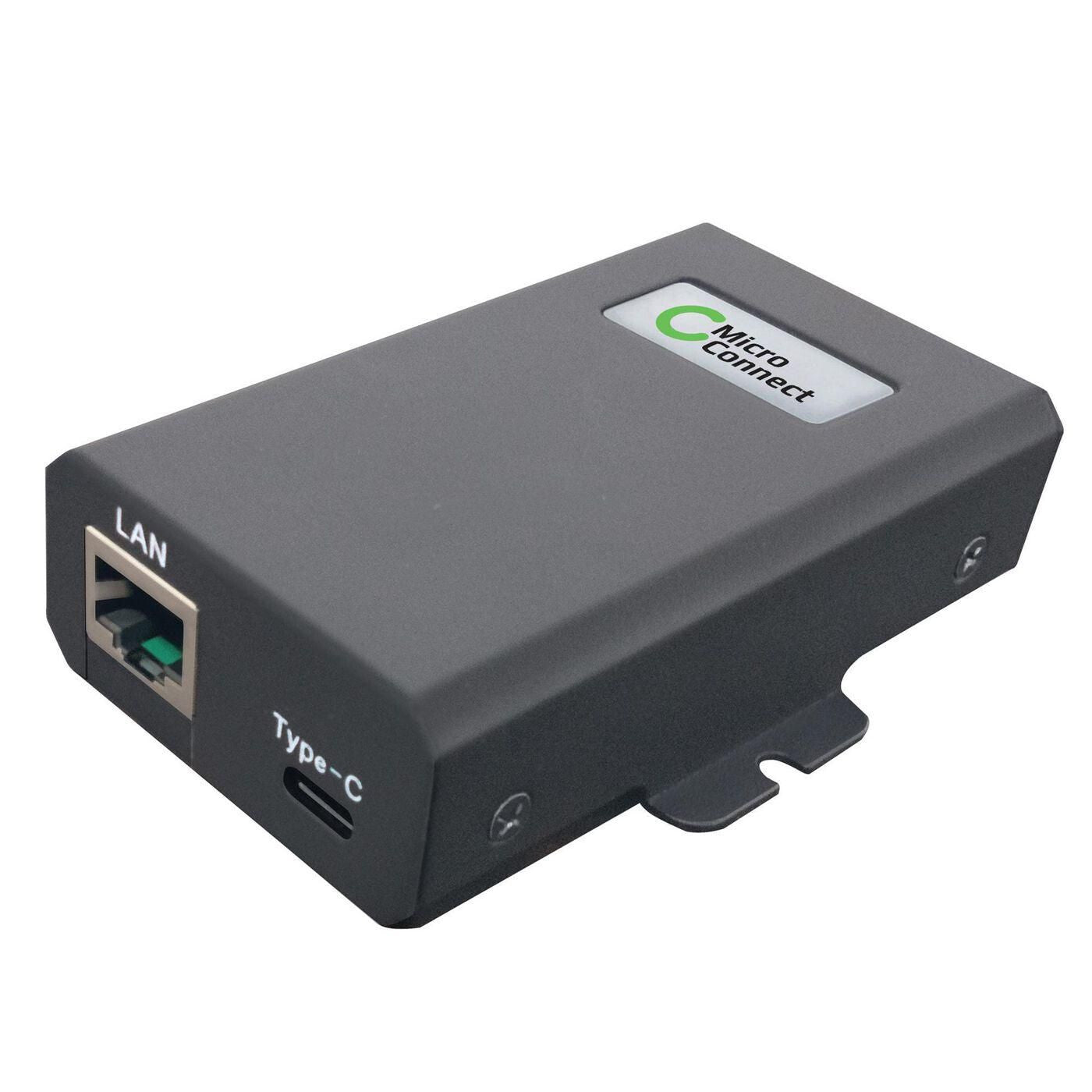

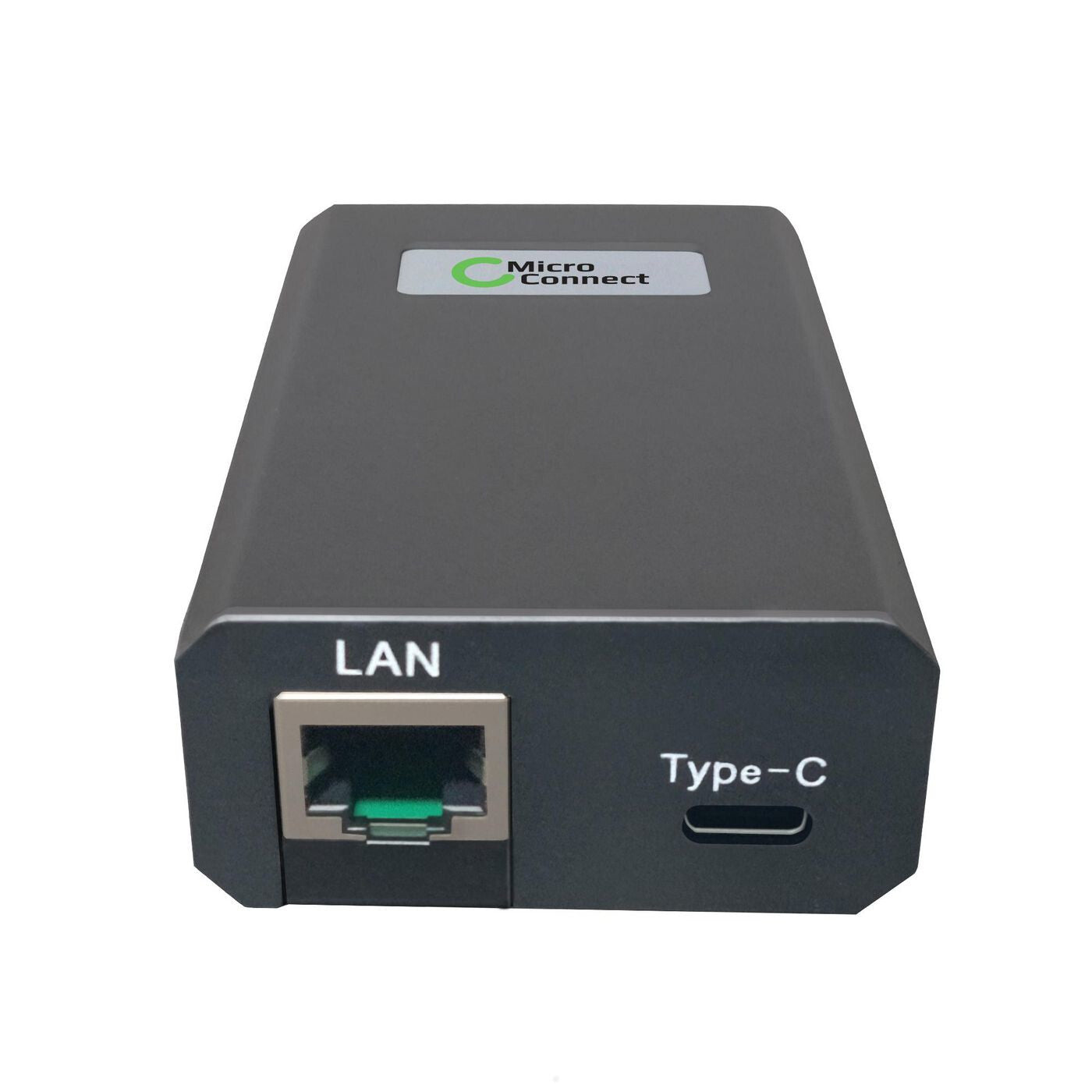

Microconnect POEINJ-25W-USBC PoE adapter Gigabit Ethernet

Microconnect POEINJ-25W-USBC PoE adapter Gigabit Ethernet

£43.46 GBP
£43.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

POEINJ-25W-USBC

359 in stock

  • Designed with PVP, OCP, SCP
  • Designed for Computers, iPads, MacBook, Google Wifi etc.
  • Material : Black Metal
  • Active
Gigabit PoE to USB-C Converter 25W

POEINJ-25W-USBC is an indoor PoE rated networking converter, special convert power&data from PoE to Type-C devices. It is with 1 PoE port for 802.3bt standard input and 1 Type-C port for power output and 1 RJ45 port for data output. The dataspeed is 10/100/1000Mbps (Gigabit).This converter ouput total 25W for Type-C PDs, and the voltage output from 5V-20V base on the required of your Type-C PDs. It is designed with OVP,OCP, SCP, then worked safty for the Type-C PDs, such as computers, IPad, Macbook, Google Wifi etc.

Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 1000 Mbit/s
Cabling technology 10/100/1000
Power over Ethernet (PoE) Yes
Cable types supported Cat5
Networking standards IEEE 802.3
Features
Product colour Black
Wall mountable Yes
Easy to install Yes
Rack mounting Yes
Plug and Play Yes
Surge protection Yes
Maximum operating distance 100 m
LED indicators Yes
Power protection features Over current
Certification CE, FCC, UL & RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
DC-in jack Yes
Other connection USB Type C
Power
Output power 25 W
AC adapter input voltage 100 - 240 V
Output current 3 A
Total Power over Ethernet (PoE) budget 25 W
Power plug type Type F
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -20 - 70 °C
Weight & dimensions
Width 160 mm
Depth 50 mm
Height 180 mm
Weight 380 g
Packaging data
Package width 160 mm
Package depth 50 mm
Package height 180 mm
Package weight 530 g
Packaging content
Number of products included 1 pc(s)
