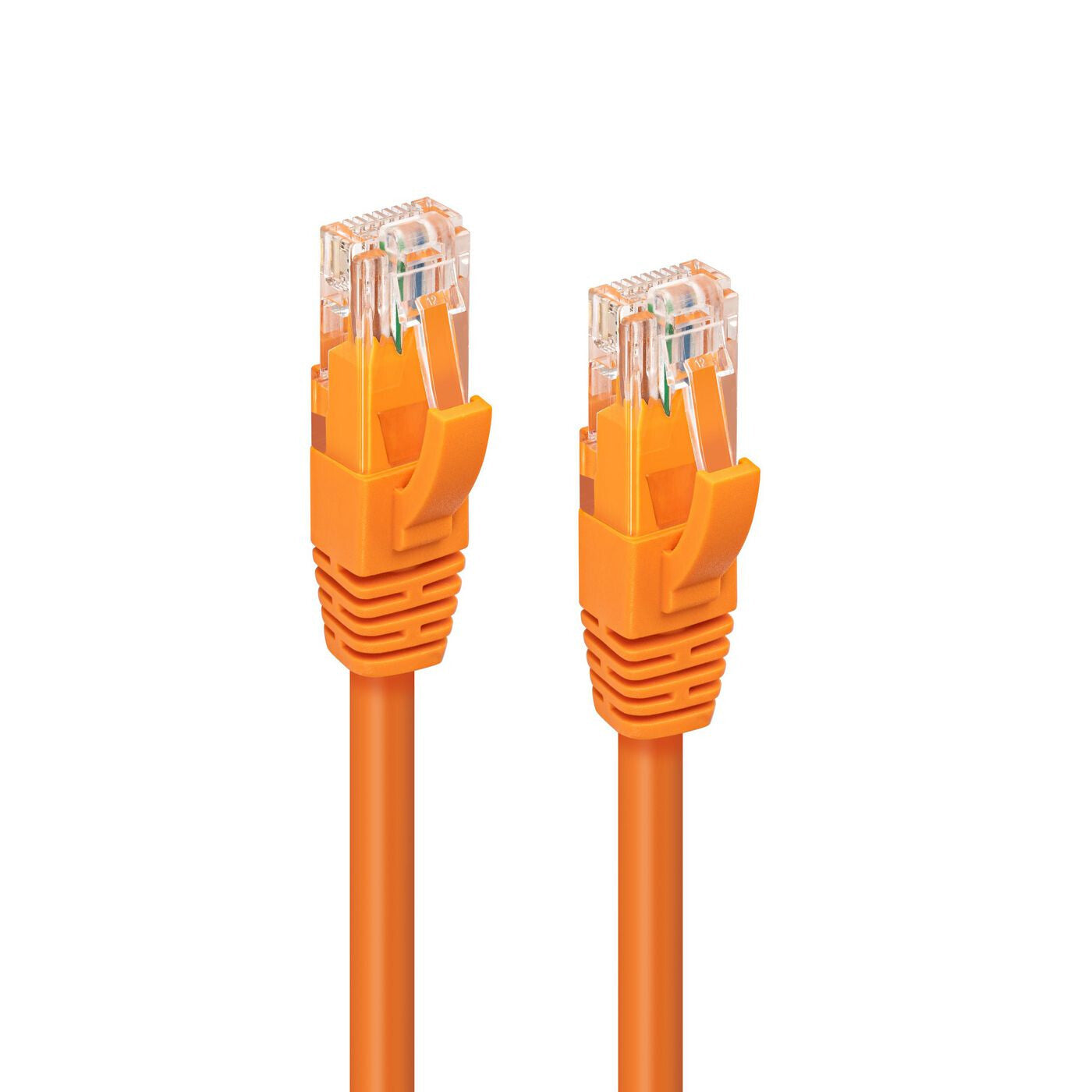

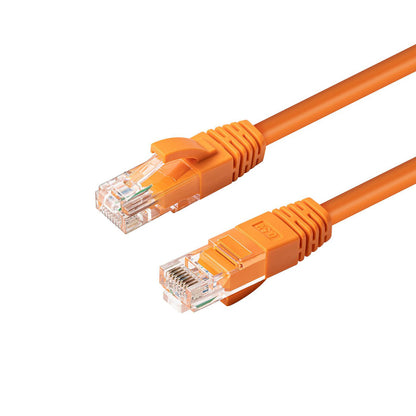

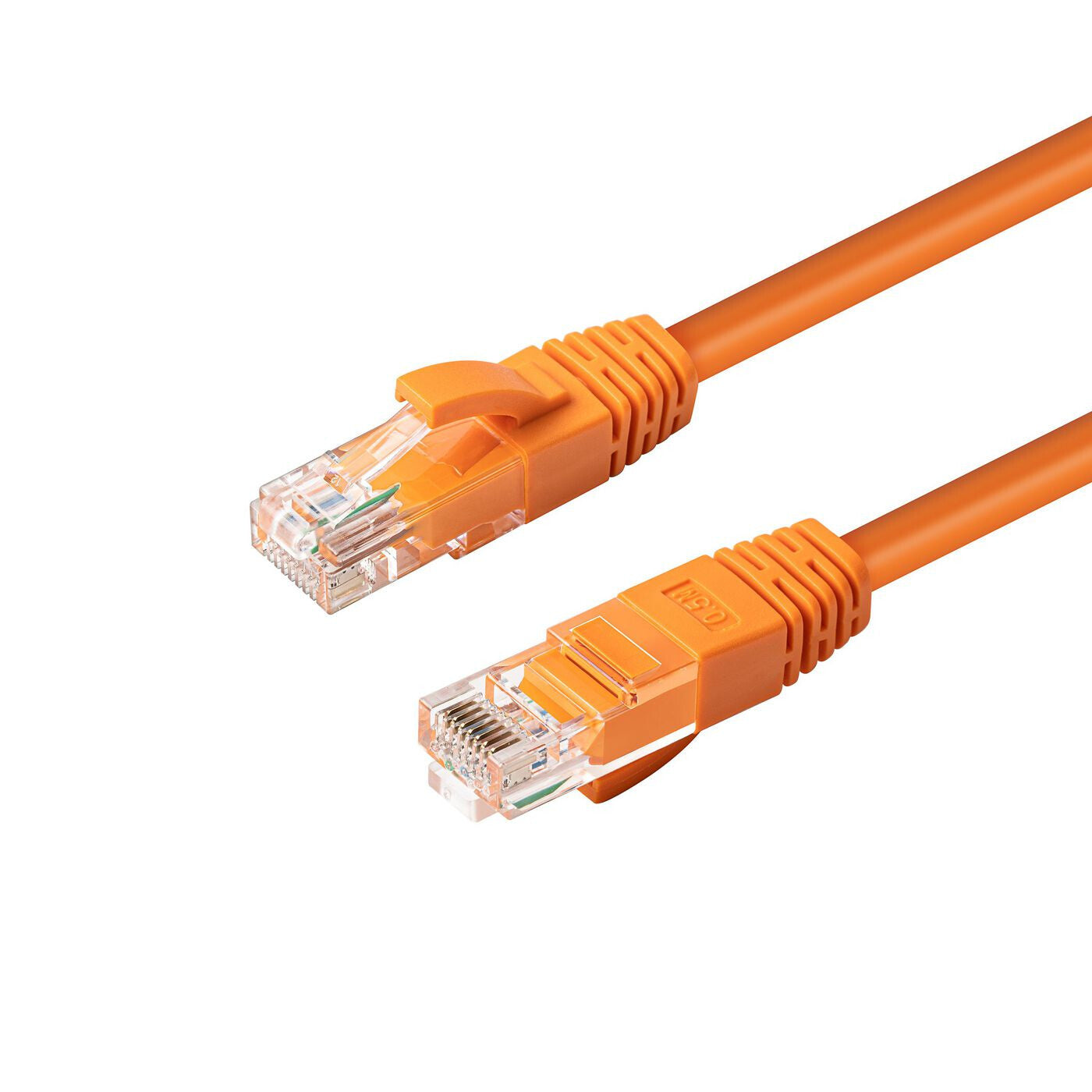

Microconnect MC-UTP6A15O networking cable Orange 15 m Cat6a U/UTP (UTP)

Microconnect MC-UTP6A15O networking cable Orange 15 m Cat6a U/UTP (UTP)

£12.17 GBP
£12.17 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MC-UTP6A15O

Low stock: 10 left

  • Fluke CAT6A Channel Link Pass
  • PoE+ ready
  • LSZH – Low Smoke Zero Halogen
  • Snagless hood
  • Length marking on boot
CAT6A UTP 15m Orange LSZH

The MicroConnect CAT6a Patch Cable is ideal for use in demanding environments where 10Gbit and bandwidth up to 500Mhz is required. There are 50u´ RJ45 connectors to provide a better connection, latch protection to protect the clip from breaking and meter marking on the boot to easy identify the length of the cable.

Features
Certification RoHS, CE
Country of origin China
Plug and Play Yes
Snagless cable boot Yes
Molded cable boot Yes
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet (PoE) Yes
Frequency 500 MHz
Data transfer rate 10000 Mbit/s
AWG wire size 26/7
Conductor material Copper
Conductor type Stranded
Cable shape Round
Jacket material Low smoke zero halogen (LSZH)
Connector shielding Yes
Connector contacts plating Gold
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector 2 RJ-45
Connector 1 RJ-45
Product colour Orange
Cable shielding U/UTP (UTP)
Cable standard Cat6a
Cable length 15 m
Weight & dimensions
Weight 400 g
Depth 1300 mm
Packaging data
Package weight 508 g
Package height 59 mm
Package depth 202 mm
Package width 248 mm
Quantity per pack 1 pc(s)
Technical details
Doesn't contain Halogen
Compliance certificates RoHS
Logistics data
Export Control Classification Number (ECCN) EAR99
