Microconnect MC-USB3.0-F3B1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

Microconnect MC-USB3.0-F3B1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

£16.52 GBP
£16.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MC-USB3.0-F3B1

11 in stock

  • Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
  • Compliant to Universal Serial Bus 2.0 Specifications
  • Compliant to extensible Host Controller Interface Specification Revision 1.0
  • Compliant with PCI Express base specification 2.0
  • Support Legacy USB Function, Four Down-stream ports Support Super-Speed(SS)
  • High-Speed (HS),Full-Speed (FS) and Low-Speed (LS)
  • Max. 5V/900mA power output to each USB 3.0 Port
  • 4-pin power connector for extra power
  • Fully plug ,play and hot plug compatible

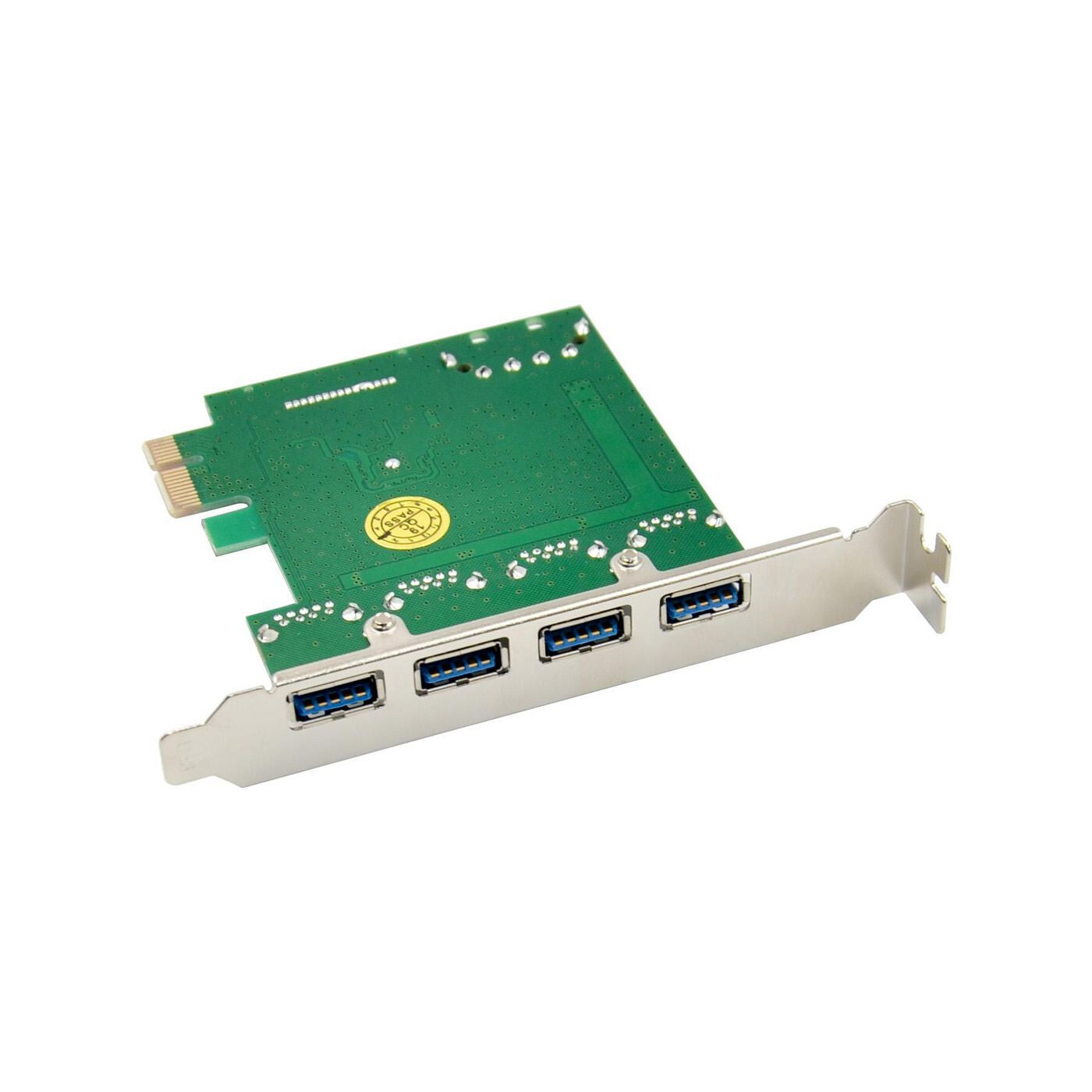

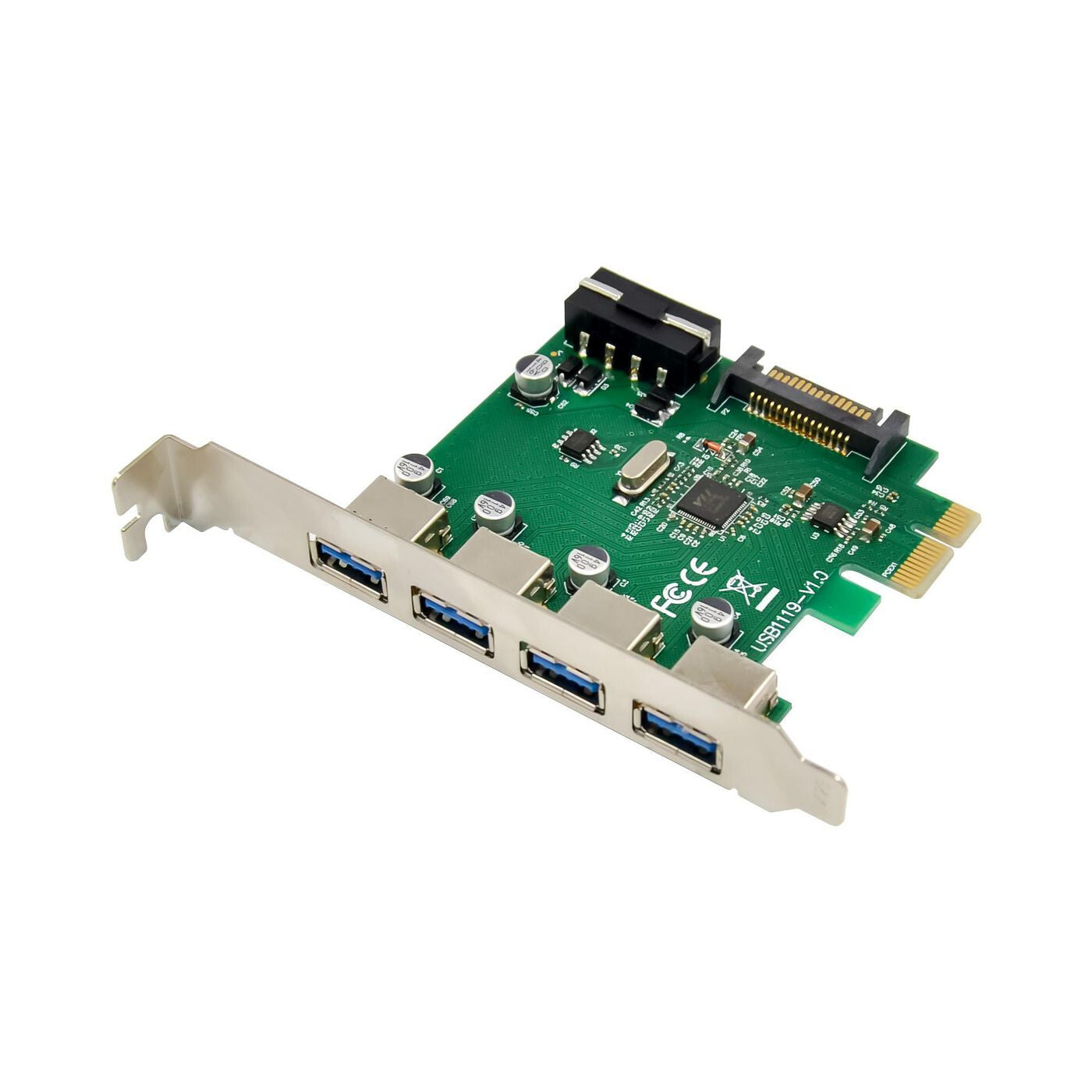

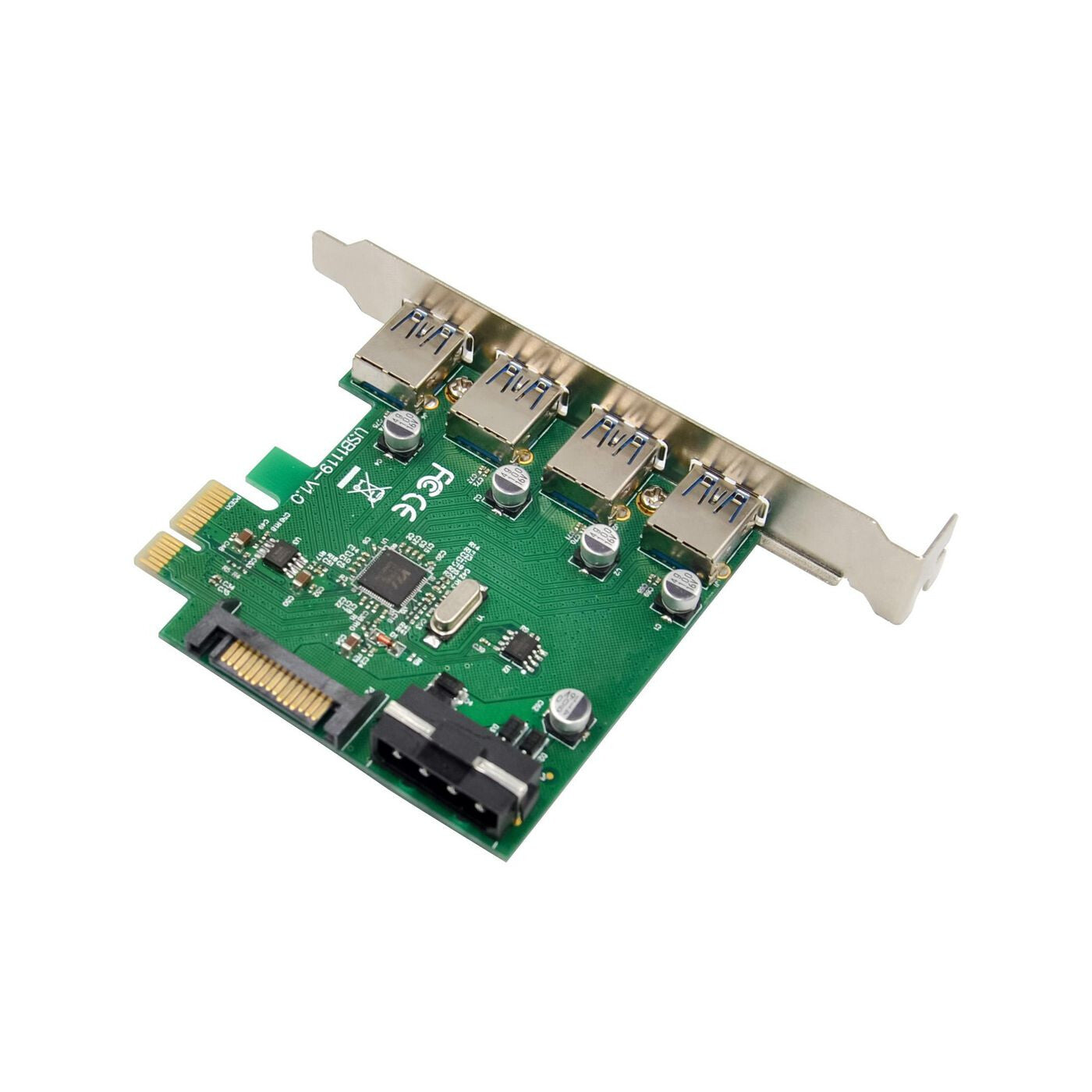

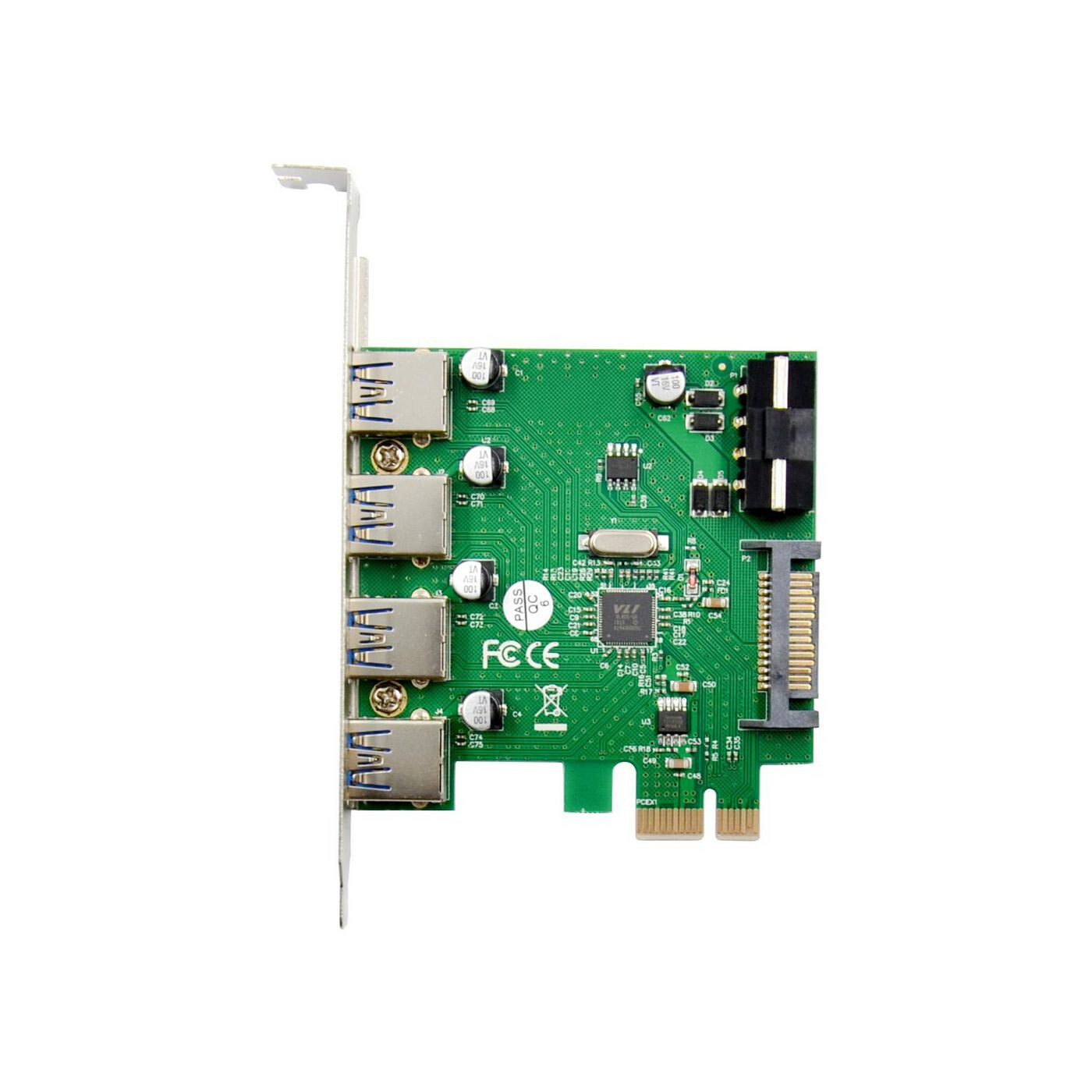

PCIe USB3.0 4 Ports Expansion Card VL805

This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used.
System Requirements
Linux/ Win7/ Win8/ Win8.1/ Win10 32bit or 64 bit / Windows® XP/ Vista

Ports & interfaces
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Output interface USB 3.2 Gen 1 (3.1 Gen 1)
Host interface PCIe
Design
Internal Yes
Features
Bandwidth 5 Gbit/s
Chipset VIA Labs VL805
Power
Output current 0.9 A
Output voltage 5 V
Operational conditions
Operating temperature (T-T) 5 - 35 °C
System requirements
Windows operating systems supported Yes
Weight & dimensions
Weight 90 g
Depth 70 mm
Width 80 mm
Packaging data
Package weight 94 g
Package height 34 mm
Package depth 130 mm
Package width 174 mm
Drivers included Yes
Quantity per pack 1 pc(s)
