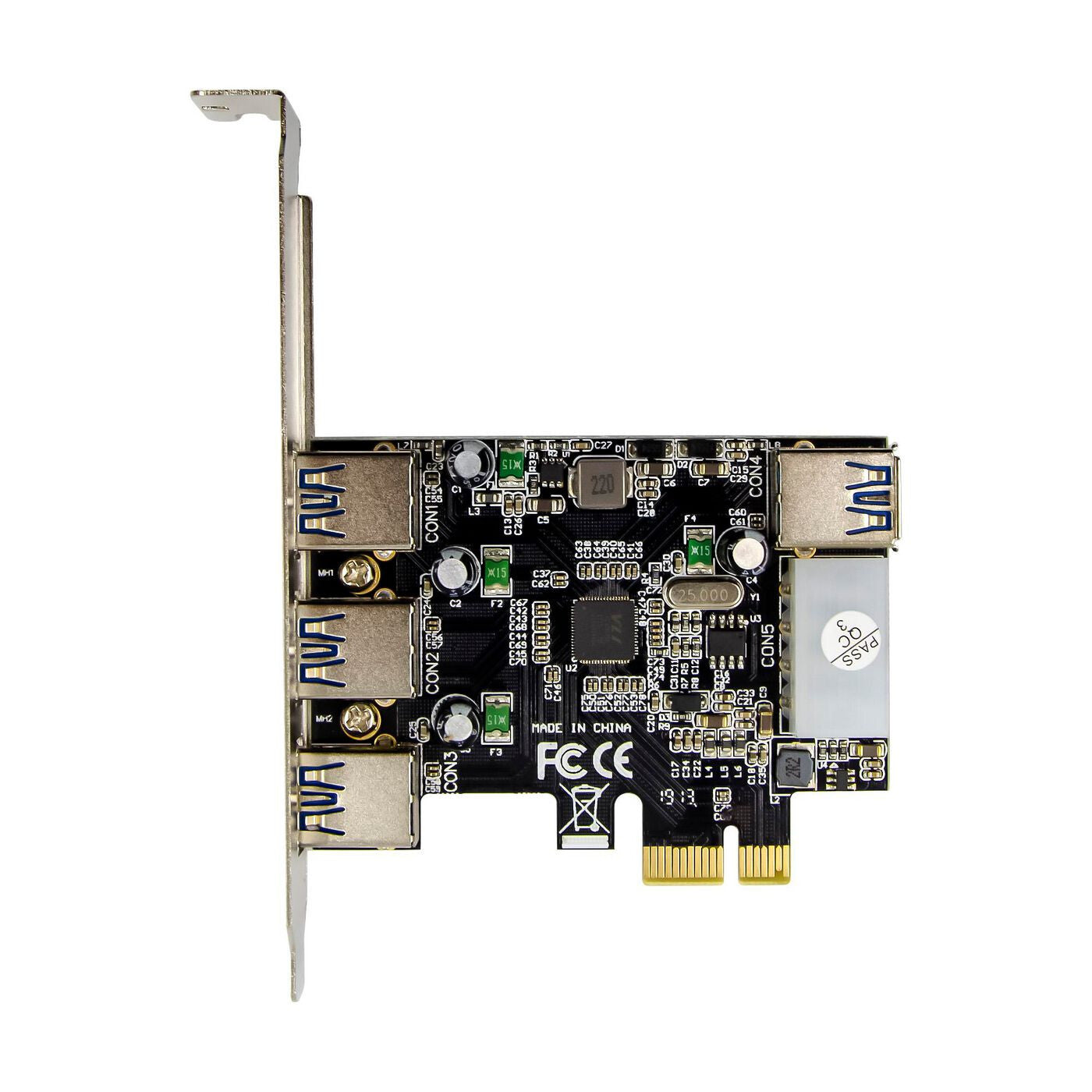

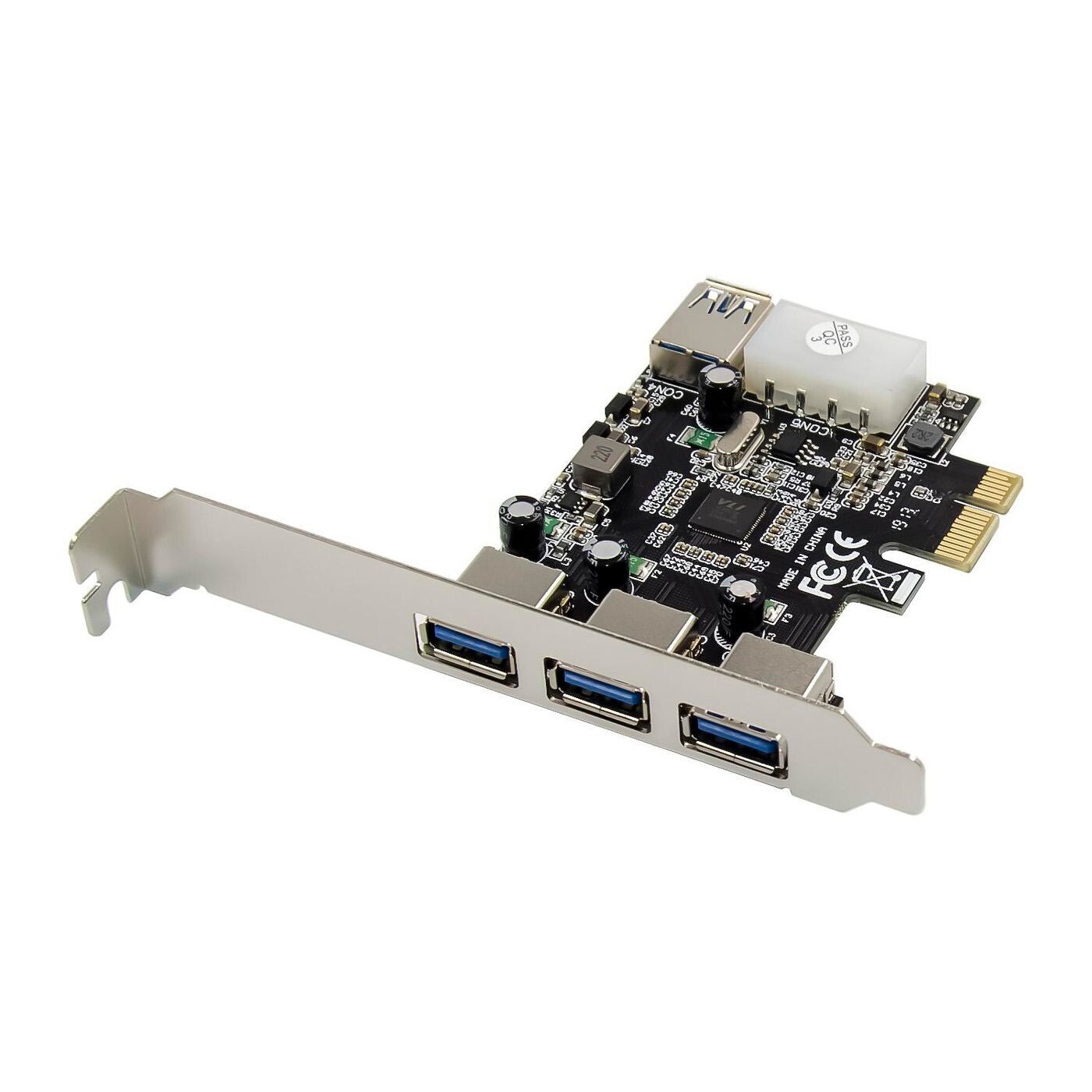

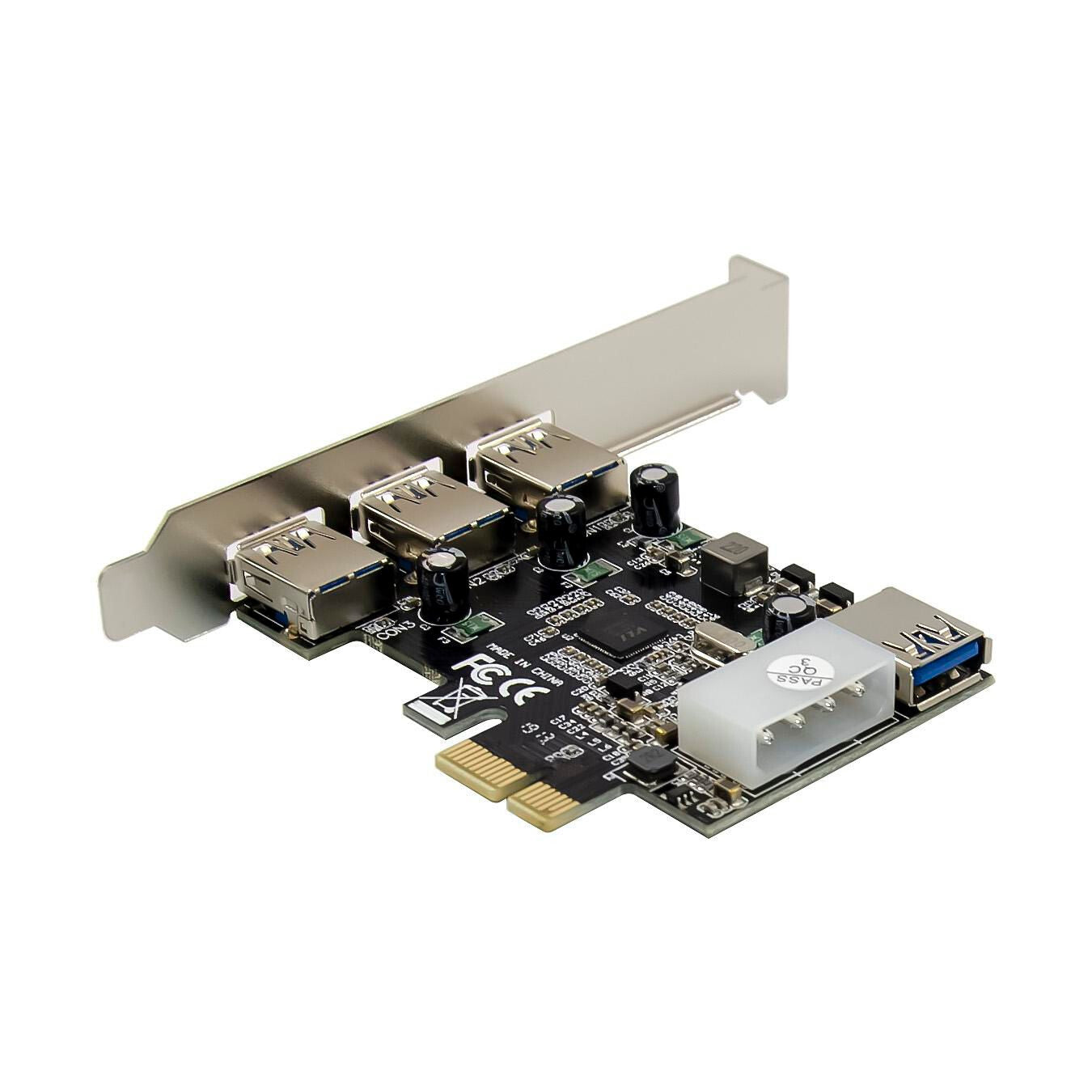

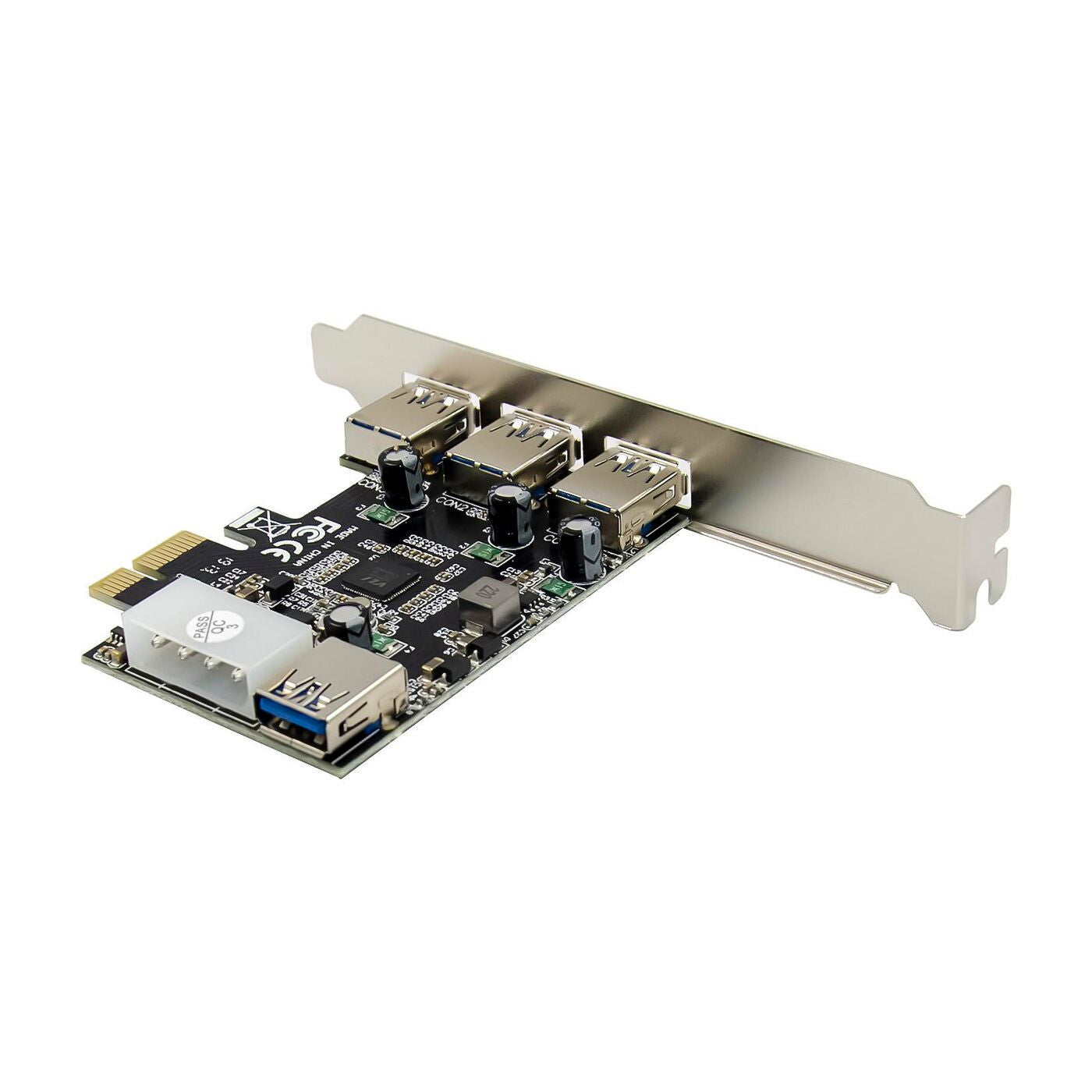

Microconnect MC-USB3.0-F2B2-V2 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

Microconnect MC-USB3.0-F2B2-V2 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

£20.14 GBP
£20.14 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MC-USB3.0-F2B2-V2

22 in stock

  • Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
  • Compliant to Universal Serial Bus 2.0 Specifications
  • Compliant to eXtensible Host Controller Interface Specification Revision 1.0
  • Compliant with PCI Express base specification 2.0
  • Support Legacy USB Function, Four Down-stream ports Support Super-Speed(SS) High-Speed(HS),Full-Speed(FS) and Low-Speed(LS)
  • Max. 5V/900mA power output to each USB 3.0 Port
  • 4-pin power connector for extra power
  • Fully plug ,play and hot plug compatible
PCIe USB3.0 3+1 Ports Expansion Card VL805

This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. low profile bracket included.

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Output interface USB 3.2 Gen 1 (3.1 Gen 1)
Host interface PCIe
Design
Internal Yes
Features
Bandwidth 5 Gbit/s
Chipset Via VL805
Power
Output current 0.9 A
Output voltage 5 V
Operational conditions
Operating temperature (T-T) 5 - 35 °C
System requirements
Windows operating systems supported Yes
Weight & dimensions
Weight 66 g
Depth 67 mm
Width 90 mm
Packaging data
Package weight 76 g
Package height 28 mm
Package depth 112 mm
Package width 145 mm
Quantity per pack 1 pc(s)
