Microconnect MC-USB-NEC2.0 interface cards/adapter Internal USB 2.0

Microconnect MC-USB-NEC2.0 interface cards/adapter Internal USB 2.0

MC-USB-NEC2.0

£17.16 GBP£14.30 GBP
£0.00 GBP £17.16 GBP£14.30 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 6 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • External 4 x USB ,Internal 1 x USB
  • Compliant with Universal Serial Bus Specification Revision 2.0
  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
  • Compliant with Enhanced Host Controller Interface Specification for USB Rev.1.0
  • Root hub with 5(max)downstream facing ports which are shared by OHCI and EHCI host controller cores
  • 32-bit 33MHz host interface compliant to PCI Specification R2.2
  • All downstream facing ports can handle high-speed(480Mbps).full-speed(12Mbps).and low-speed(1.5Mbps) transaction.
  • Supports PCI-Bus Power Management Interface Specification release 1.1
  • Supports OS: Windows 98se/me/2000/sever 2003/Vista/sever 2007/Win7/Win8, Linux, Mac
PCI USB 2.0 4+1 Expansion card NEC720101

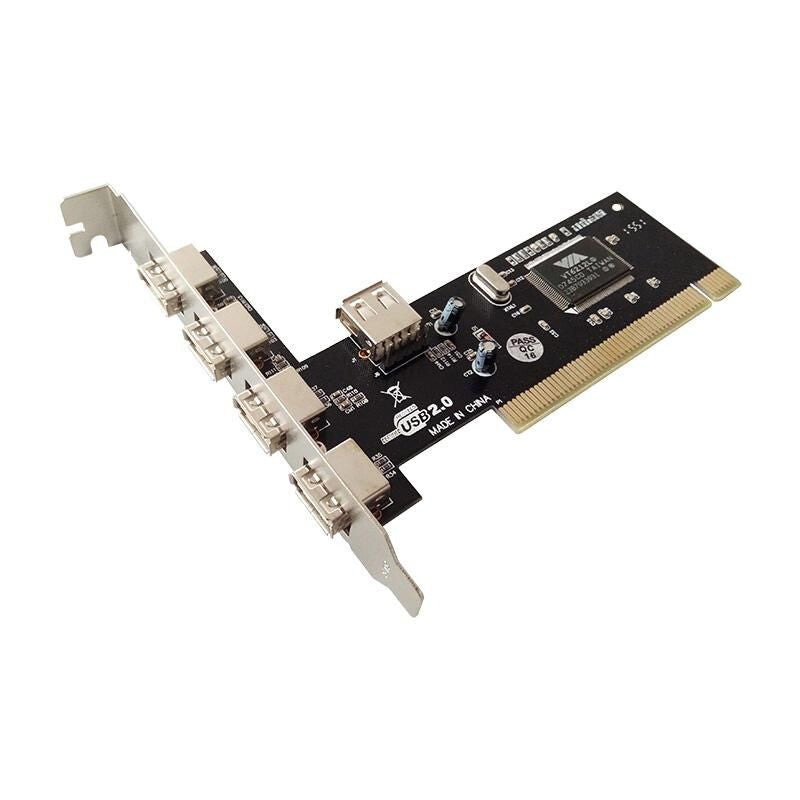

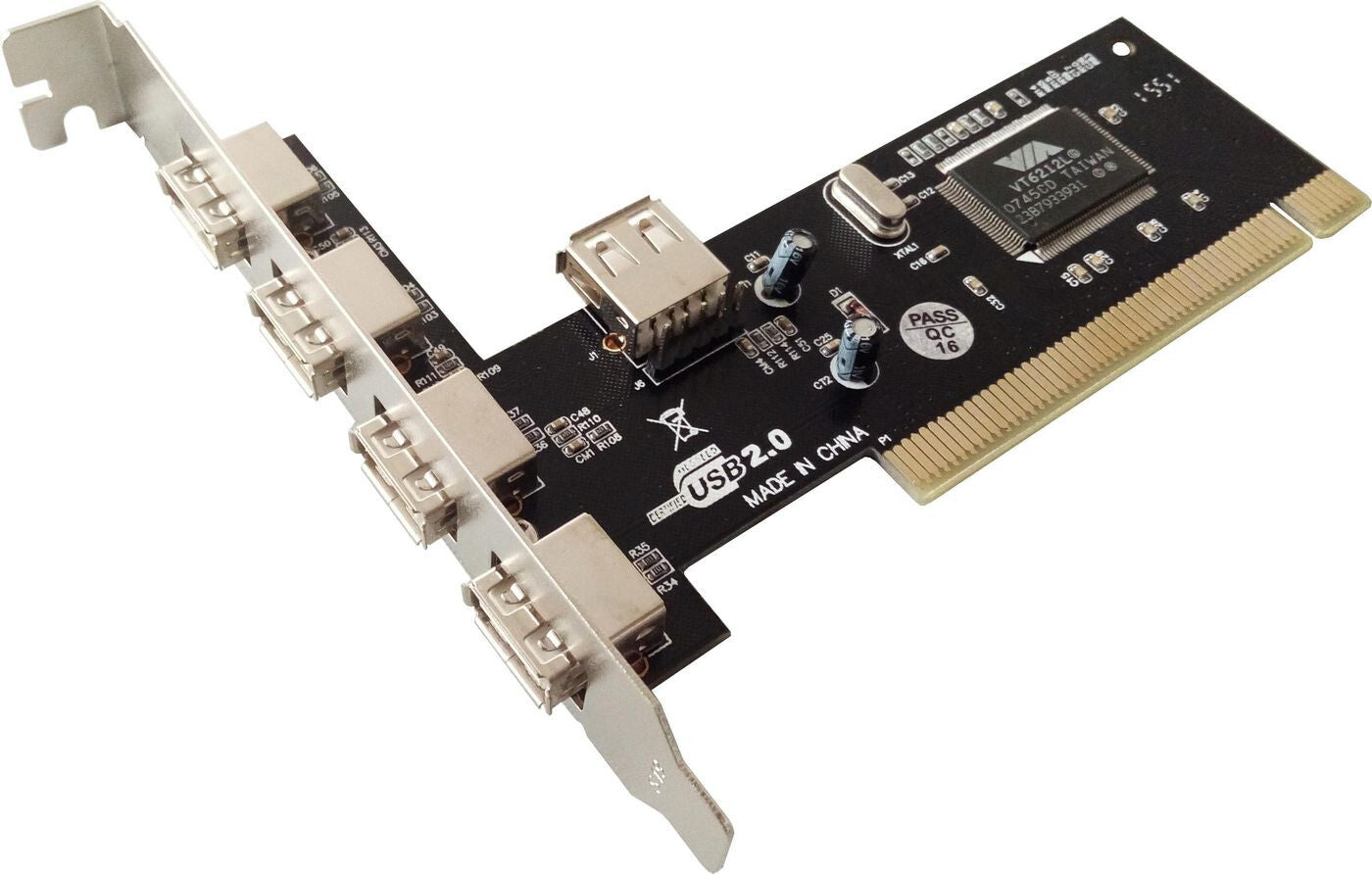

The MC-USB-NEC2.0 is a versatile 4 + 1 Port USB 2.0 PCI Card, designed to expand the connectivity options of your desktop computer. This PCI card adds four external USB 2.0 ports and one internal port, enabling you to connect a variety of peripherals such as printers, scanners, external hard drives, and more. Compliant with USB 2.0 standards, this card supports data transfer rates of up to 480Mbps, ensuring fast and efficient file transfers. MicroConnect brings over 20 years of expertise to this product, offering a reliable and cost-effective solution to enhance your system's capabilities and streamline your workflow with this essential interface adapter. Upgrade your desktop with MicroConnect's quality and experience.

Ports & interfaces
Host interface PCIe
Output interface USB 2.0
USB 2.0 ports quantity 5
Internal USB 2.0 ports quantity 1
Design
Internal Yes
Features
Chipset NEC PD720101
Data transfer rate (max) 480 Gbit/s
Operational conditions
Operating temperature (T-T) 5 - 35 °C
System requirements
Windows operating systems supported Yes
Weight & dimensions
Width 115 mm
Depth 83 mm
Weight 56 g
Packaging data
Quantity per pack 1 pc(s)
Package width 144 mm
Package depth 130 mm
Package height 29 mm
Package weight 66 g
