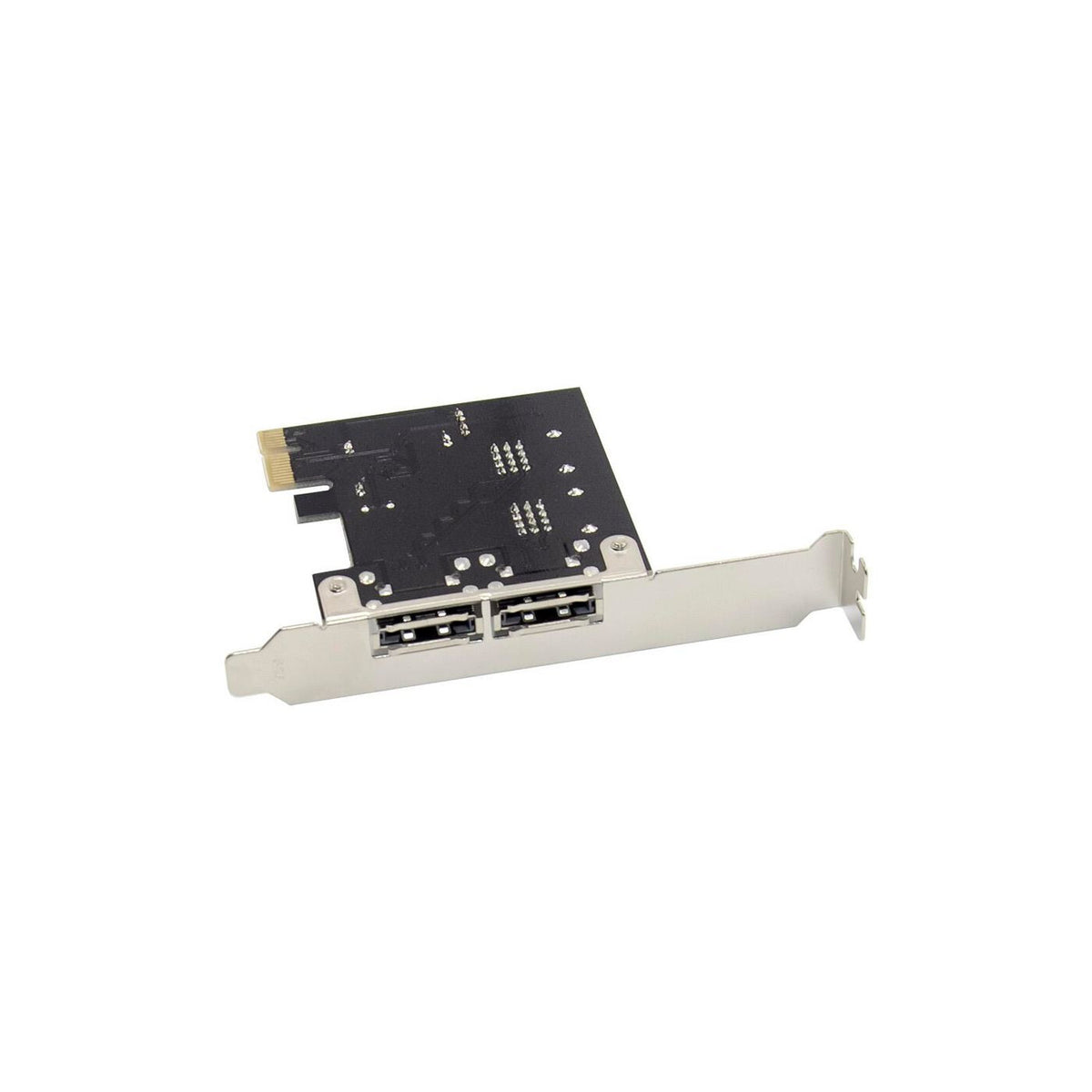

Microconnect MC-SATA3-T4 interface cards/adapter Internal SATA

Microconnect MC-SATA3-T4 interface cards/adapter Internal SATA

MC-SATA3-T4

£27.06 GBP£22.55 GBP
£0.00 GBP £27.06 GBP£22.55 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 5 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Compliant with PCI-Express Specification v2.0 and backward compatibile with PCI-Express 1.x
  • Compliant with Serial ATA Specification 3.0
  • Supports communication speeds of 6.0Gbps, 3.0Gbps and 1.5Gbps
  • Hot plug and Hot Swap
  • Support Native Command Queue (NCQ)
  • Support Port Multiplier
  • Compatible with SATA 6G, 3G and 1.5G Hard Drives
  • Supports Windows® XP/Vista/7 (32/64 bit)
  • Low profile and high profile brackets
PCIe SATA III Expansion Card ASM1061

This board is a single-chip, PCI Express to two SATA Gen III 6Gb/s channels host controller that brings server-class features to the desktop. This board enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Besides, PCI Express 2.0 double the bandwidth of the existing PCI Express bus for faster data throughput. It will enhance system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It also backward compatible with previous generation of PCI Express 1.0 technology.

Ports & interfaces
Host interface PCIe
Output interface SATA
eSATA ports quantity 2
Internal SATA ports quantity 2
Design
Internal Yes
Features
Chipset ASMedia ASM1061
Bandwidth 6 Gbit/s
Power
Output voltage 5 V
Output current 0.9 A
Operational conditions
Operating temperature (T-T) 5 - 35 °C
System requirements
Windows operating systems supported Yes
Weight & dimensions
Width 83 mm
Depth 68 mm
Weight 86 g
Packaging data
Quantity per pack 1 pc(s)
Package width 173 mm
Package depth 130 mm
Package height 35 mm
Package weight 96 g
