Microconnect MC-POEADAPTER-USB-C PoE adapter Fast Ethernet 5 V
Microconnect MC-POEADAPTER-USB-C PoE adapter Fast Ethernet 5 V
SKU:MC-POEADAPTER-USB-C
15 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- CE Certified
- Output up to 5V 2.0A
- LED Light indicators
- 10/100Mbps speed
MC-POEADAPTER-USB-C is a network power adapter
designed based on the IEEE802 .3af standard.
The output is a standard Type-C interface, which can provide 5V/2A power supply.
MC-POEADAPTER-USB-C is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use. The input and output of the device do not exceed the safe voltage of 57V, and there is no need for electric shock protection.
The product has passed the EU CE certification.

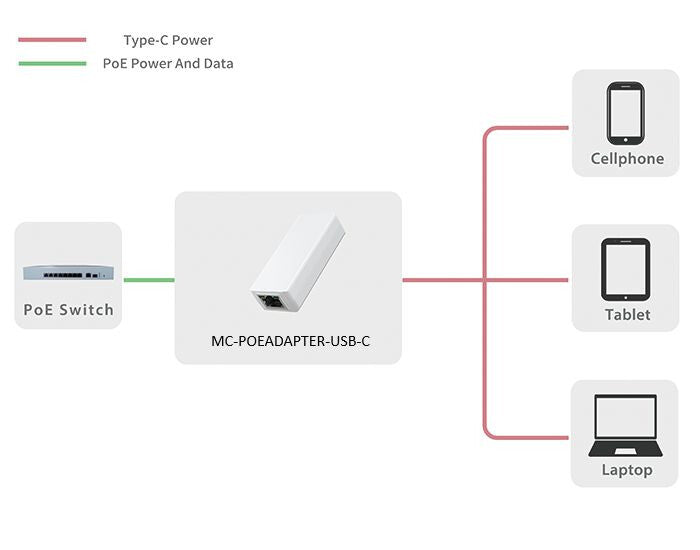

The device needs to be used in a wired network environment that supports IEEE802.3af, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply to low-power mobile devices such as mobile phones, game consoles and tablet computers.
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat5 |
| Networking standards | IEEE 802.3at |
| Features | |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| Easy to install | Yes |
| Plug and Play | Yes |
| Fast charging | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Yes |
| International Protection (IP) code | IP40 |
| Country of origin | China |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| USB Type-C ports quantity | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 5 V |
| Output power | 10 W |
| Input voltage | 44-57 V |
| Output current | 2 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
|---|---|
| Width | 29 mm |
| Depth | 17 mm |
| Height | 65 mm |
| Weight | 38 g |
| Packaging data | |
|---|---|
| Package weight | 50 g |
| Technical details | |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
