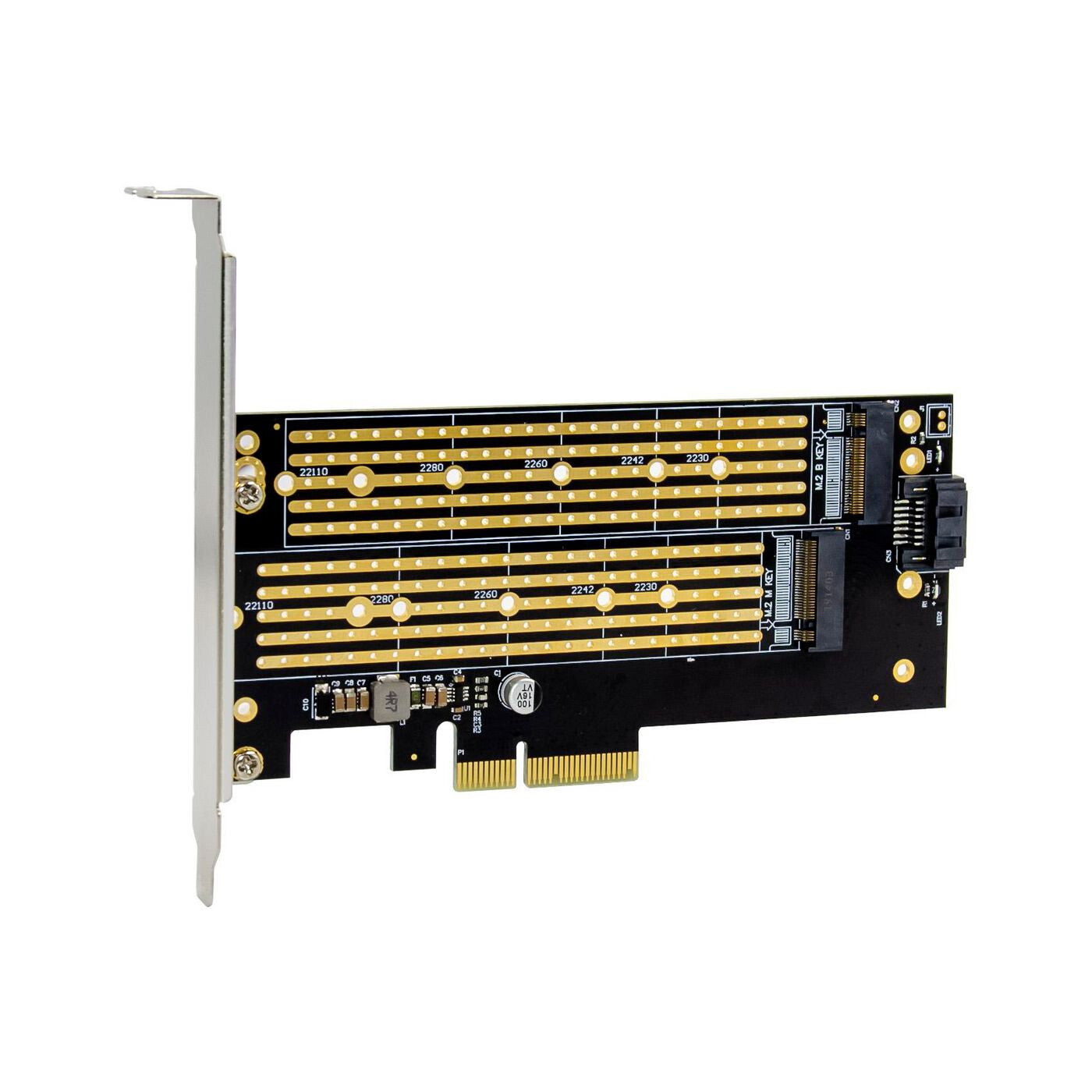

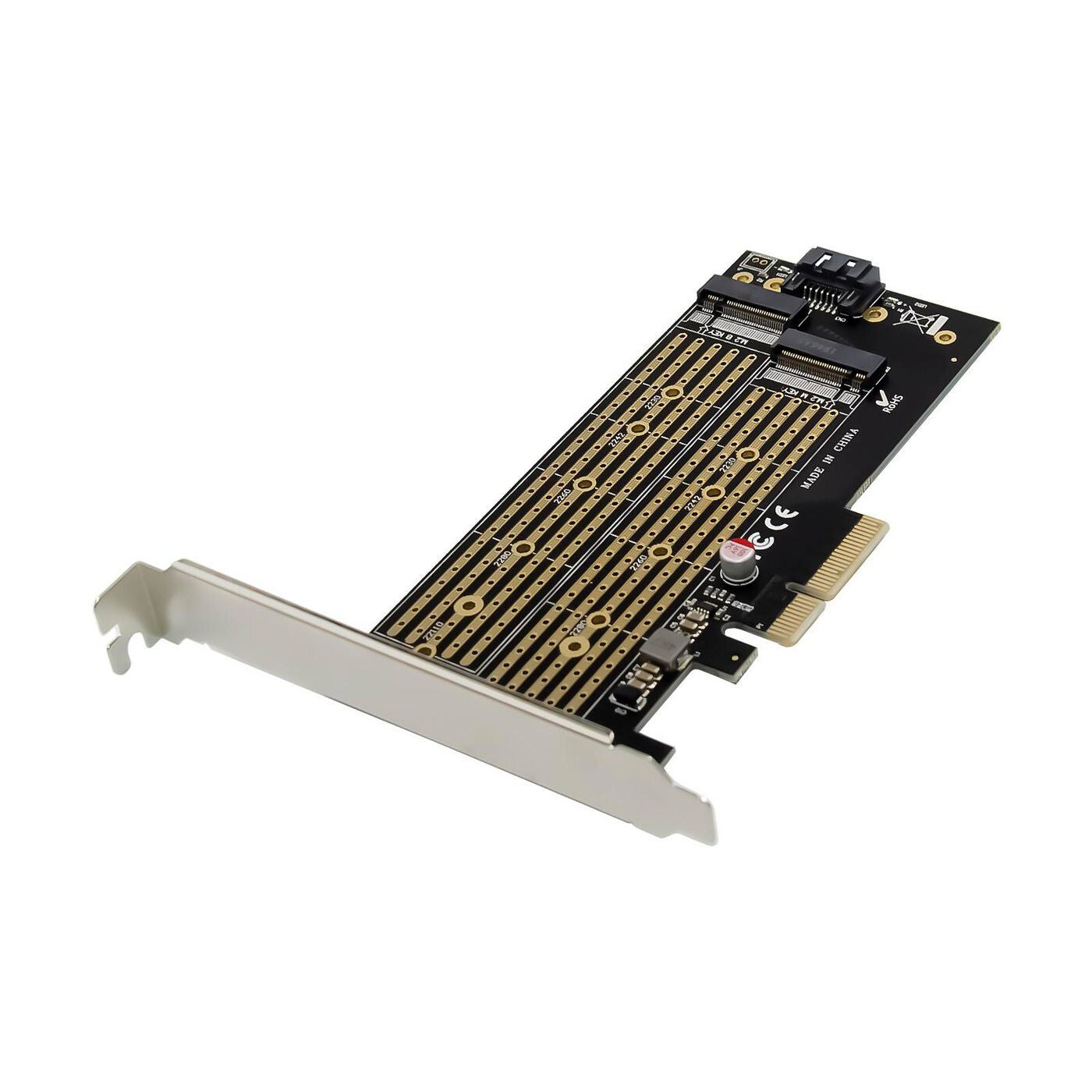

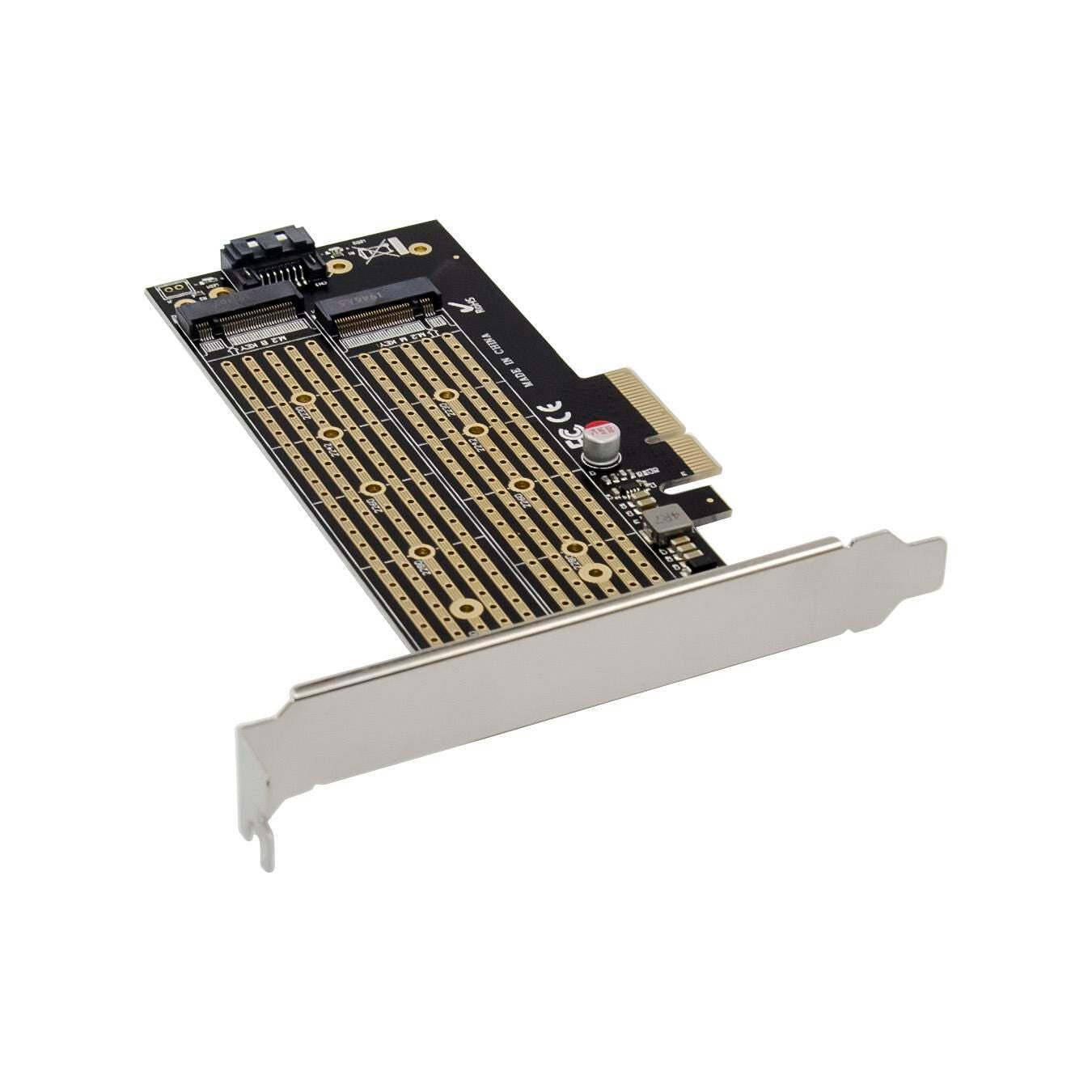

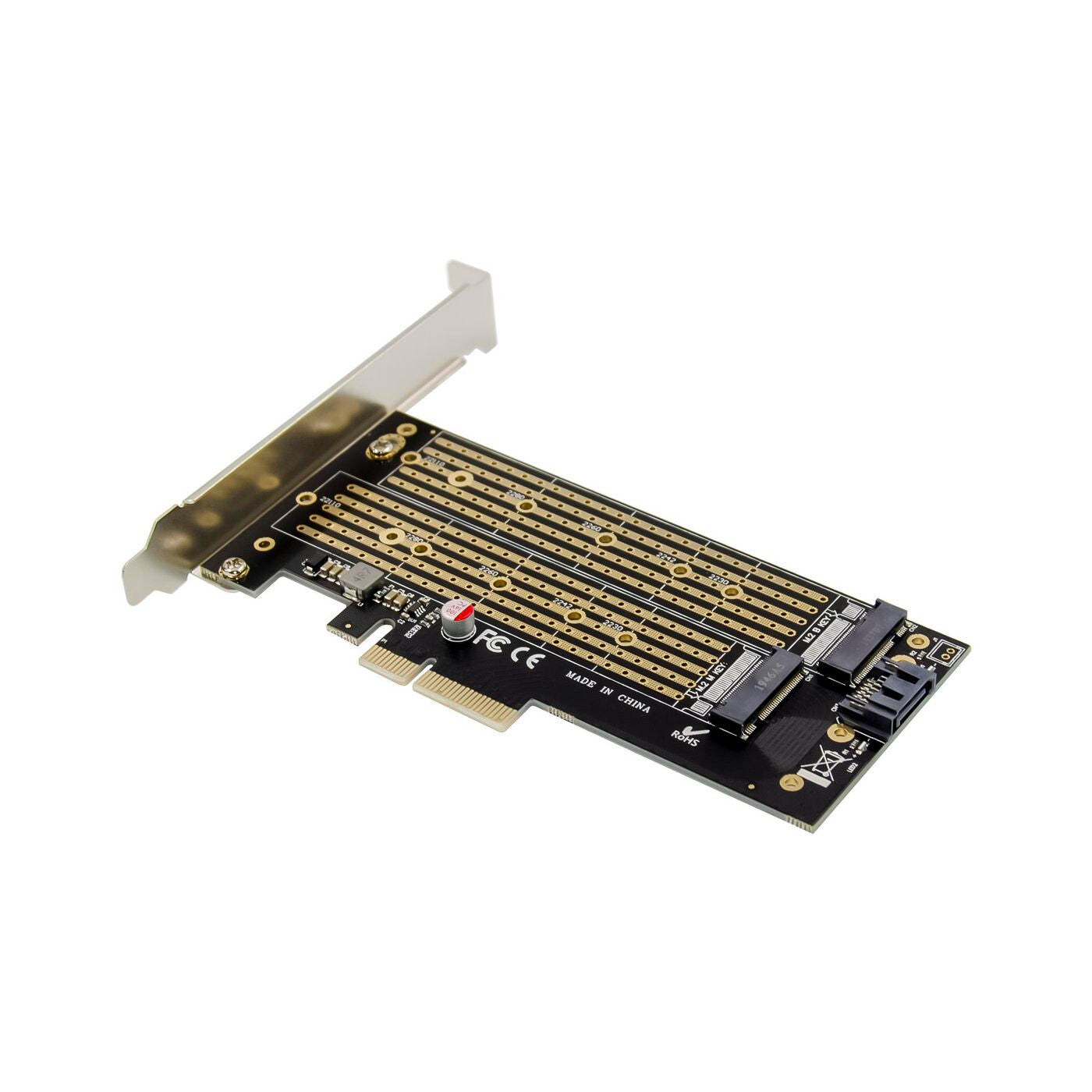

Microconnect MC-PCIE-X4M2 interface cards/adapter Internal M.2

• Compliant with PCI Express Specification Revision 3.0
• Compliant with Serial ATA Specification Revision 3.0
• Support NVMe key B/M m.2 SSD including 2230, 2242, 2260, 2280 and 22110 drives
• Backwards compatible with PCIE V2.0 and V1.0 mainboards
• Drive sizes are 110, 80, 60, 42 and 30mm
• Support Any “M” Key M.2 SSD , “B” Key and “B+M” Key M.2 SSD
• B- Key interface can insert SSD of M.2 NGFF SATA Protocol, then insert SATA cable to connect motherboard ,use PCI E to supply power ,without External power supply

This PCIe x4 M.2 NVMe SSD Adapter is a multi-functional NVMe conversion card it can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with SATA cable. It has support with ultra-fast PCI Express V3.0 X4 lanes transmit bandwidth up to 32GT/S, and it has support with Serial ATA v3.0 transmit speed up to 6Gbps. By this adapter can be improved system speed ,and improve the efficiency of office and entertainment.

• EU Declaration of Conformity
• leaflet
