Microconnect MC-PCIE-MCS2S interface cards/adapter Internal Serial

Microconnect MC-PCIE-MCS2S interface cards/adapter Internal Serial

MC-PCIE-MCS2S

£21.23 GBP£17.69 GBP
£0.00 GBP £21.23 GBP£17.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

36 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 2 x Pin header, with rear bracket with two DB9 RS-232 ports
  • 1 x parallel DB25 Port
  • Data transfer rate: serial up to 230.4 Kbps, parallel up to 1.5 Mbps
  • SPP, PS2, EPP, ECP compatible to IEEE 1284
  • compatible with 16C550 UART
  • FIFO: 16 byte
  • PCI Express x1 Standard
  • Supports PCI Express 1.0a Specification
  • for Windows DOS, Linux, Windows 98/2000/XP/Vista/Win7/Win8/Win8.1, MAC OS

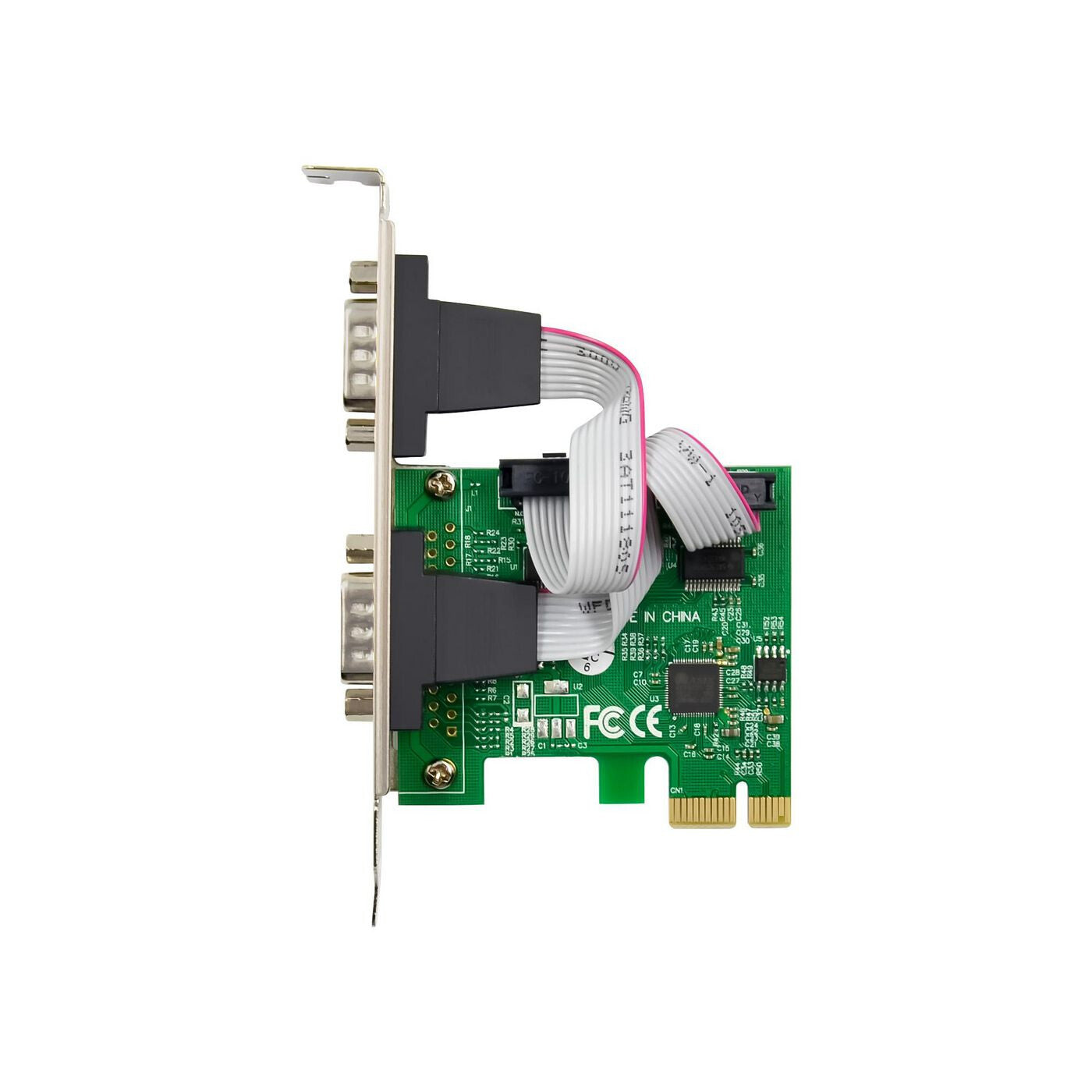

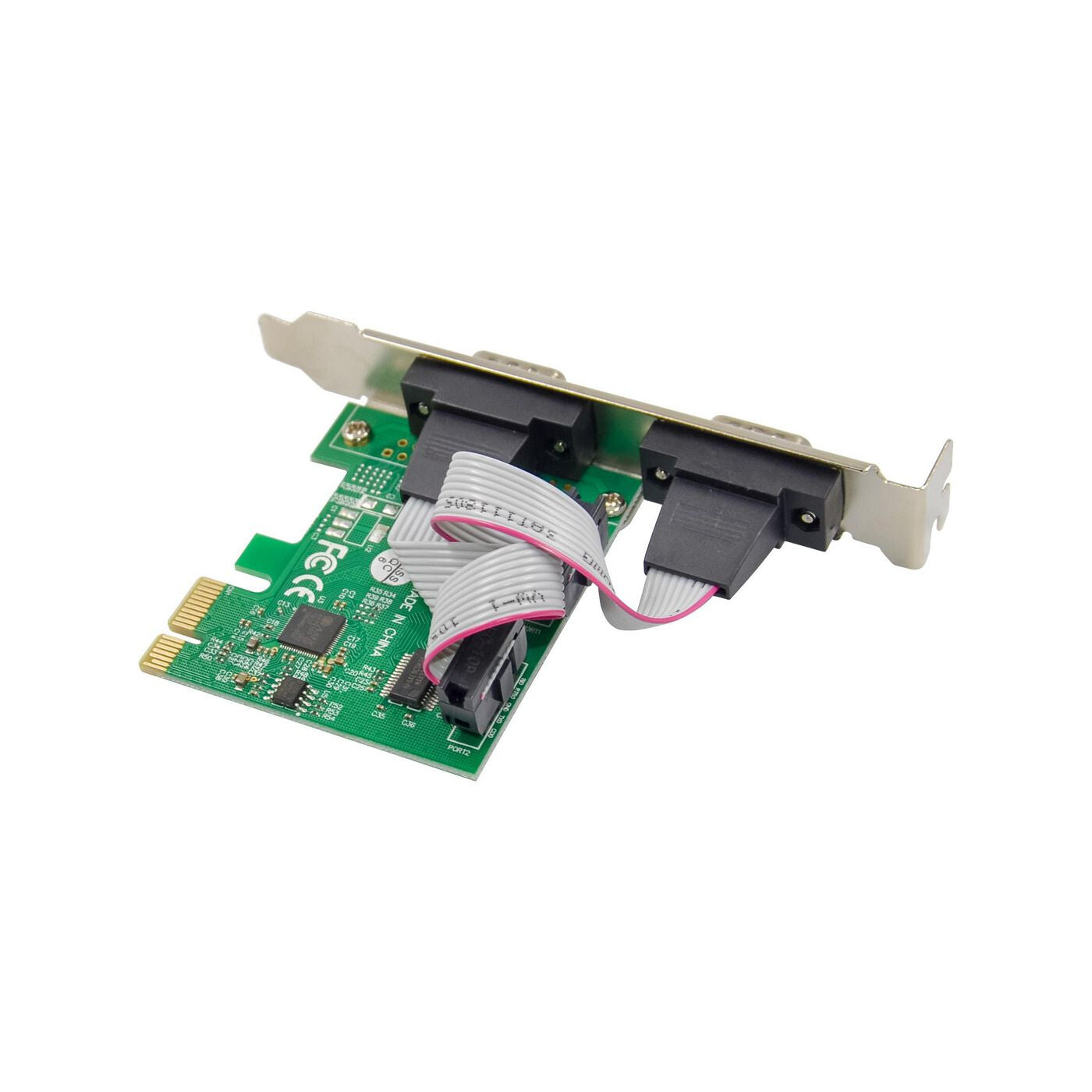

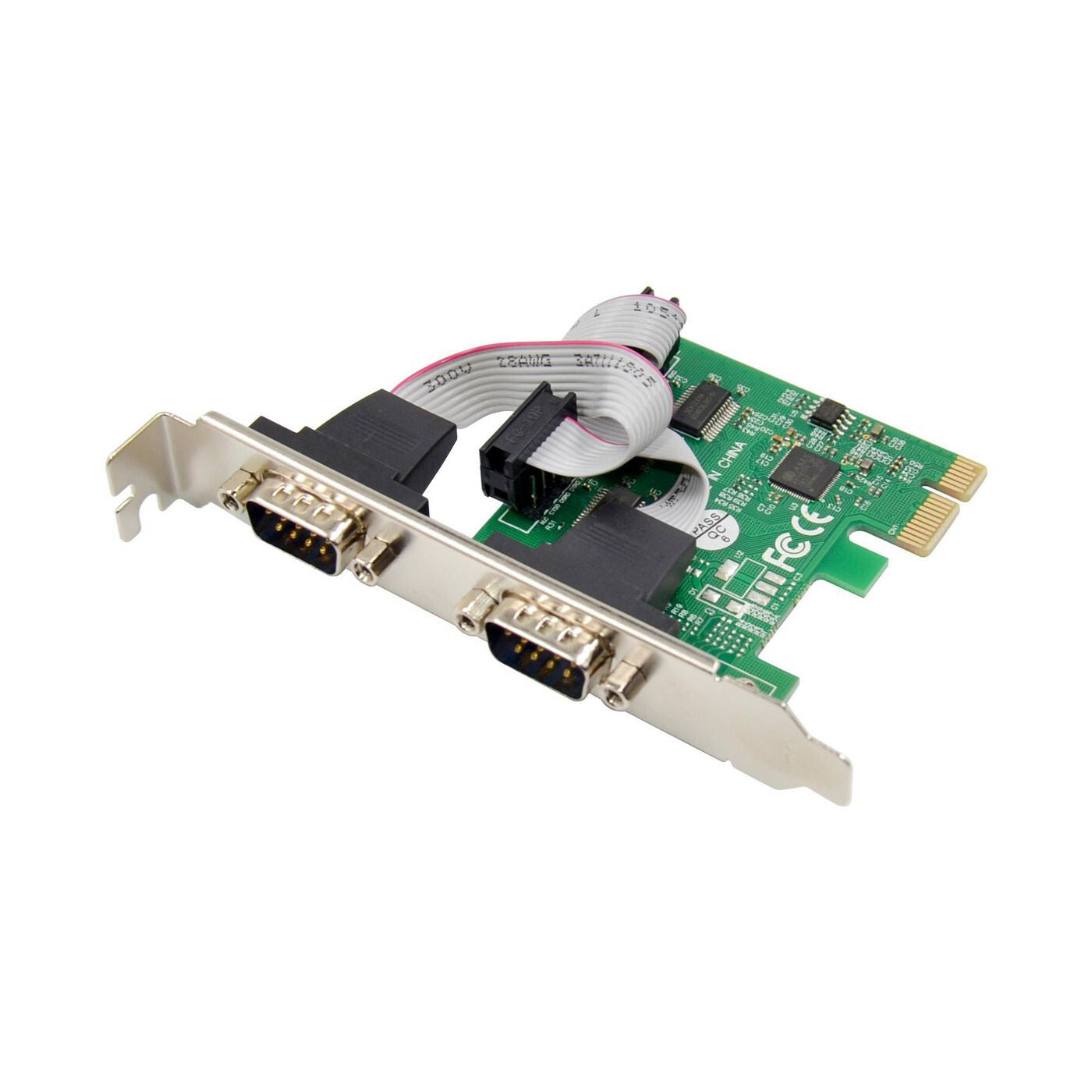

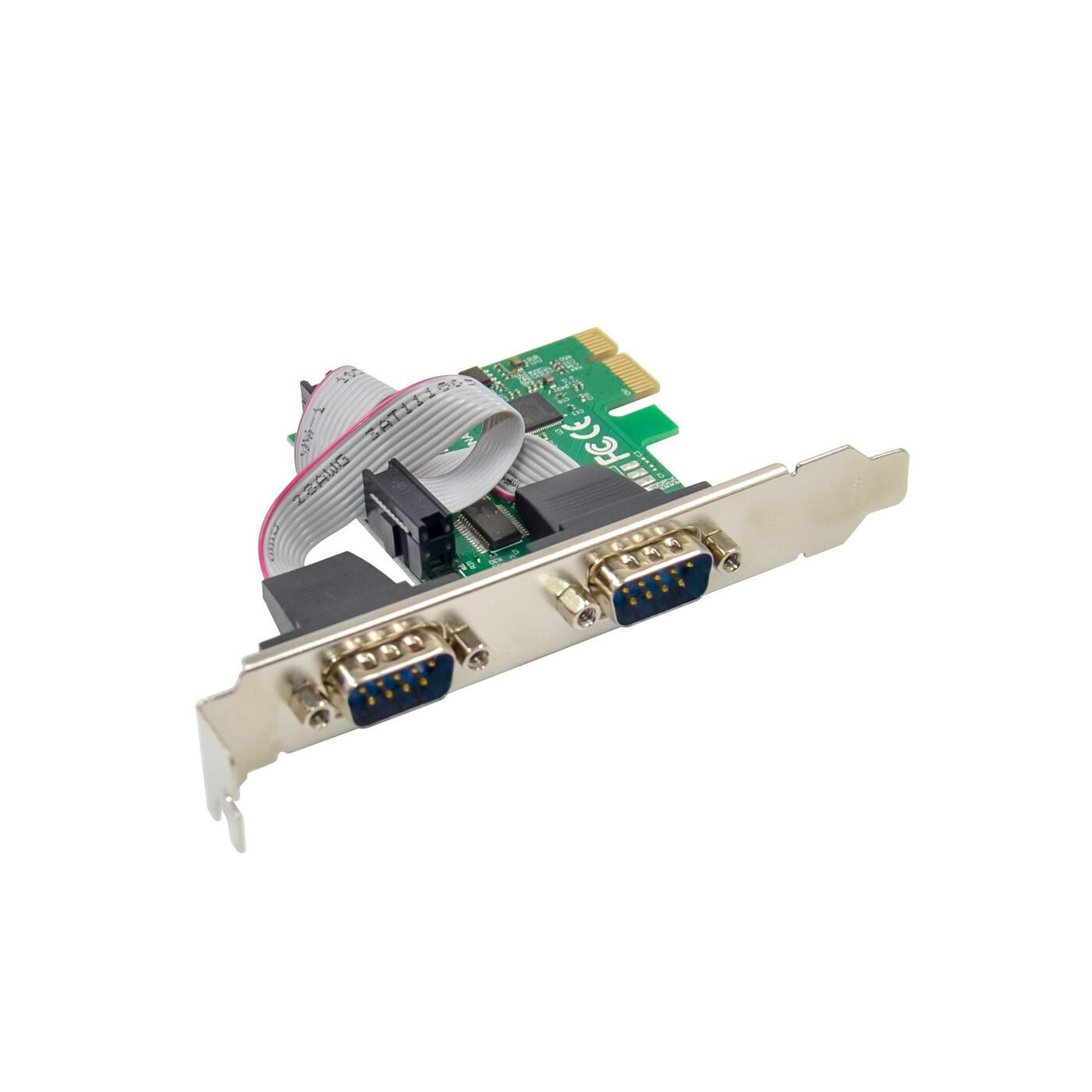

PCI Express ASIX AX99100 2S DB9 Serial RS232-Port

This PCI Express card expands your PC by two external serial, also one external parallel Ports. You can connect devices like scanner, printer, mouse etc. to the card. This part is delivered with a pre-mounted standard profile bracket, and an extra low profile bracket for compact setups.

Ports & interfaces
Host interface PCIe
Output interface Serial
Serial ports quantity 2
Design
Internal Yes
Features
Chipset ASIX MCS9901
Weight & dimensions
Weight 110 g
Packaging data
Package width 175 mm
Package depth 130 mm
Package height 34 mm
Package weight 112 g
Logistics data
Harmonized System (HS) code 84733020
