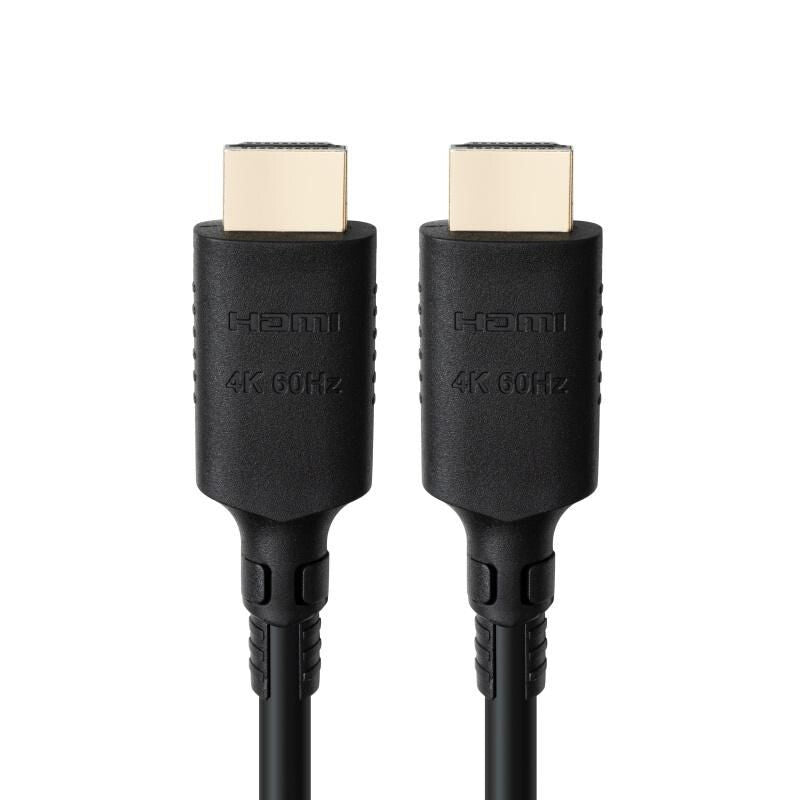

Microconnect MC-HDM19191V2.0LSZH HDMI cable 1 m HDMI Type A (Standard) Black
Microconnect MC-HDM19191V2.0LSZH HDMI cable 1 m HDMI Type A (Standard) Black
SKU:MC-HDM19191V2.0LSZH
854 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Low Smoke Zero Halogen (LSZH) and flexible soft TPE cable Jacket
- Color-coded detachable strain relief packs available in green, red, yellow, blue, and white (sold separately in packs of 20). The cable comes with a black strain relief as standard
- HDMI 2.0 4K60Hz18Gbps
- Gold plated
The ColorFlex LSZH series from MicroConnect are designed for safe and organized cable installations. Featuring a durable jacket made from a combination of Thermoplastic Elastomer (TPE) and Low Smoke Zero Halogen (LSZH) materials, these cables are ideal for environments where flexibility, fire safety, and reduced emissions are essential. Each cable comes with a standard black strain relief, while additional detachable strain reliefs are available separately in six vibrant colors—green, red, yellow, blue, and white—making it easy to color-code and customize your setup.
HDMI 2.0 4K60Hz18Gbps with gold plated connector.
| Features | |
|---|---|
| Cable length | 1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.0 |
| 3D | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Dolby technologies | Dolby TrueHD |
| Pull-resistant connector(s) | No |
| Pull-off force | 1 kg |
| Audio Return Channel (ARC) | Yes |
| HDMI Ethernet channel | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| RGB support | 4:4:4 |
| Data transfer rate | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Bandwidth | 60 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| AWG wire size | 30 |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| Magnetically shielded | Yes |
| Colour depth | 16 bit |
| Plug and Play | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 6 mm |
| Weight | 80 g |
| Package width | 199 mm |
| Package depth | 173 mm |
| Package height | 29 mm |
| Package weight | 90 g |
| Other features | |
|---|---|
| Height | 29 mm |
| Depth | 173 mm |
| Cable colour | Black |
| Width | 199 mm |
