Microconnect

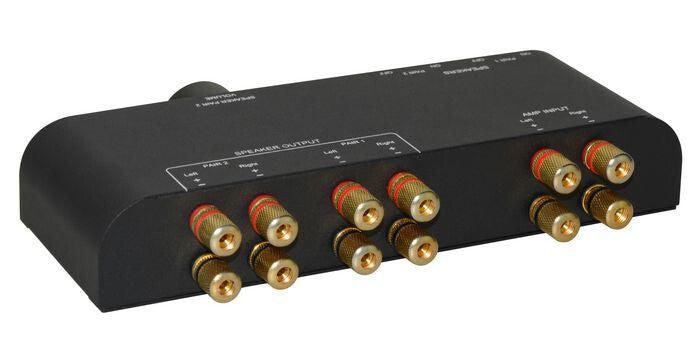

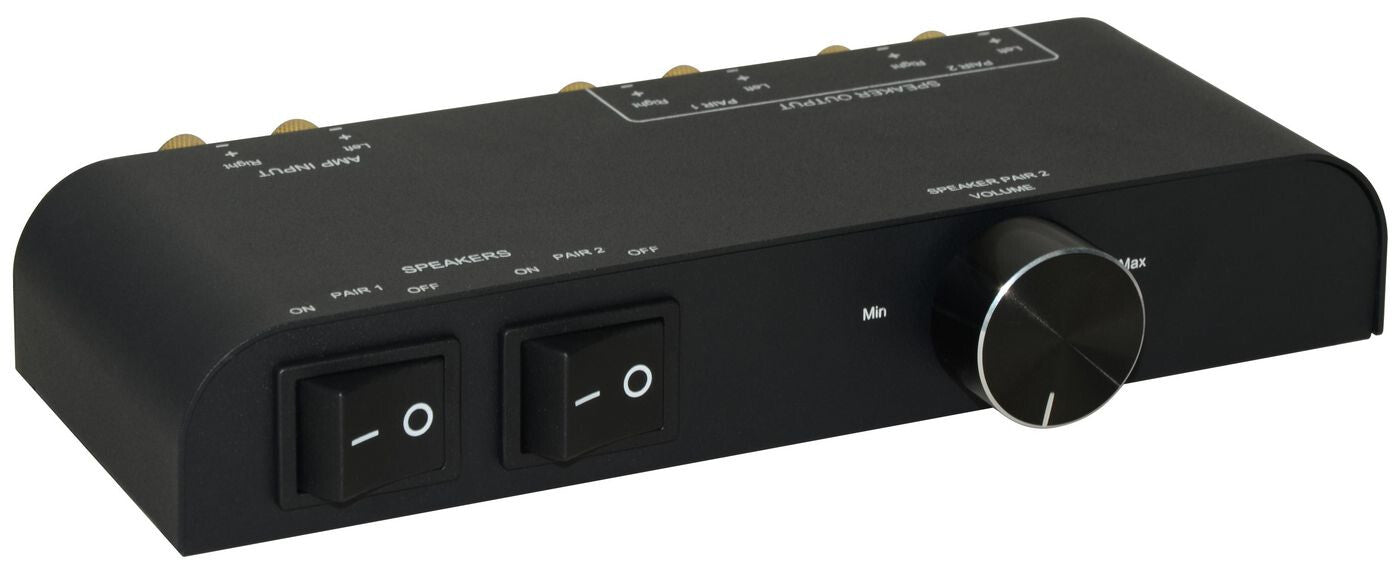

Microconnect MC-GEN-270 audio switch Black

Microconnect MC-GEN-270 audio switch Black

MC-GEN-270

£66.98 GBP£55.82 GBP
£0.00 GBP £66.98 GBP£55.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

28 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Load.............................................. 60 W per channel
  • Impedance................................... 4 – 16 Ω
  • Cable length................................. max. 50 m
  • Wire cross section........................ max. 2.5 mm2
  • Operating conditions.................... -25 to +85 oC, 20 – 75 % RH
  • Storage conditions....................... -25 to +85 oC, 20 – 75 % RH
2 Way Speaker Switch with Banana Connector

The product is used to distribute loudspeaker output signals from
audio amplifiers to different loudspeakers for selection and control
the volume.

This product is only approved for connection to loudspeaker outputs
of audio amplifiers and inputs of passive loudspeakers

Technical details
On/off switch Yes
Maximum power per channel 60 W
Product colour Black
Weight & dimensions
Weight 930 g
Ports & interfaces
Audio-in ports quantity 4
Audio-out ports quantity 8
Audio
Input impedance 16 Ω
Operational conditions
Storage relative humidity (H-H) 20 - 75%
Storage temperature (T-T) -25 - 85 °C
Operating relative humidity (H-H) 20 - 75%
Operating temperature (T-T) -25 - 85 °C
Packaging data
Package weight 1.14 kg
Package height 51 mm
Package depth 146 mm
Package width 242 mm
