Microconnect MC-DP-MMG-300LSZH DisplayPort cable 3 m Black
Microconnect MC-DP-MMG-300LSZH DisplayPort cable 3 m Black
SKU:MC-DP-MMG-300LSZH
395 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Low Smoke Zero Halogen (LSZH) and flexible soft TPE cable Jacket

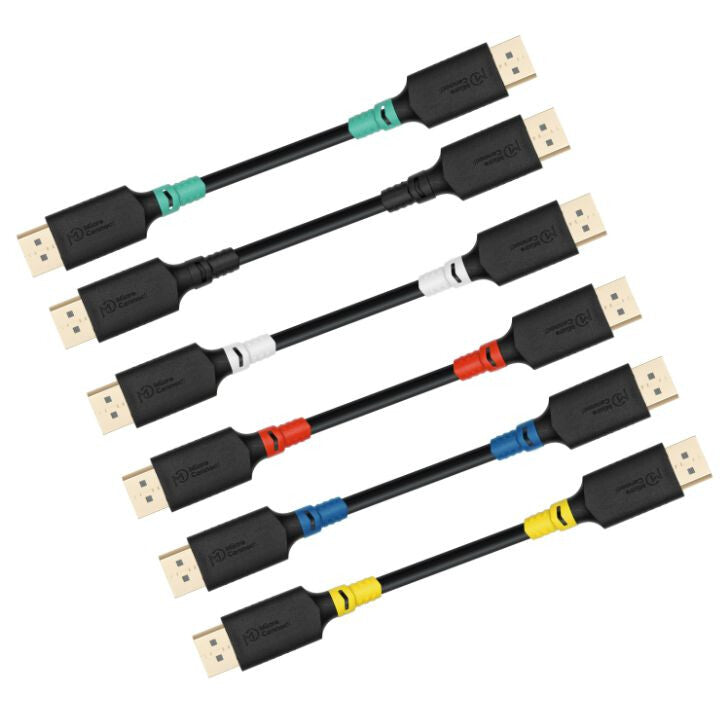

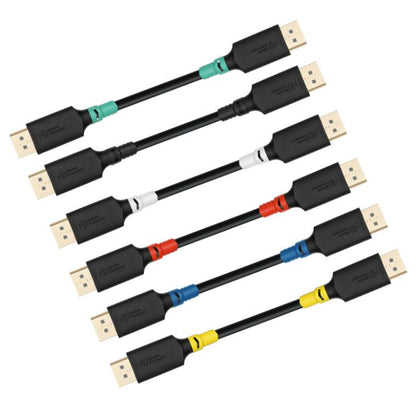

- Color-coded detachable strain relief packs available in green, red, yellow, blue, and white (sold separately in packs of 20). The cable comes with a black strain relief as standard
- Gold-plated connectors for improved signal transmission
- Supported Resolutions & Refresh Rates: 4K (3840×2160 & 4096×2160) @ 60Hz 2K (2560×1440) @ 165Hz, 144Hz, 120Hz, 60Hz, 30Hz 1080p (1920×1080) @ 240Hz, 165Hz, 144Hz, 120Hz, 60Hz, 30Hz
- Supports DisplayPort (DP), DP++, and DisplayPort++ standards.
The ColorFlex LSZH series from MicroConnect are designed for safe and organized cable installations. Featuring a durable jacket made from a combination of Thermoplastic Elastomer (TPE) and Low Smoke Zero Halogen (LSZH) materials, these cables are ideal for environments where flexibility, fire safety, and reduced emissions are essential. Each cable comes with a standard black strain relief, while additional detachable strain reliefs are available separately in six vibrant colors—green, red, yellow, blue, and white—making it easy to color-code and customize your setup.
The DisplayPort 1.2 cable runs 4K(3840x2160 & 4096x2160) @ 60Hz
| Features | |
|---|---|
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| 3D | Yes |
| Latching connectors | Yes |
| Product colour | Black |
| Cable material | Copper |
| Number of shielding layers | 3 |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Data transfer rate | 21.6 Gbit/s |
| Plug and Play | Yes |
| Packaging data | |
|---|---|
| Cable diameter | 6 mm |
| Weight | 80 g |
| Quantity per pack | 1 pc(s) |
| Package width | 199 mm |
| Package depth | 173 mm |
| Package height | 29 mm |
| Package weight | 90 g |
| Other features | |
|---|---|
| Height | 29 mm |
| Width | 199 mm |
| Depth | 173 mm |
