Microconnect MC-DP-MMG-100LSZH DisplayPort cable 1 m Black

Microconnect MC-DP-MMG-100LSZH DisplayPort cable 1 m Black

Regular price £4.38 GBP
Regular price Sale price £4.38 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:MC-DP-MMG-100LSZH

76 in stock

  • Low Smoke Zero Halogen (LSZH) and flexible soft TPE cable Jacket

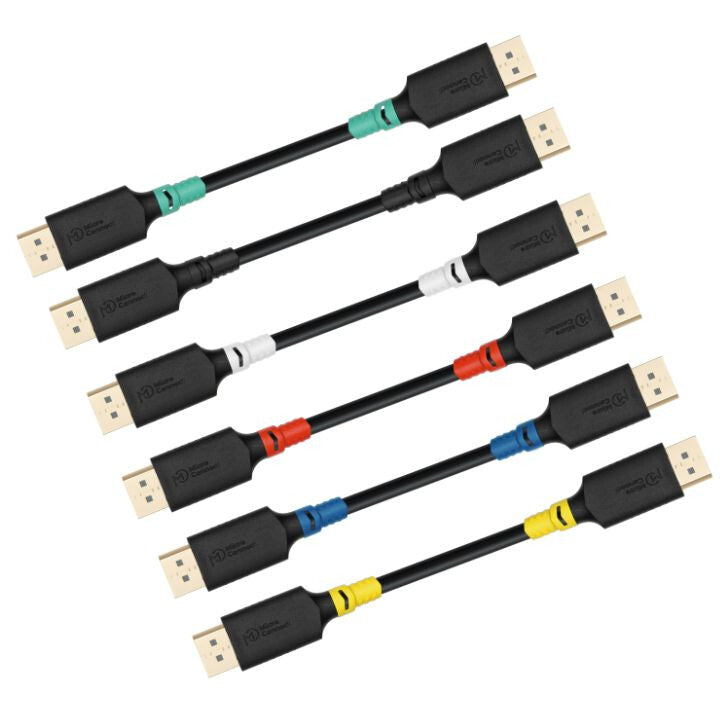

  • Color-coded detachable strain relief packs available in green, red, yellow, blue, and white (sold separately in packs of 20). The cable comes with a black strain relief as standard
  • Gold-plated connectors for improved signal transmission
  • Supported Resolutions & Refresh Rates: 4K (3840×2160 & 4096×2160) @ 60Hz 2K (2560×1440) @ 165Hz, 144Hz, 120Hz, 60Hz, 30Hz 1080p (1920×1080) @ 240Hz, 165Hz, 144Hz, 120Hz, 60Hz, 30Hz
  • Supports DisplayPort (DP), DP++, and DisplayPort++ standards.
ColorFlex 4K DisplayPort 1.2 Halogenfree LSZH 1m

The ColorFlex LSZH series from MicroConnect are designed for safe and organized cable installations. Featuring a durable jacket made from a combination of Thermoplastic Elastomer (TPE) and Low Smoke Zero Halogen (LSZH) materials, these cables are ideal for environments where flexibility, fire safety, and reduced emissions are essential. Each cable comes with a standard black strain relief, while additional detachable strain reliefs are available separately in six vibrant colors—green, red, yellow, blue, and white—making it easy to color-code and customize your setup.
The DisplayPort 1.2 cable runs 4K(3840x2160 & 4096x2160) @ 60Hz

Features
Cable length 1 m
Connector 1 DisplayPort
Connector 2 DisplayPort
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Gold
DisplayPort version 1.2
Maximum resolution 4096 x 2160 pixels
Supported graphics resolutions 3840 x 2160
Supported video modes 2160p
Maximum refresh rate 60 Hz
HDCP Yes
DisplayPort Content Protection (DPCP) Yes
3D Yes
Latching connectors Yes
Product colour Black
Cable material Copper
Number of shielding layers 3
Jacket material Polyvinyl chloride (PVC)
AWG wire size 30
Data transfer rate 21.6 Gbit/s
Plug and Play Yes
Packaging data
Cable diameter 6 mm
Weight 80 g
Quantity per pack 1 pc(s)
Package width 199 mm
Package depth 173 mm
Package height 29 mm
Package weight 90 g
Other features
Height 29 mm
Width 199 mm
Depth 173 mm
