Microconnect FIB561005 InfiniBand/fibre optic cable 5 m LC SC Green
Microconnect FIB561005 InfiniBand/fibre optic cable 5 m LC SC Green
Regular price
£23.15 GBP
Regular price
Sale price
£23.15 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB561005
Low stock: 1 left
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant

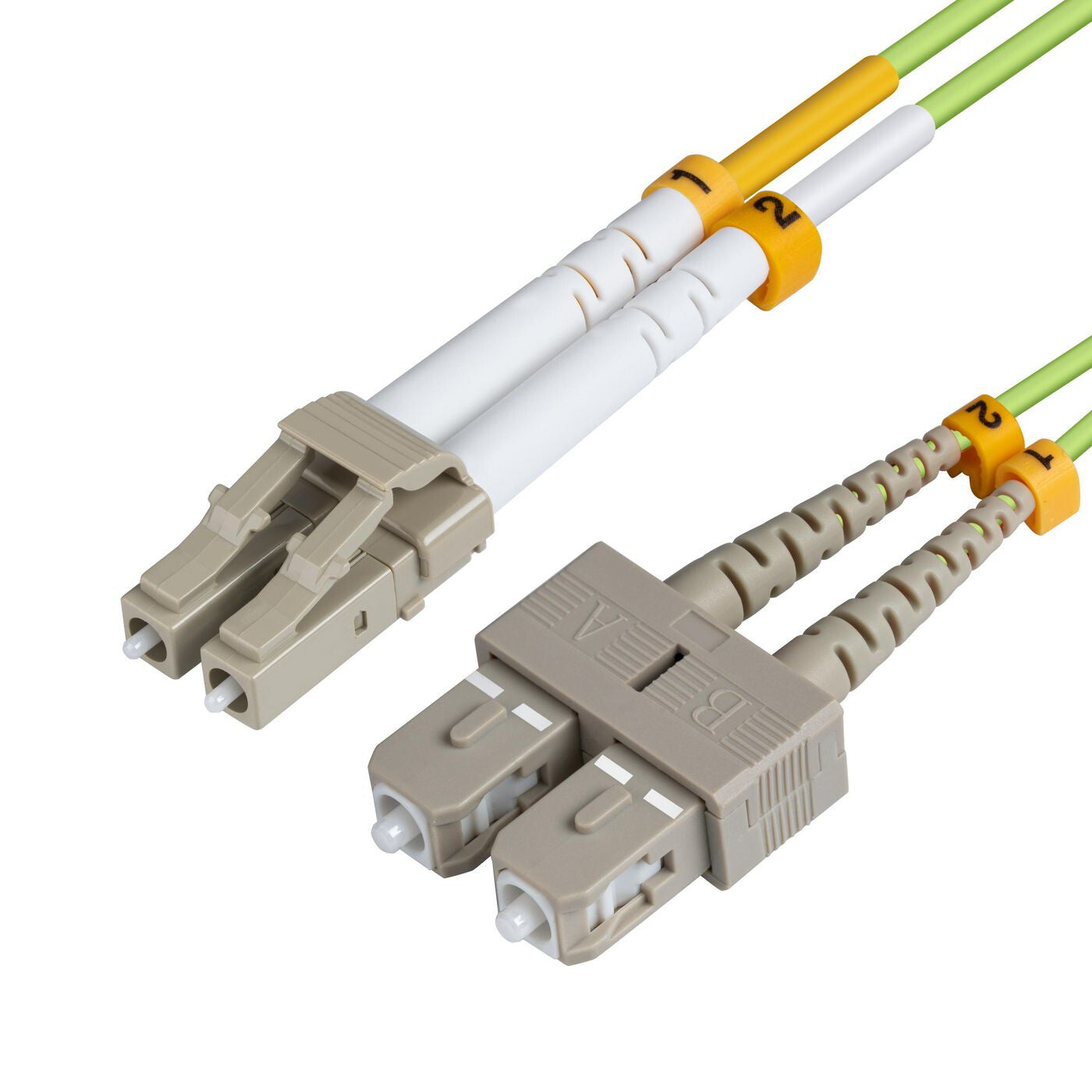

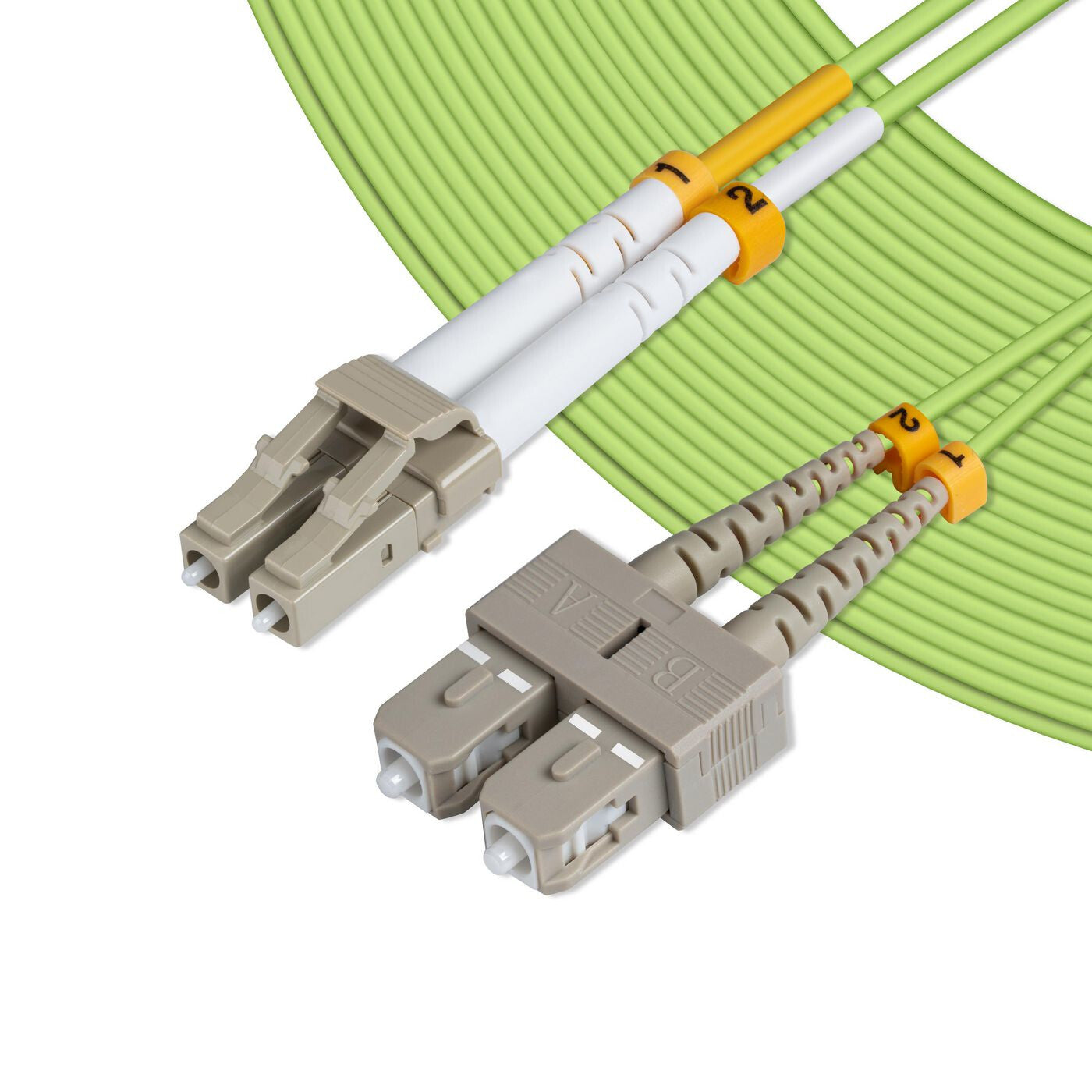

Optical Fibre Cable, LC-SC, Multimode, Duplex, OM5 (Lime Green) 5m
Due to the demand of the continuously increasing bandwith, the fiber patch cables aslo has updated quality. The latest version is Multimode OM5, also known as WBMMF (WideBrand MultiMode Fiber). This is made to meet the growing bandwith requirements.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.2 dB |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 50 µm |
| Full duplex | Yes |
| Product colour | Green |
| Connector polish type | UPC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | SC |
| Connector 1 | LC |
| Fibre optic type | OM5 |
| Cable length | 5 m |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Sustainability certificates | RoHS |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 90 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 100 g |
| Package height | 16 mm |
| Package depth | 179 mm |
| Package width | 185 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
