Microconnect

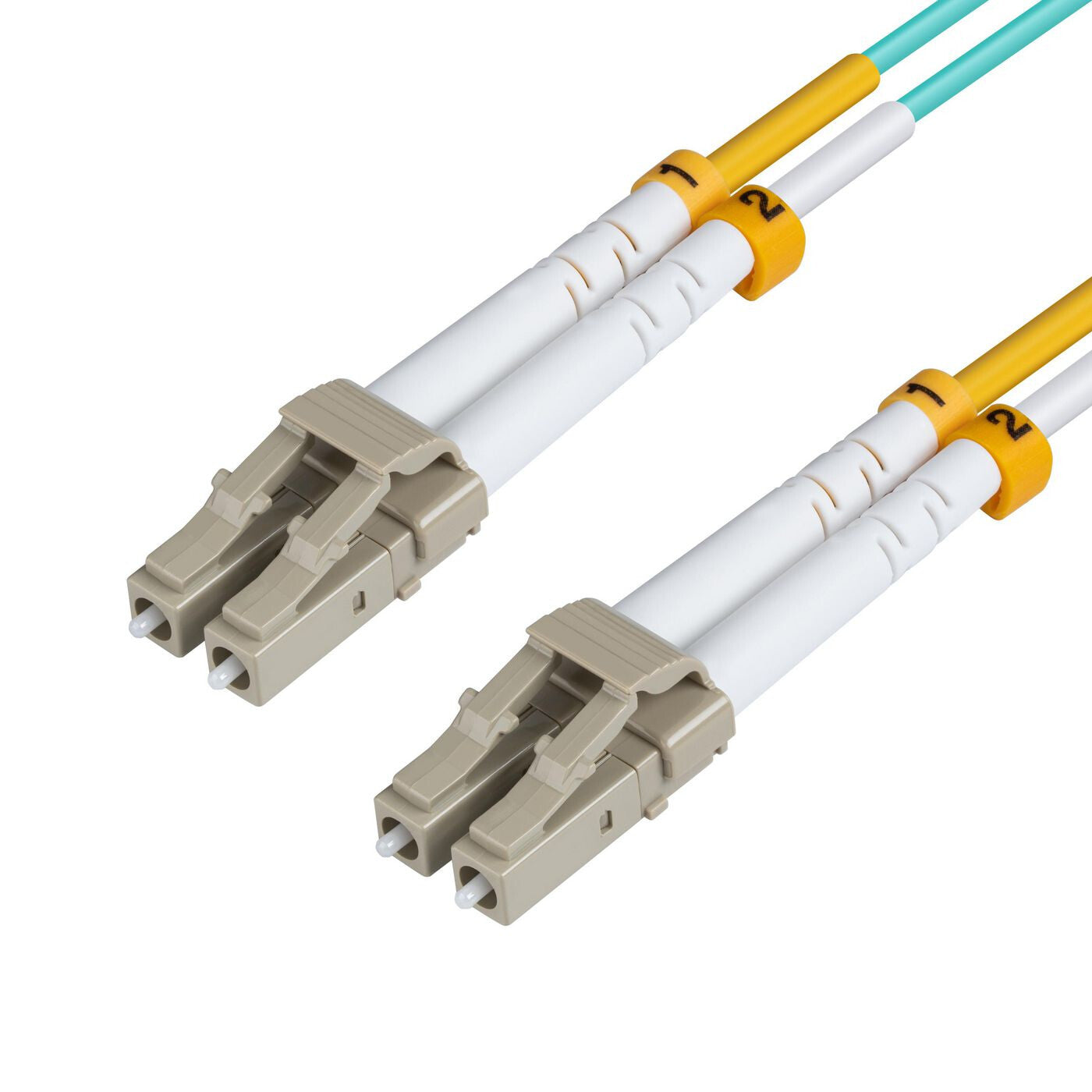

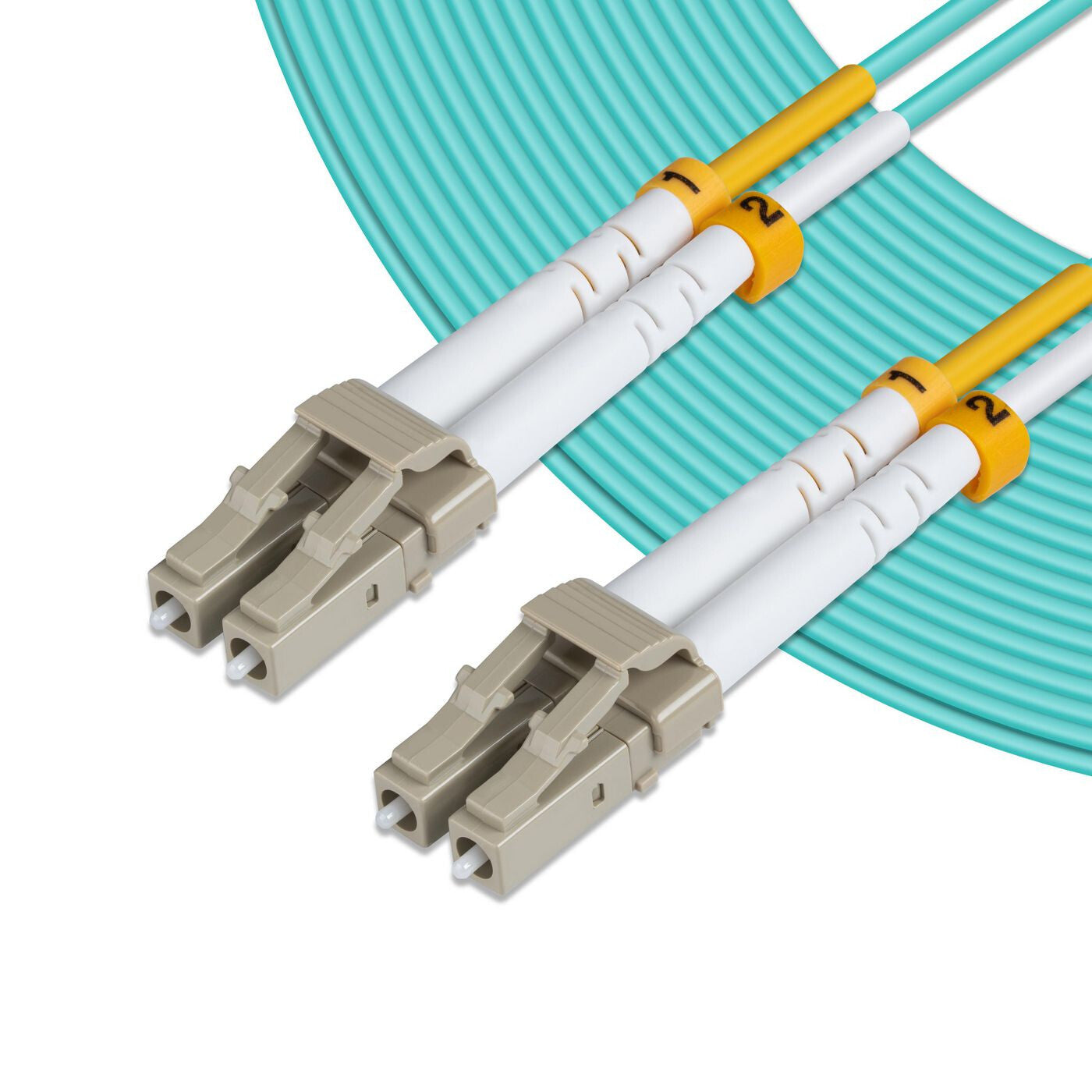

Microconnect FIB442050 InfiniBand/fibre optic cable 50 m LC Blue
Microconnect FIB442050 InfiniBand/fibre optic cable 50 m LC Blue
Regular price
£48.96 GBP
Regular price
Sale price
£48.96 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB442050
14 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
- Pre-tested with test report
- Fibre Standard G.652.D
Optical Fibre Cable, LC-LC, Multimode, Duplex, OM3 (Aqua Blue) 50m
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Cable length | 50 m |
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Blue |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Insertion loss | 0.3 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 100 g |
| Packaging data | |
|---|---|
| Package width | 237 mm |
| Package depth | 233 mm |
| Package height | 59 mm |
| Package weight | 328 g |
| Other features | |
|---|---|
| Attenuation (max) | 0.4 dB/km |
| Core / cladding diameter | 50/125 µm |
