Microconnect

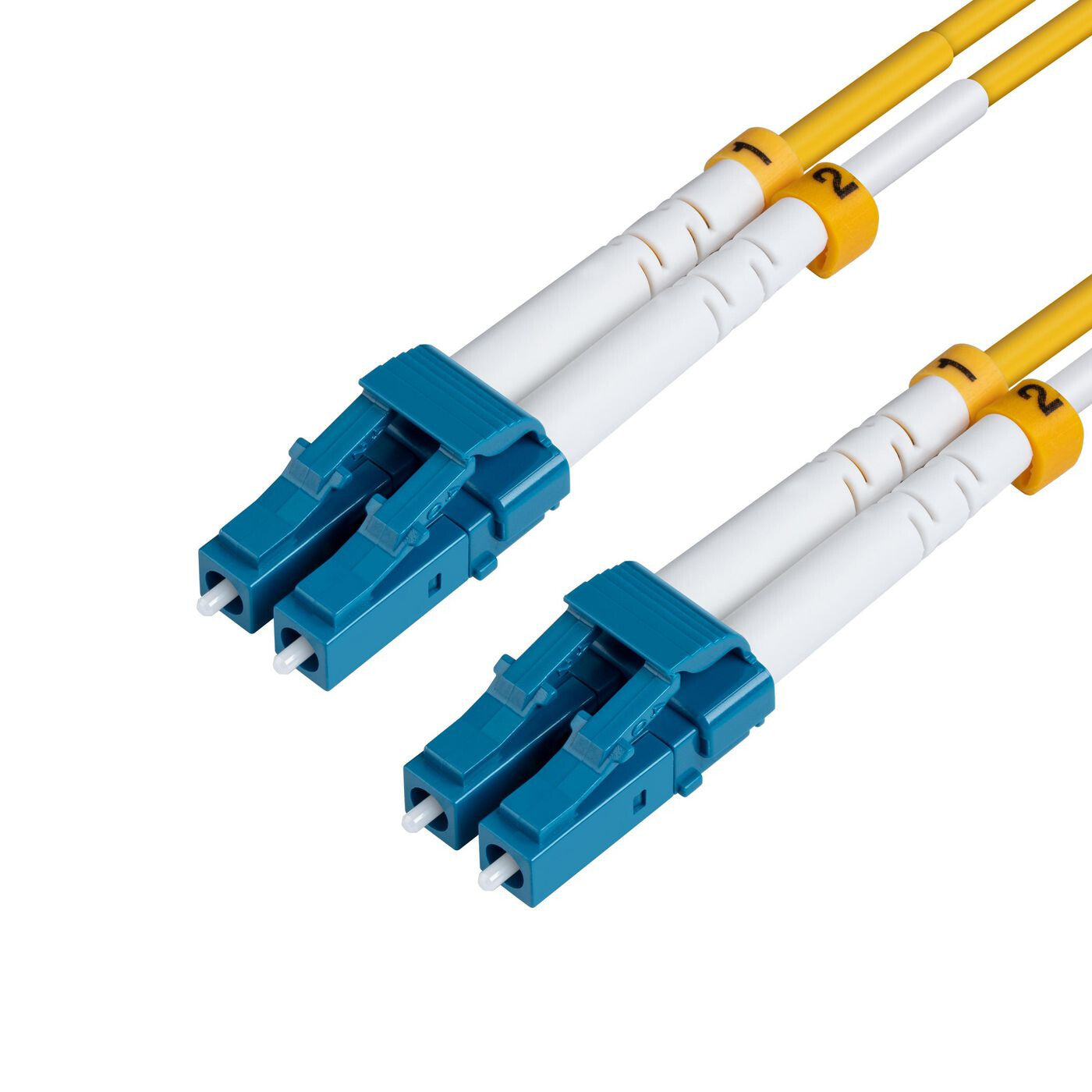

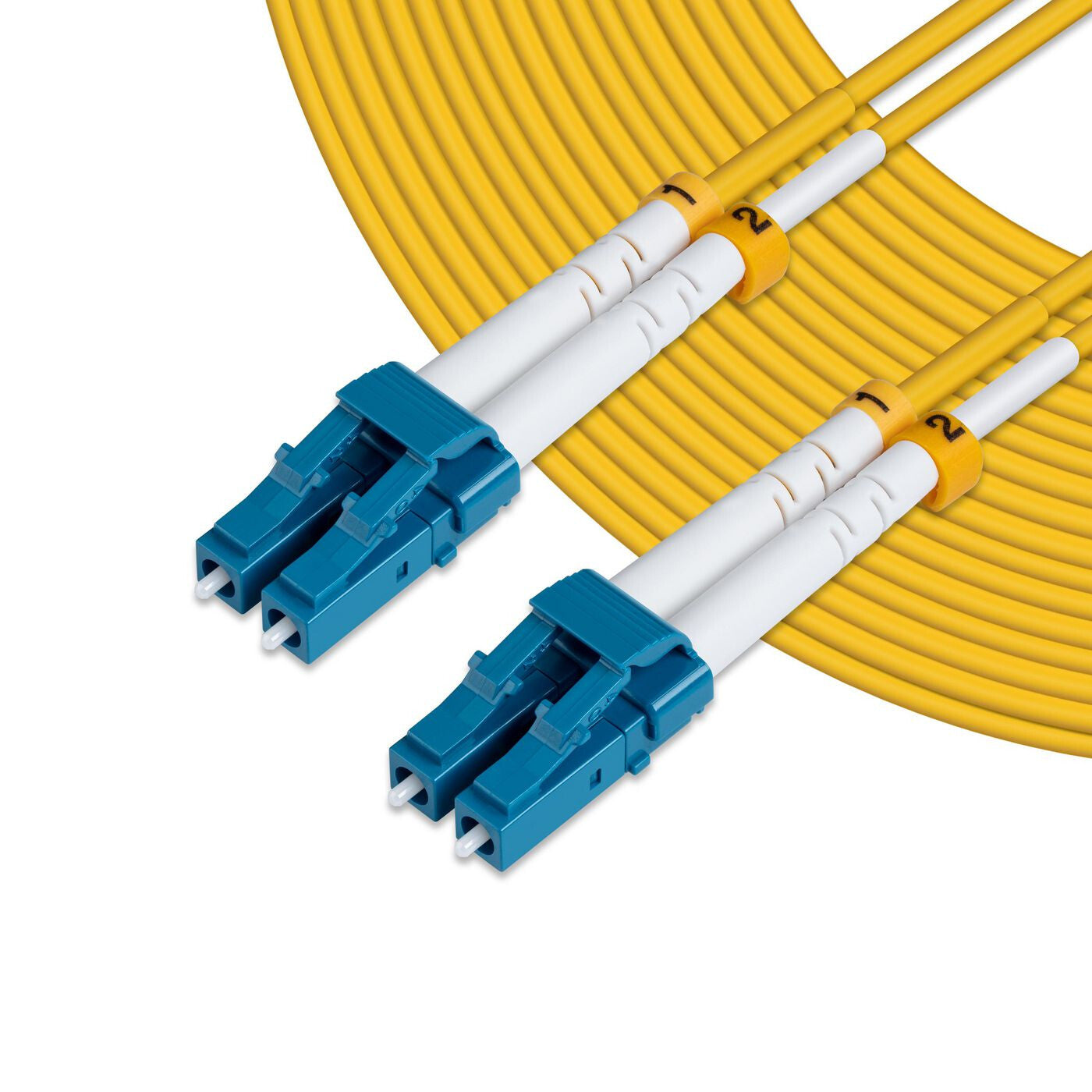

Microconnect FIB441015 InfiniBand/fibre optic cable 15 m LC Yellow
Microconnect FIB441015 InfiniBand/fibre optic cable 15 m LC Yellow
Regular price
£17.28 GBP
Regular price
Sale price
£17.28 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB441015
25 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Optical Fibre Cable, LC-LC, Singlemode, Duplex, OS2 (Yellow) 15m
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Single-mode |
| Cladding diameter | 125 µm |
| Core diameter | 9 µm |
| Product colour | Yellow |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | LC |
| Connector 1 | LC |
| Fibre optic type | OS2 |
| Cable length | 15 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
|---|---|
| Bending radius | 6 cm |
| Weight | 100 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 114 g |
| Package height | 26 mm |
| Package depth | 189 mm |
| Package width | 193 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
