Microconnect
Microconnect FIB441010 InfiniBand/fibre optic cable 10 m LC Yellow
Microconnect FIB441010 InfiniBand/fibre optic cable 10 m LC Yellow
Regular price
£7.48 GBP
Regular price
Sale price
£7.48 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB441010
237 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant

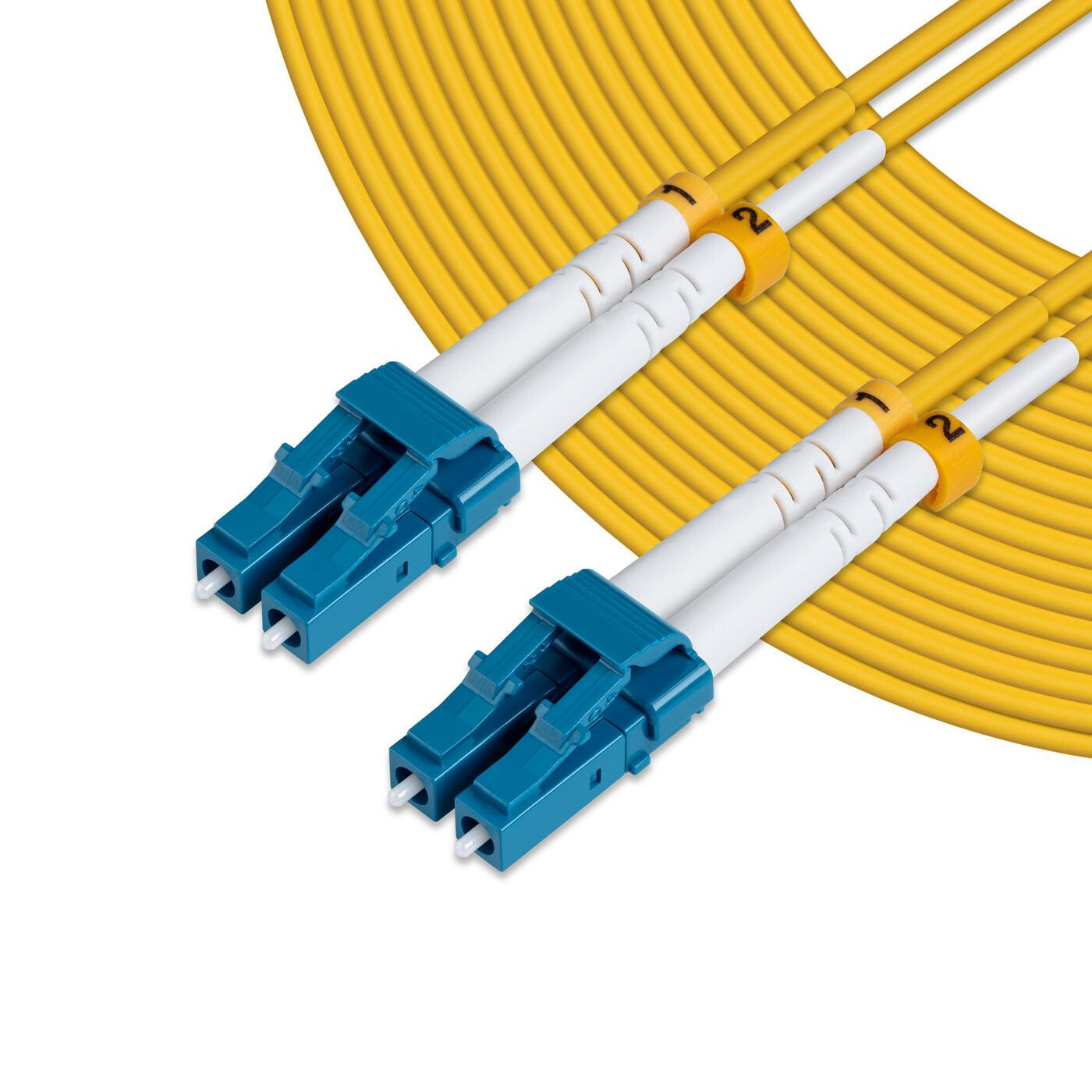

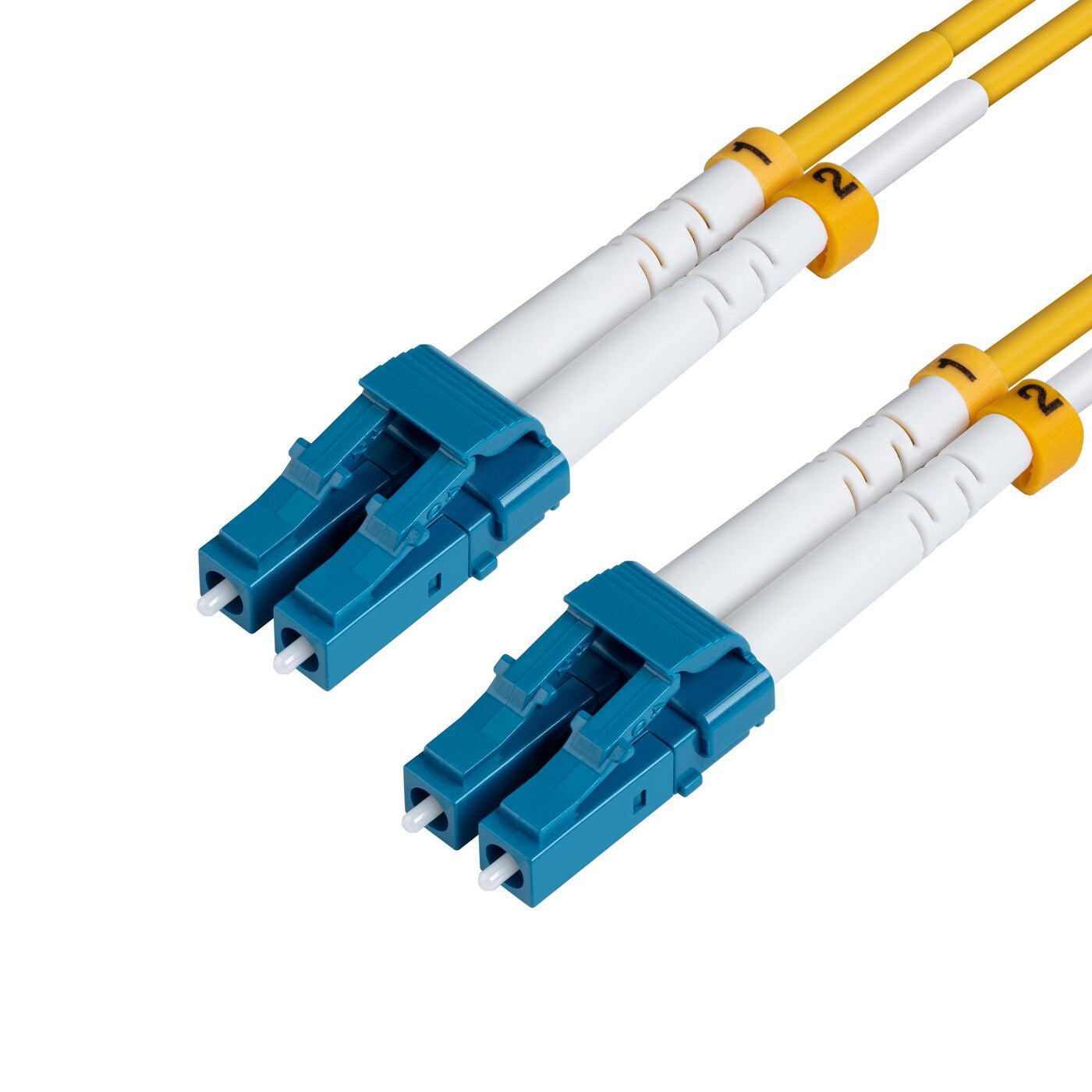

Optical Fibre Cable, LC-LC, Singlemode, Duplex, OS2 (Yellow) 10m
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Cable length | 10 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Insertion loss | 0.3 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 80 g |
| Packaging data | |
|---|---|
| Package width | 182 mm |
| Package depth | 176 mm |
| Package height | 27 mm |
| Package weight | 88 g |
