Microconnect

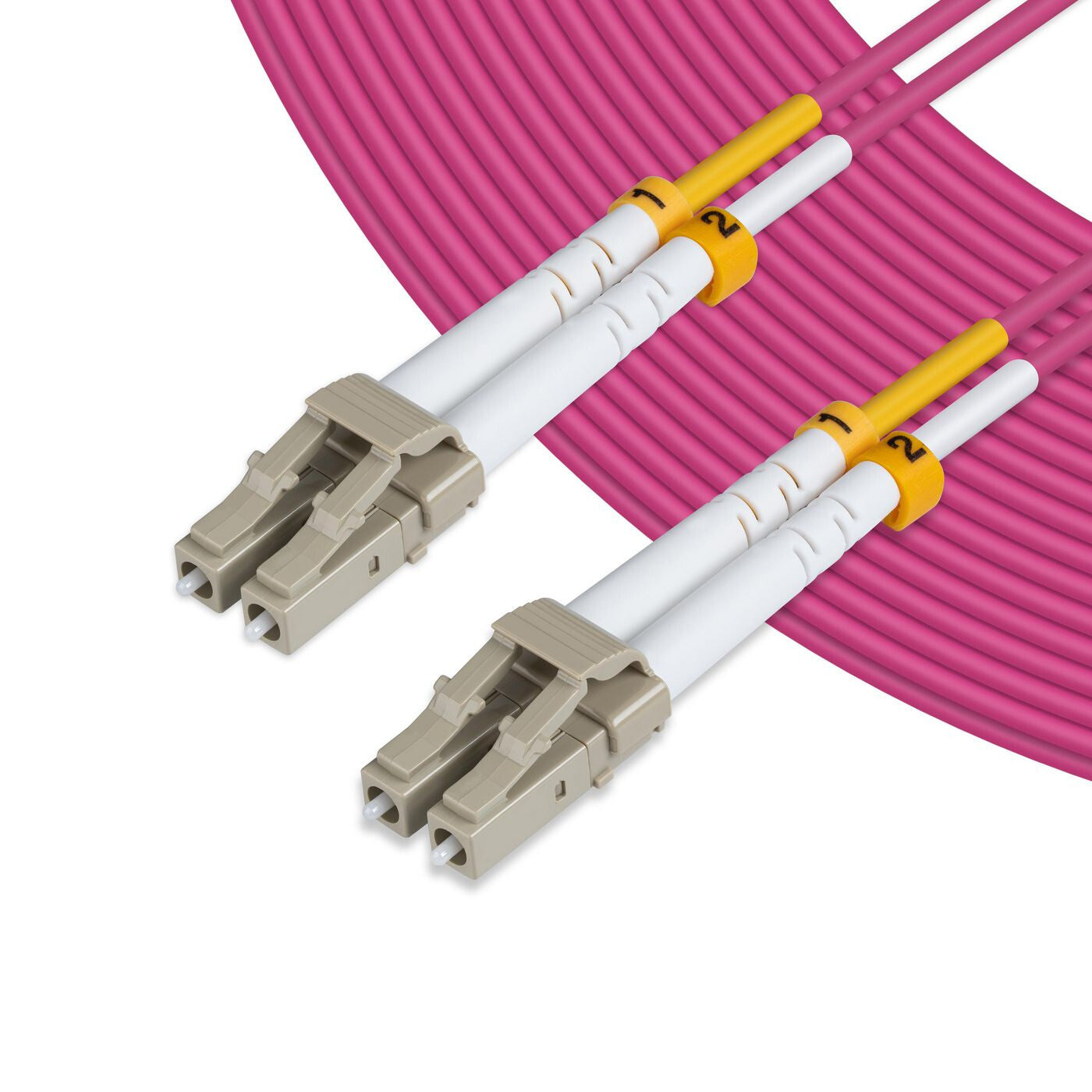

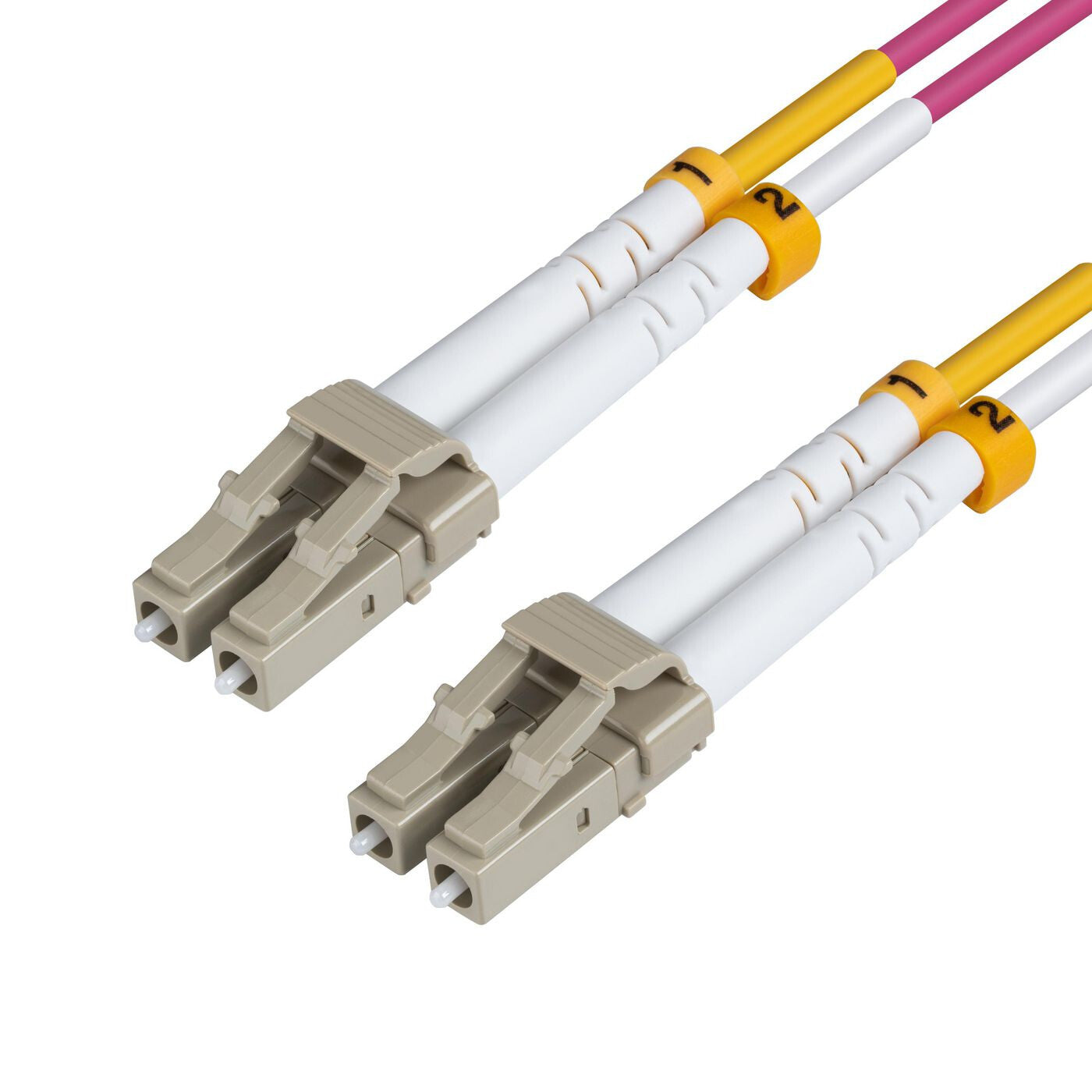

Microconnect FIB440415P InfiniBand/fibre optic cable 15 m LC Violet
Microconnect FIB440415P InfiniBand/fibre optic cable 15 m LC Violet
Regular price
£19.55 GBP
Regular price
Sale price
£19.55 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB440415P
457 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
- Lives up to the standards: EN 186000‑1, IEC 61300.
Optical Fibre Cable, LC-LC, Multimode, Duplex, OM4 (Erica Violet) 15m
OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 50 µm |
| Full duplex | Yes |
| Product colour | Violet |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | LC |
| Connector 1 | LC |
| Fibre optic type | OM4 |
| Cable length | 15 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 110 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 112 g |
| Package height | 27 mm |
| Package depth | 177 mm |
| Package width | 182 mm |
