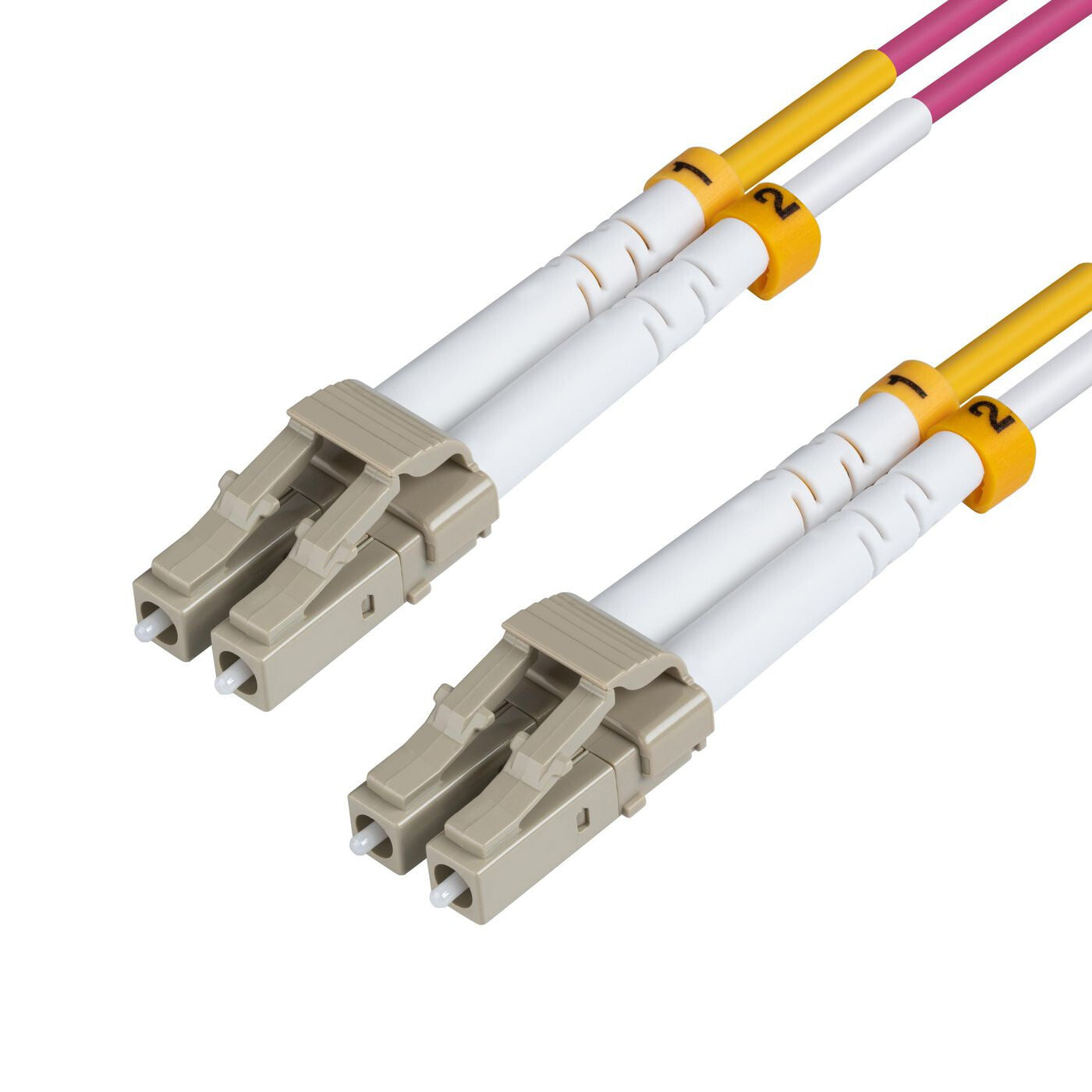

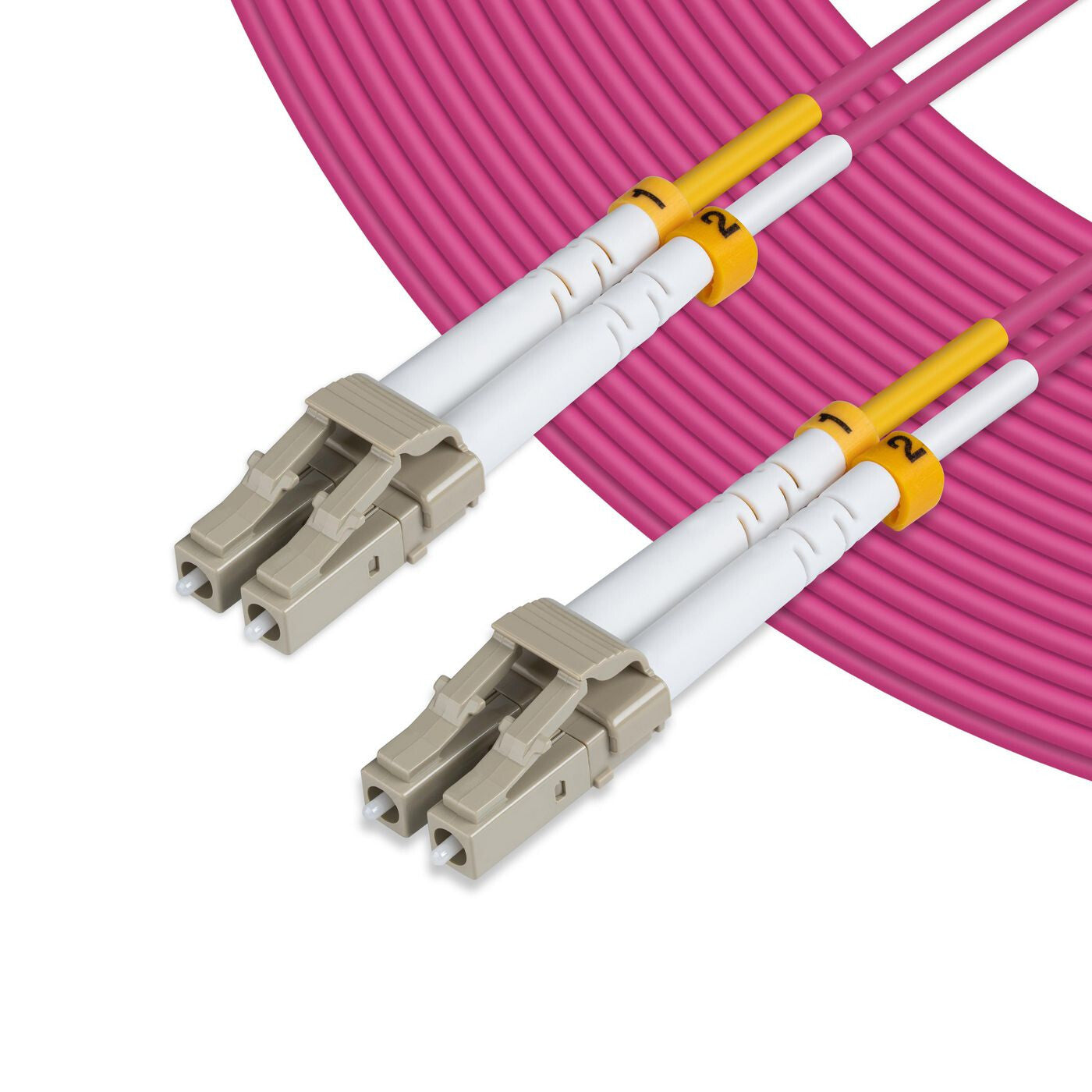

Microconnect FIB440403P InfiniBand/fibre optic cable 3 m LC Violet
Microconnect FIB440403P InfiniBand/fibre optic cable 3 m LC Violet
Regular price
£7.14 GBP
Regular price
Sale price
£7.14 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB440403P
1235 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
- Lives up to the standards: EN 186000‑1, IEC 61300.
LC-LC Fiber Patch Cable - 3m OM4
OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.
| Features | |
|---|---|
| Cable length | 3 m |
| Fibre optic type | OM4 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Violet |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Insertion loss | 0.3 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 20 g |
| Bending radius | 6 cm |
| Packaging data | |
|---|---|
| Package width | 171 mm |
| Package depth | 164 mm |
| Package height | 16 mm |
| Package weight | 36 g |
| Other features | |
|---|---|
| Attenuation (max) | 0.4 dB/km |
