Microconnect

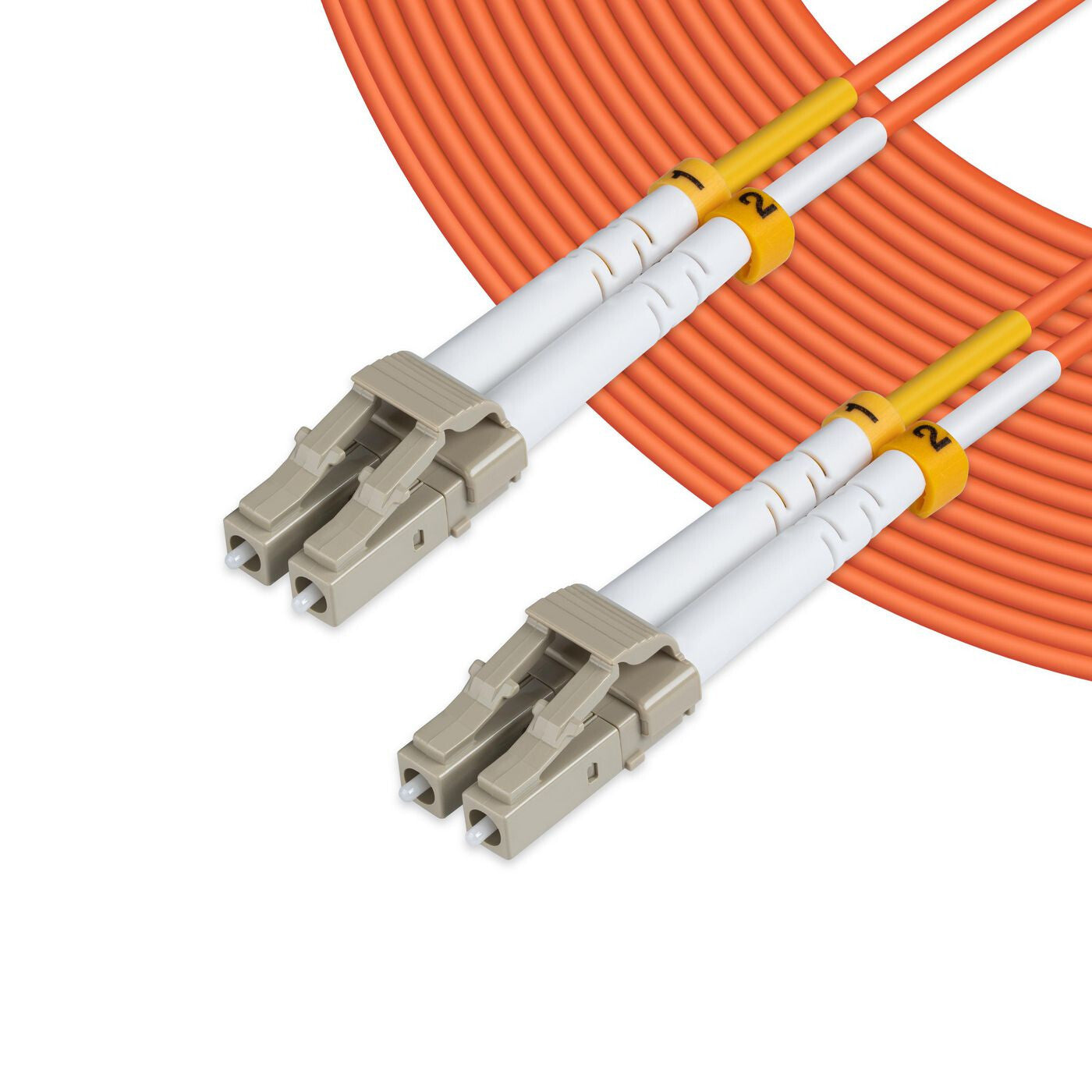

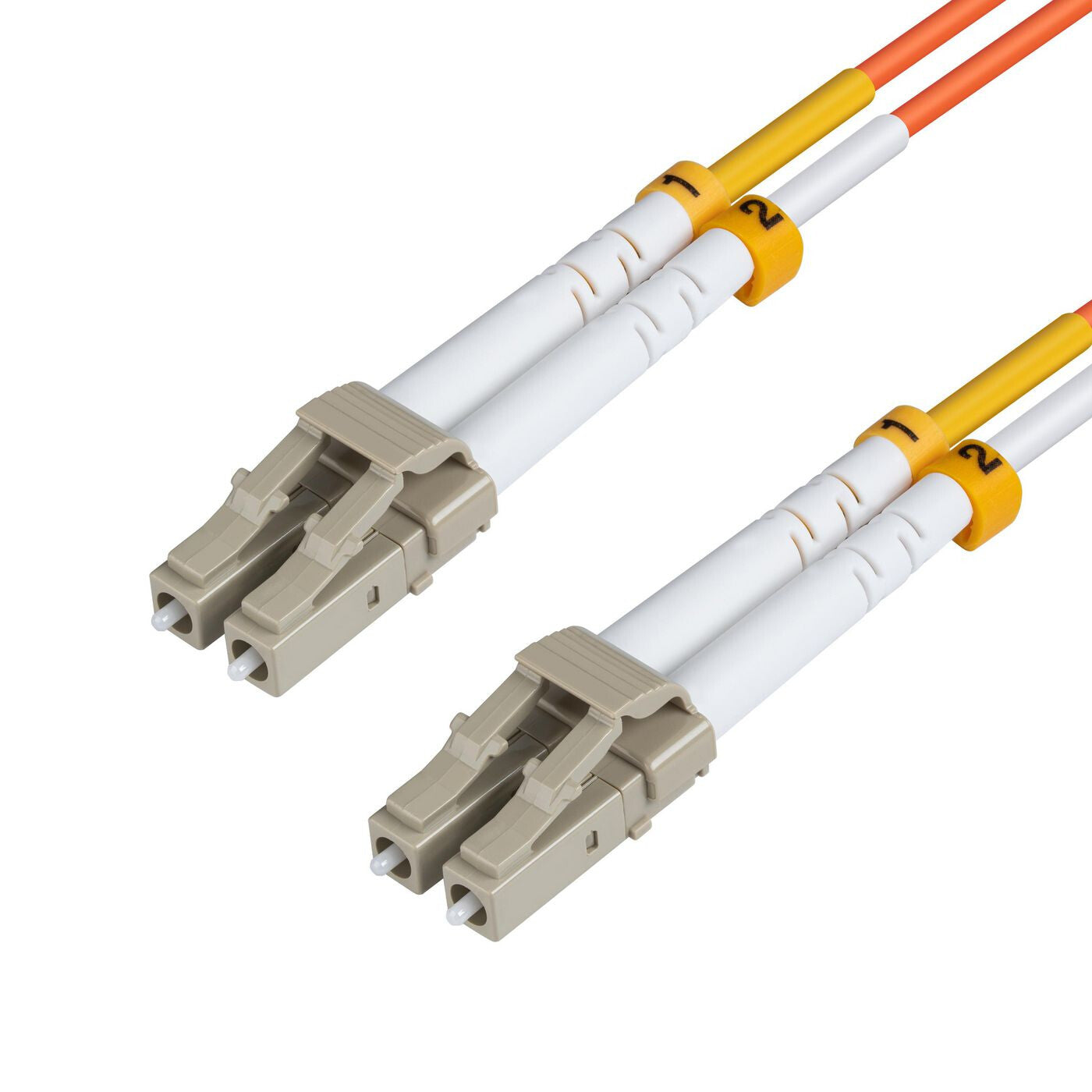

Microconnect FIB440010 InfiniBand/fibre optic cable 10 m LC Orange
Microconnect FIB440010 InfiniBand/fibre optic cable 10 m LC Orange
Regular price
£7.69 GBP
Regular price
Sale price
£7.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB440010
15 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Optical Fibre Cable, LC-LC, Multimode, Duplex, OM1 (Orange) 10m
The 62.5/125µm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data centers, telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. OM1 patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 62.5 µm |
| Full duplex | Yes |
| Product colour | Orange |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | LC |
| Connector 1 | LC |
| Fibre optic type | OM1 |
| Cable length | 10 m |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Sustainability certificates | RoHS |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 80 g |
| Package height | 22 mm |
| Package depth | 169 mm |
| Package width | 175 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
