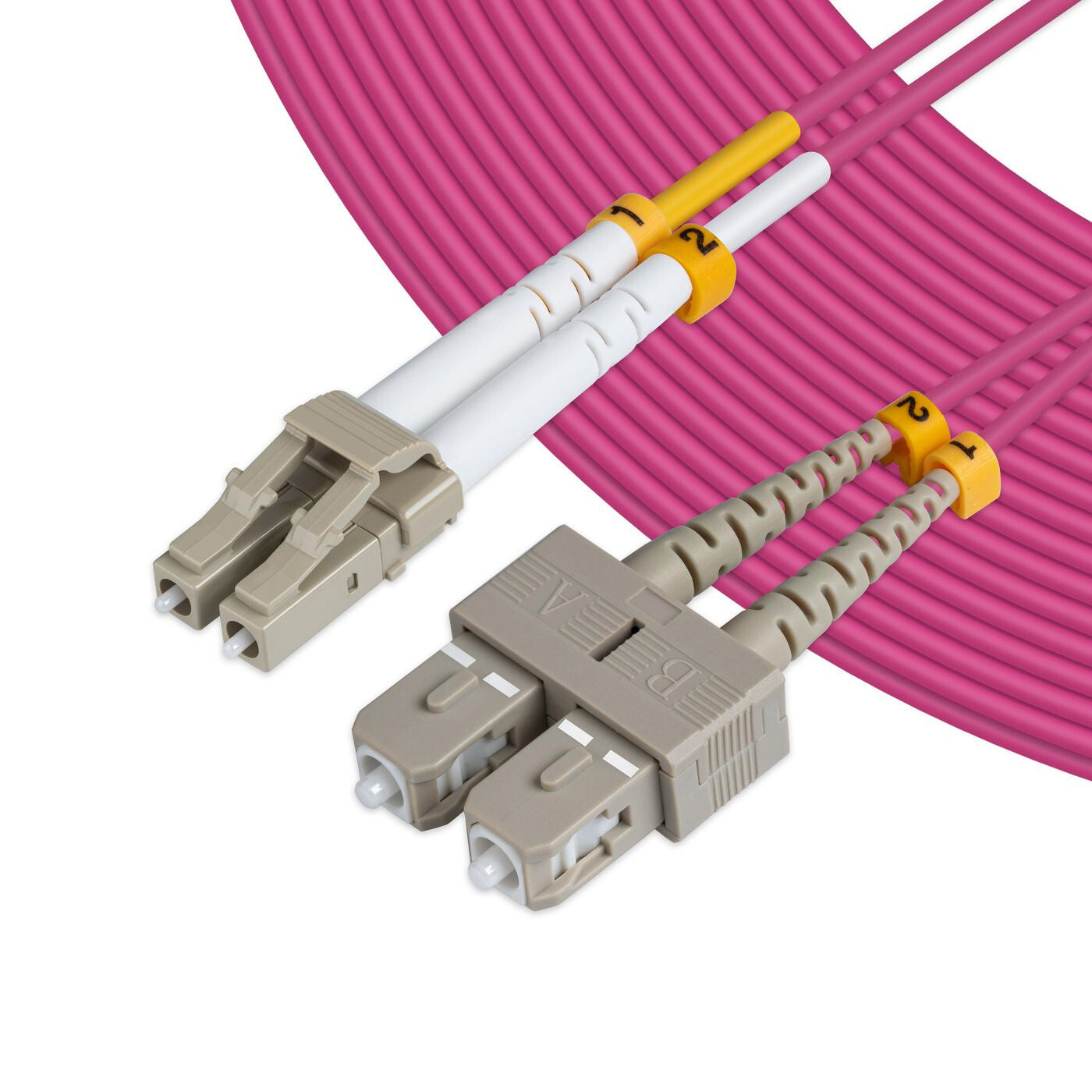

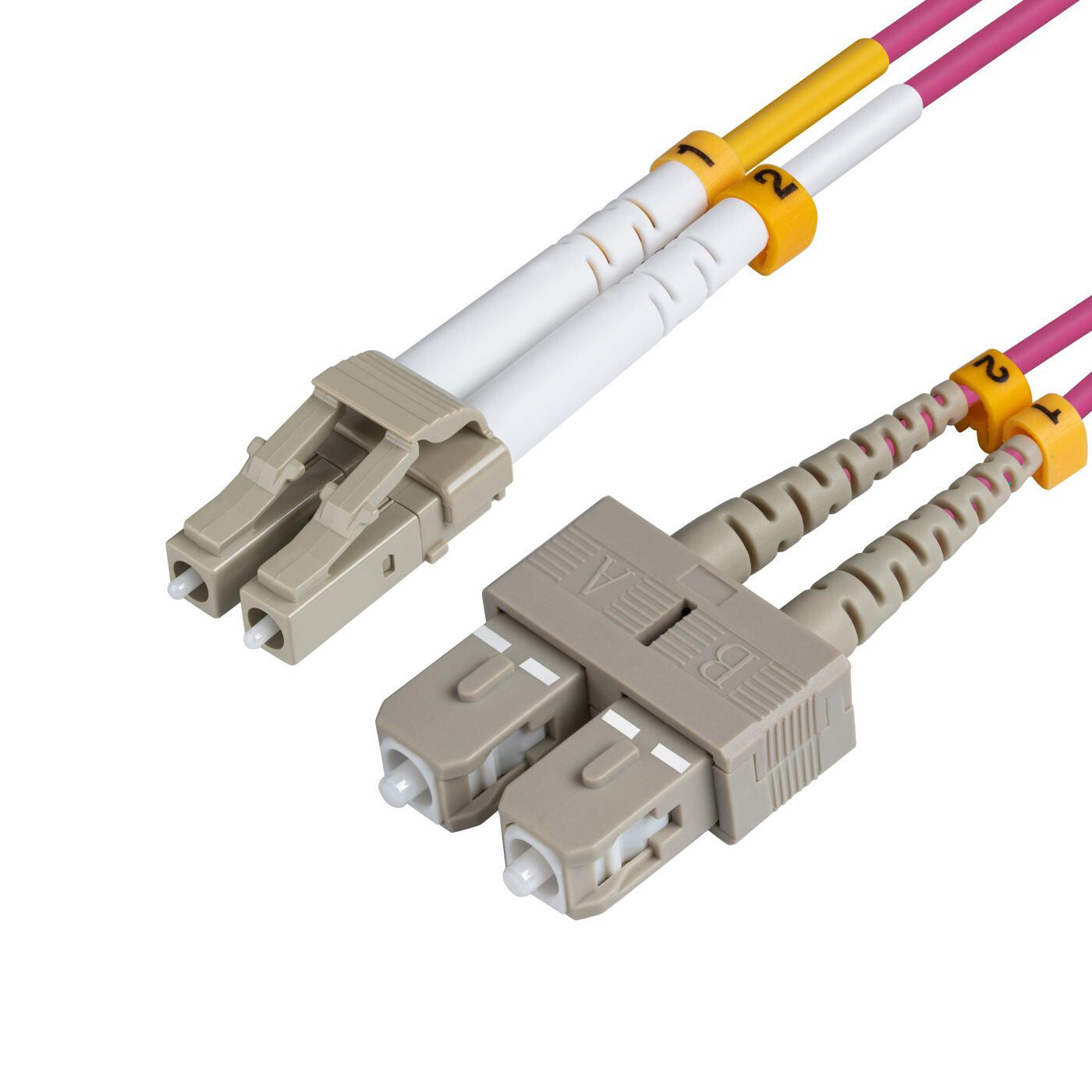

Microconnect FIB422002P InfiniBand/fibre optic cable 2 m LC SC Violet
Microconnect FIB422002P InfiniBand/fibre optic cable 2 m LC SC Violet
Regular price
£6.66 GBP
Regular price
Sale price
£6.66 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB422002P
261 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Optical Fibre Cable, LC-SC, Multimode, Duplex, OM4 (Erica Violet), 2m
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 50 µm |
| Product colour | Violet |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | SC |
| Connector 1 | LC |
| Fibre optic type | OM4 |
| Cable length | 2 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 18 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 28 g |
| Package height | 17 mm |
| Package depth | 30 mm |
| Package width | 68 mm |
