Microconnect

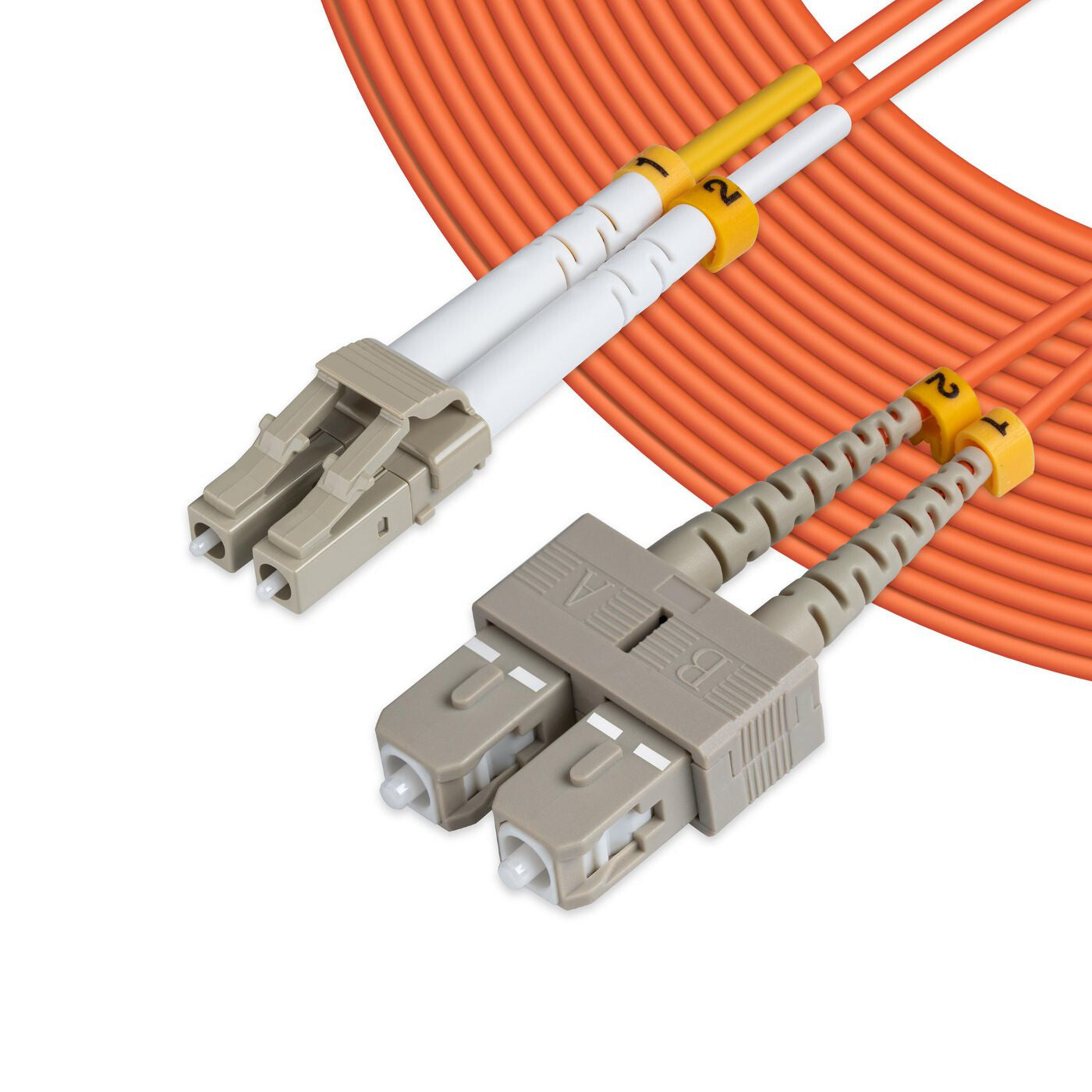

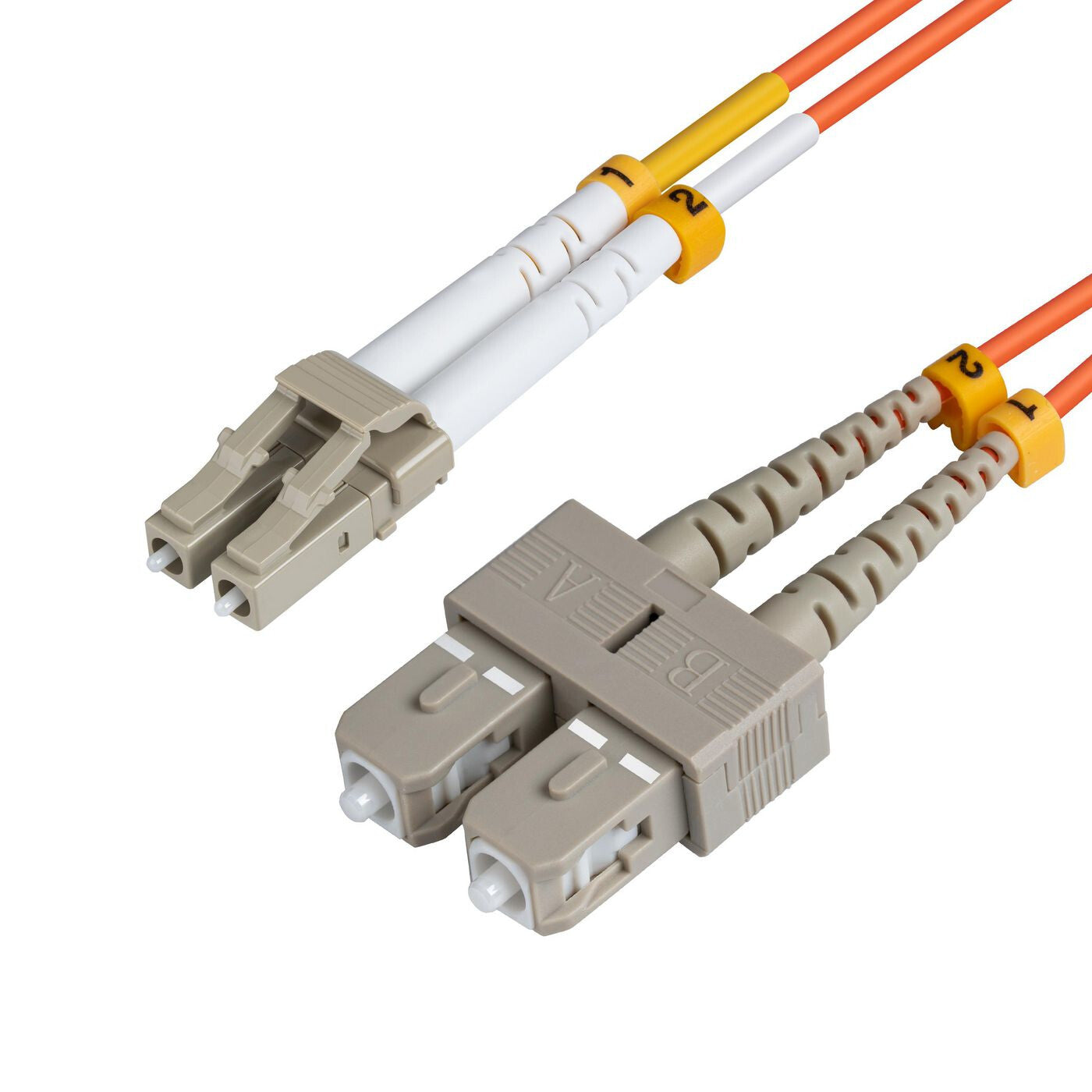

Microconnect FIB420002 InfiniBand/fibre optic cable 2 m LC SC Orange
Microconnect FIB420002 InfiniBand/fibre optic cable 2 m LC SC Orange
Regular price
£11.52 GBP
Regular price
Sale price
£11.52 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB420002
17 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Optical Fibre Cable, LC-SC, Multimode, Duplex, OM1 (Orange), 2m
The 62.5/125µm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data centers, telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. OM1 patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 62.5 µm |
| Full duplex | Yes |
| Product colour | Orange |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | SC |
| Connector 1 | LC |
| Fibre optic type | OM1 |
| Cable length | 2 m |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 20 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 46 g |
| Package height | 20 mm |
| Package depth | 154 mm |
| Package width | 169 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
