Microconnect

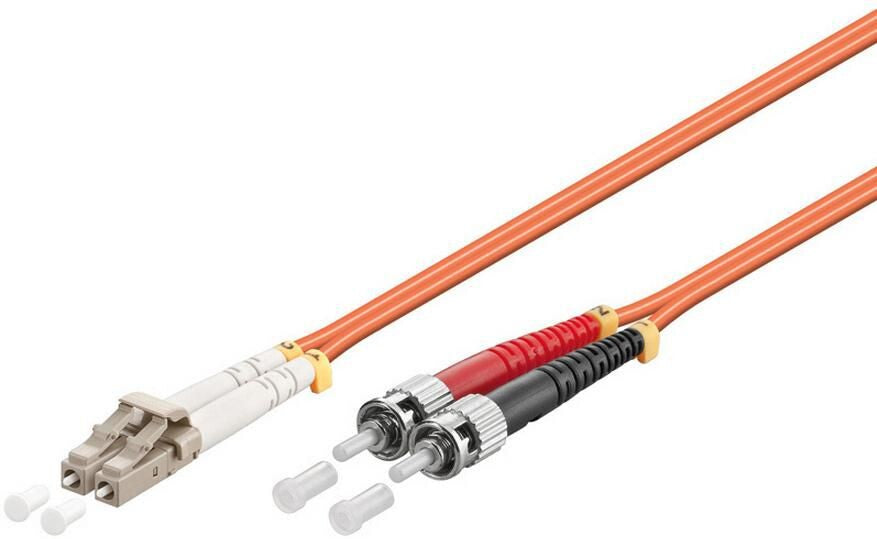

Microconnect FIB412007-2 InfiniBand/fibre optic cable 7 m LC ST Orange

Microconnect FIB412007-2 InfiniBand/fibre optic cable 7 m LC ST Orange

£8.05 GBP
£8.05 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

FIB412007-2

Low stock: 3 left

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant
Optical Fibre Cable, LC-ST, Multimode, Duplex, OM2 (Orange), 7m

The 50/125μm OM2 multimode fiber optic cable is optically tested for insertion loss to ensure high quality. It is very cost-effective for network cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and any place where fiber patch cables are needed. OM2 patch cords are manufactured using LSZH cables and conform to IEC, EIA TIA or Telcordia standards.

Features
Cable length 7 m
Fibre optic type OM2
Connector 1 LC
Connector 2 ST
Connector 2 gender Male
Connector 1 gender Male
Product colour Orange
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Insertion loss 0.3 dB
Jacket material Low smoke zero halogen (LSZH)
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 70 g
Bending radius 6 cm
Packaging data
Package weight 80 g
Other features
Attenuation (max) 0.4 dB/km
