Microconnect FIB412005 InfiniBand/fibre optic cable 5 m LC ST Blue

Microconnect FIB412005 InfiniBand/fibre optic cable 5 m LC ST Blue

£6.05 GBP
£6.05 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

FIB412005

25 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant

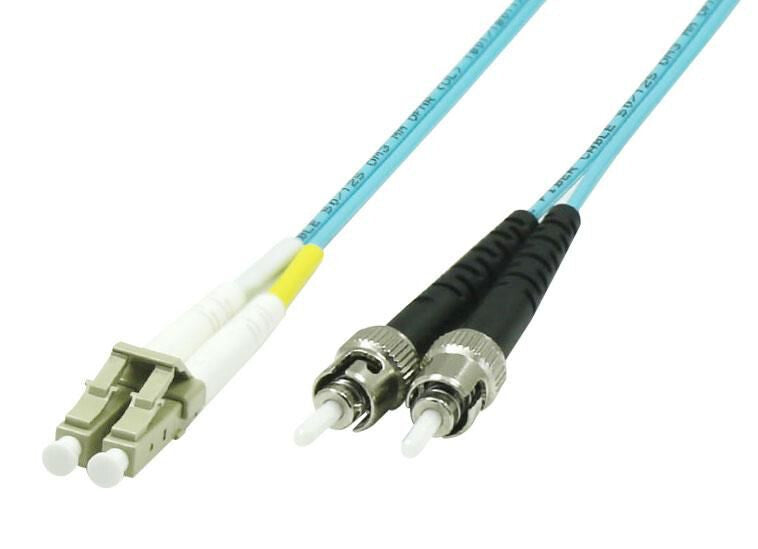

Optical Fibre Cable, LC-ST, Multimode, Duplex, OM3 (Aqua Blue), 5m

The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.

Features
Jacket material Low smoke zero halogen (LSZH)
Insertion loss 0.3 dB
Fiber mode structure Multi-mode
Cladding diameter 125 µm
Core diameter 50 µm
Product colour Blue
Connector 2 ST
Connector 1 LC
Fibre optic type OM3
Cable length 5 m
Technical details
Compliance certificates RoHS
Doesn't contain Halogen
Sustainability certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Weight 50 g
Cable diameter 2 mm
Packaging data
Package weight 52 g
Package height 25 mm
Package depth 175 mm
Package width 185 mm
Logistics data
Harmonized System (HS) code 85447000
Other features
Core / cladding diameter 50/125 µm
