Microconnect

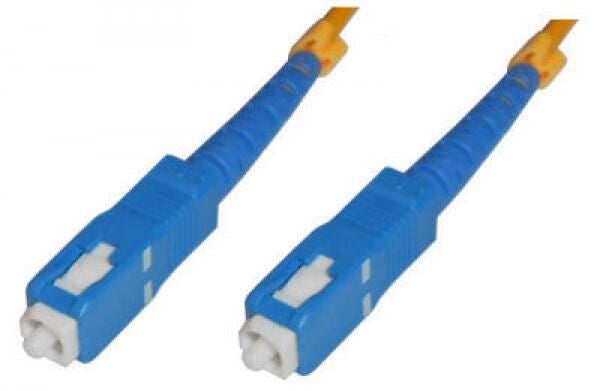

Microconnect FIB224001 InfiniBand/fibre optic cable 1 m SC Yellow
Microconnect FIB224001 InfiniBand/fibre optic cable 1 m SC Yellow
Regular price
£5.76 GBP
Regular price
Sale price
£5.76 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:FIB224001
55 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Optical Fibre Cable, SC-SC, Singlemode, Simplex OS2 (Yellow), 1m
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Single-mode |
| Cladding diameter | 125 µm |
| Core diameter | 9 µm |
| Product colour | Yellow |
| Connector 2 | SC |
| Connector 1 | SC |
| Fibre optic type | OS2 |
| Cable length | 1 m |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 50 g |
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Package weight | 100 g |
| Package height | 12 mm |
| Package depth | 185 mm |
| Package width | 198 mm |
