Microconnect FIB222007-4 InfiniBand/fibre optic cable 7 m SC Violet

Microconnect FIB222007-4 InfiniBand/fibre optic cable 7 m SC Violet

FIB222007-4

£9.87 GBP£8.23 GBP
£0.00 GBP £9.87 GBP£8.23 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant
  • Fibre Standard G.652.D

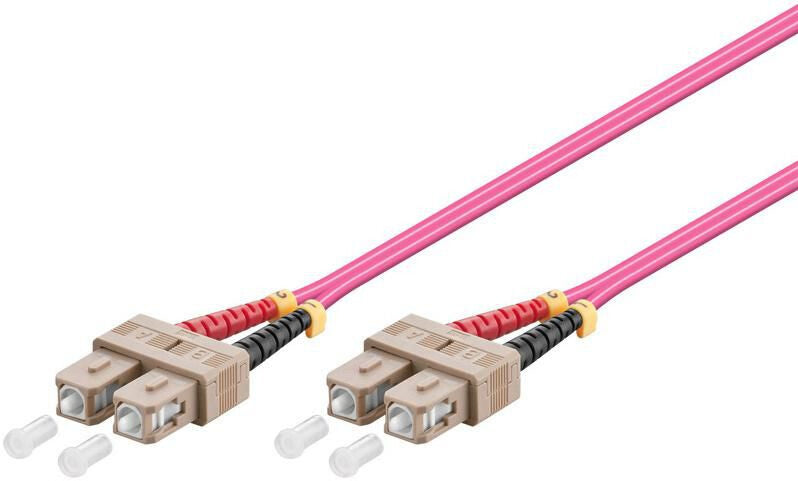

Optical Fibre Cable, SC-SC, Multimode, Duplex OM4 (Erica Violet), 7m

OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.

Features
Cable length 7 m
Fibre optic type OM4
Connector 1 SC
Connector 2 SC
Connector 2 gender Male
Connector 1 gender Male
Product colour Violet
Full duplex Yes
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Insertion loss 0.3 dB
Jacket material Low smoke zero halogen (LSZH)
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 90 g
Bending radius 6 cm
Packaging data
Package width 185 mm
Package depth 180 mm
Package height 27 mm
Package weight 100 g
Other features
Attenuation (max) 0.4 dB/km
