Microconnect DP-MMG-5000MBV1.4OP DisplayPort cable 50 m Black
Microconnect DP-MMG-5000MBV1.4OP DisplayPort cable 50 m Black
SKU:DP-MMG-5000MBV1.4OP
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Supporting 8K60Hz, 32.4Gbps
- Sampling : YUV 4:4:4
- Outer Diameter: 4,8mm, very flexible
- Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
- Supports EDID, HDCP (2.2), HDR (High Dynamic Range ), HBR3
- Hybrid optical cable with fibre and copper wire

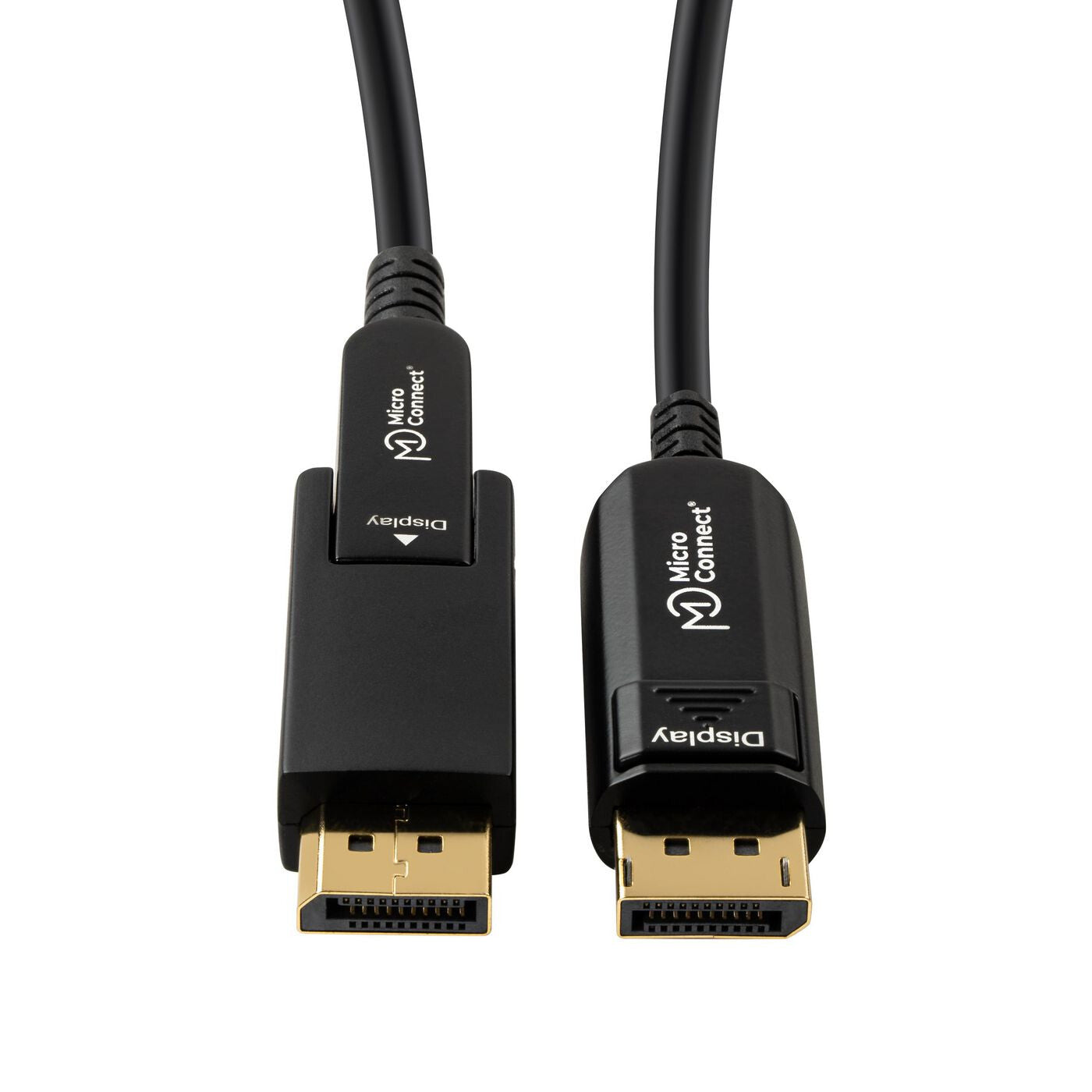

- Has Source & Display clearly printed on the connector for easy identification
- No loss of signal – delivering crystal clear digital images instantly
- Low RFI / EMI profile for sensitive applications
- Has high pulling strength and compression load
- as an extra feature it comes with a DisplayPort adapter, which enables you to use it from a DisplayPort source to a DisplayPort monitor.
Premium is a series of high-quality products within the MicroConnect brand, designed with premium materials, reliable performance, and a sharp modern design for professional connectivity solutions.
See the full Premium Assortment at the following link: https://www.eetgroup.com/inspiration/microconnect-premium
This active optical Mini DisplayPort – DisplayPort 1.4 Cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations. This cable also comes with an additional DisplayPort adapter, which makes it possible to use it also as a DisplayPort Male to DisplayPort male cable if needed.
| Features | |
|---|---|
| Cable length | 50 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| 3D | Yes |
| Latching connectors | Yes |
| Product colour | Black |
| Cable material | Fiber optic |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 32.4 Gbit/s |
| Packaging data | |
|---|---|
| Cable diameter | 4.8 mm |
| Weight | 1.5 kg |
| Quantity per pack | 1 pc(s) |
| Package width | 290 mm |
| Package depth | 281 mm |
| Package height | 77 mm |
| Package weight | 2.18 kg |
