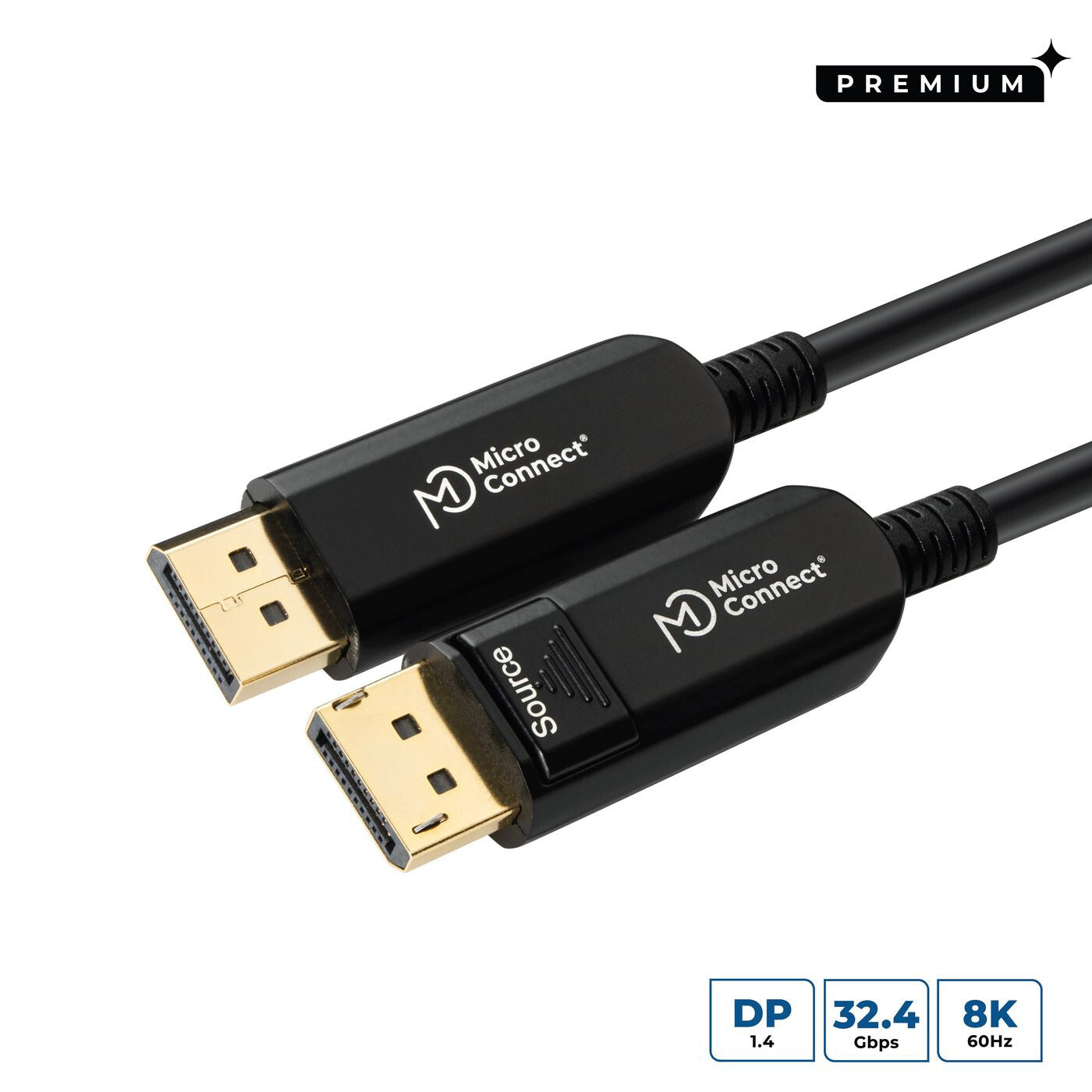

Microconnect DP-MMG-2000V1.4OP DisplayPort cable 20 m Black
Microconnect DP-MMG-2000V1.4OP DisplayPort cable 20 m Black
Regular price
£148.32 GBP
Regular price
Sale price
£148.32 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:DP-MMG-2000V1.4OP
16 in stock
- Supporting 8K60Hz, 32.4Gbps
- Sampling : YUV 4:4:4
- Outer Diameter: 4,8mm, very flexible
- Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
- Supports EDID, HDCP (2.2), HDR (High Dynamic Range ), HBR3
- Hybrid optical cable with fibre and copper wire

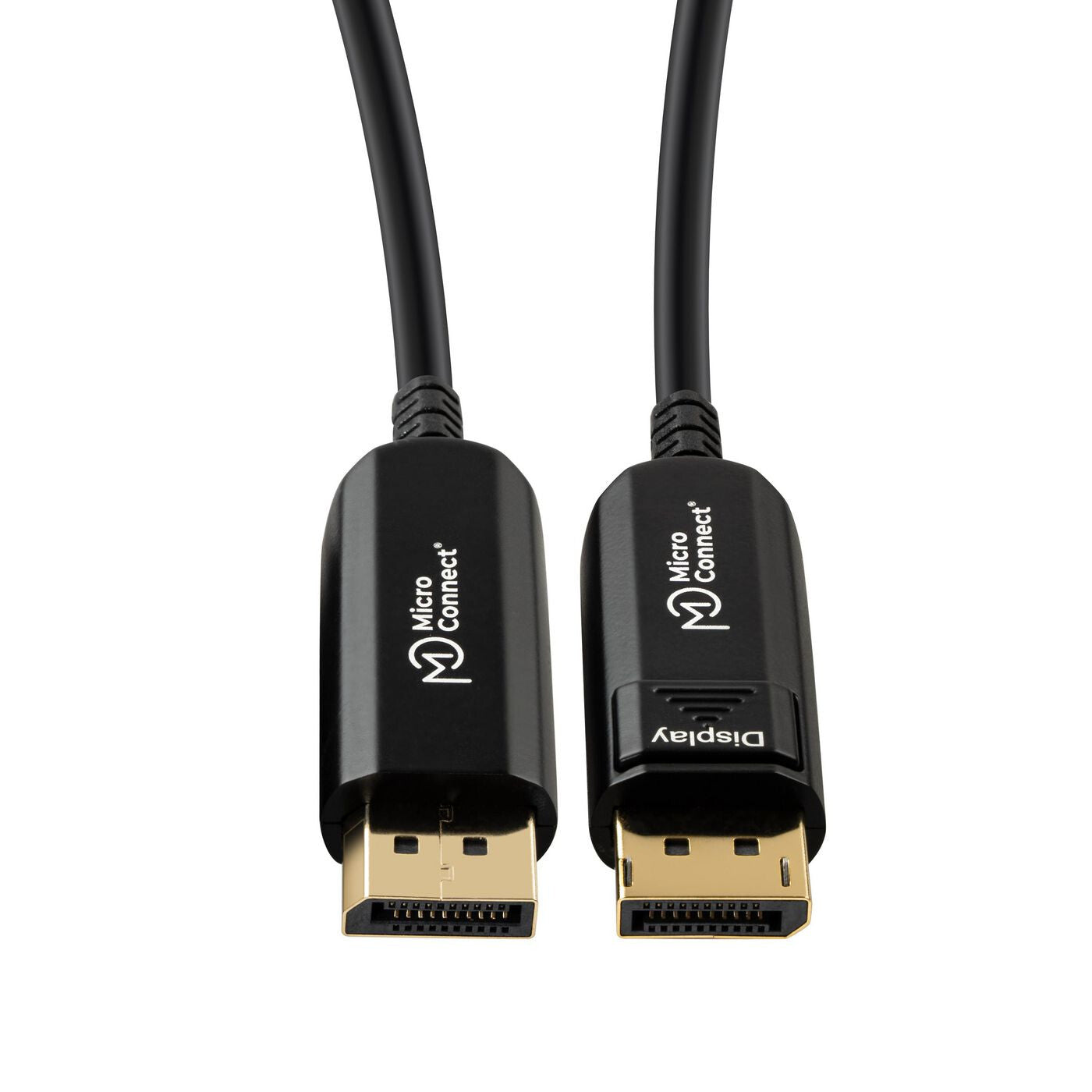

- Has Source & Display clearly printed on the connector for easy identification
- No loss of signal – delivering crystal clear digital images instantly
- Low RFI / EMI profile for sensitive applications
- Has high pulling strength and compression load
Premium Optic Fiber DisplayPort 1.4 Cable, 20m
This active optical DisplayPort 1.4 cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations.
| Features | |
|---|---|
| Plug and Play | Yes |
| Data transfer rate | 32.4 Gbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable material | Fiber optic |
| Product colour | Black |
| Latching connectors | Yes |
| 3D | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 120 Hz |
| Supported video modes | 2160p, 4320p |
| Supported graphics resolutions | 4096 x 2160, 7680 x 4320 |
| Maximum resolution | 7680 x 4320 pixels |
| DisplayPort version | 1.4 |
| Connector contacts plating | Gold |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 20 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Packaging data | |
|---|---|
| Package weight | 1.05 kg |
| Package height | 76 mm |
| Package depth | 228 mm |
| Package width | 238 mm |
| Quantity per pack | 1 pc(s) |
| Weight | 950 g |
| Cable diameter | 4.8 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
