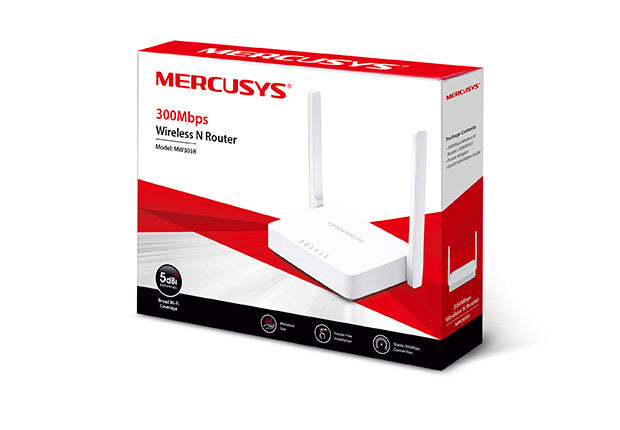

Mercusys 300Mbps Wireless N Router
Mercusys 300Mbps Wireless N Router
SKU:MW305R
Low stock: 10 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 300Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads
- Three 5dBi antennas greatly increase wireless signal strength, size and stability
- Intuitive webpage guides you through the setup process in minutes
Powerful Wi-Fi in the
Palm of Your Hand
300Mbps Wireless N Router
Convenient , Compact Design
Advances in R&D have allowed us to create a router that fits in the palm of your hand, without compromising its performance. High quality components, including the MediaTek Chipset, sit at the core of the router, allowing it to be as powerful as it is small.
Three-Step Installation
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your MW305R in minutes.
Network Securityon
Comprehensive security features help your devices form safe connections to the MW305R.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| Memory card slot(s) | No |
| Management features | |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
|---|---|
| Security algorithms | WPA-PSK, WPA2-PSK |
| Guest access | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4 |
| Design | |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Antenna | |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 3 |
| Transmit power | 0 dBmW |
| Features | |
|---|---|
| Certification | CERoHS |
| Power | |
|---|---|
| Power source type | AC |
| Output voltage | 5 V |
| Output current | 0.6 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 34.7 mm |
| Depth | 115.4 mm |
| Width | 168.9 mm |
| Packaging data | |
|---|---|
| Package width | 267 mm |
| Package depth | 198 mm |
| Package height | 68 mm |
| Package weight | 450 g |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
