Manhattan

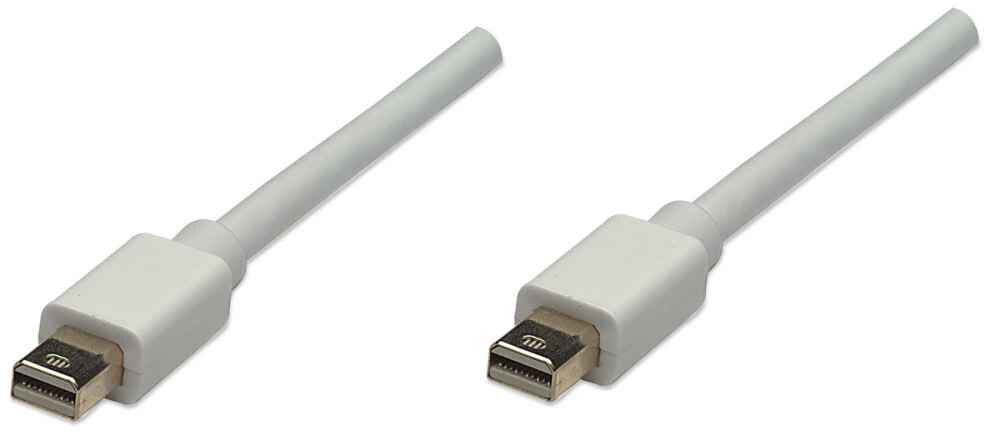

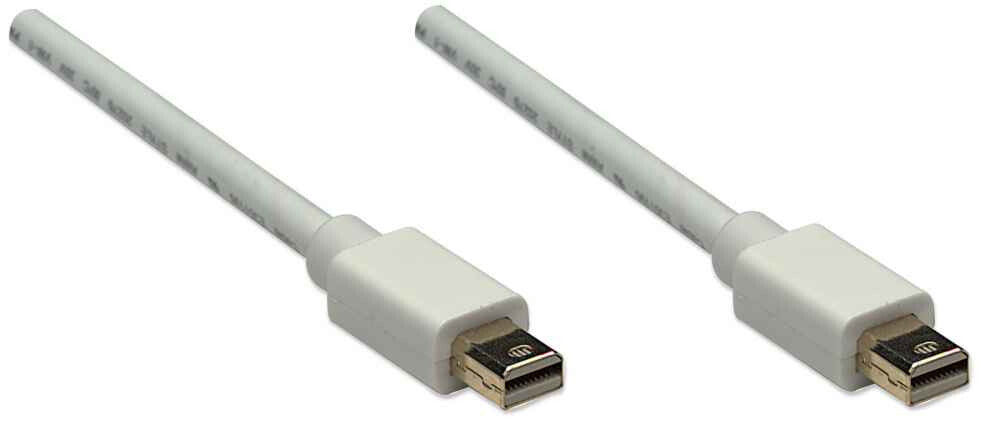

Manhattan Mini DisplayPort 1.2 Cable (Clearance Pricing), 4K@60Hz, 1m, Male to Male, Bi-Directional, White, Equivalent to MDPMM1MW, Lifetime Warranty, Polybag
Manhattan Mini DisplayPort 1.2 Cable (Clearance Pricing), 4K@60Hz, 1m, Male to Male, Bi-Directional, White, Equivalent to MDPMM1MW, Lifetime Warranty, Polybag
SKU:324557
75 in stock

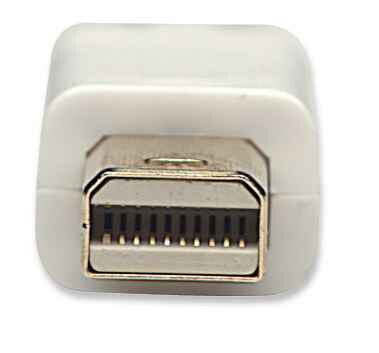

- Mini DisplayPort 20-pin male to Mini DisplayPort 20-pin male with strain relief boots
- Delivers high-bandwidth, bi-directional, 14.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
- 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep colour
- Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
- Fully shielded to reduce EMI and other interference sources
- Supports the HDCP and DPCP content protection standards
- Lifetime Warranty
High-definition performance for personal computing.
Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep colour and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
Features | |
---|---|
Certification | UL 20276ISO 9002 |
Data transfer rate | 14.8 Gbit/s |
AWG wire size | 32 |
Jacket material | Acrylonitrile butadiene styrene (ABS) |
Magnetically shielded | Yes |
Cable shielding | Aluminum mylar foil |
Product colour | White |
Maximum refresh rate | 60 Hz |
Maximum resolution | 4096 x 2160 pixels |
DisplayPort version | 1.2 |
Connector contacts plating | Gold |
Connector 2 form factor | Straight |
Connector 1 form factor | Straight |
Connector 2 gender | Male |
Connector 1 gender | Male |
Connector 2 | Mini DisplayPort |
Connector 1 | Mini DisplayPort |
Cable length | 1 m |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 0 - 96% |
Storage temperature (T-T) | -25 - 85 °C |
Operating temperature (T-T) | 0 - 50 °C |
Packaging data | |
---|---|
Package type | Polybag |
Quantity per pack | 1 pc(s) |
Weight | 44 g |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
