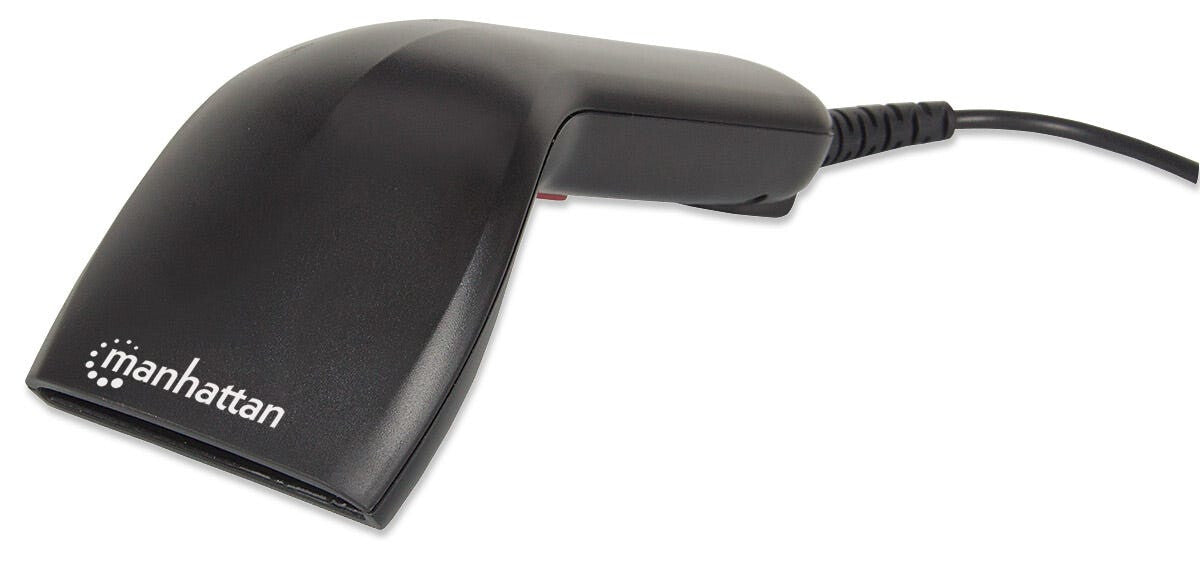

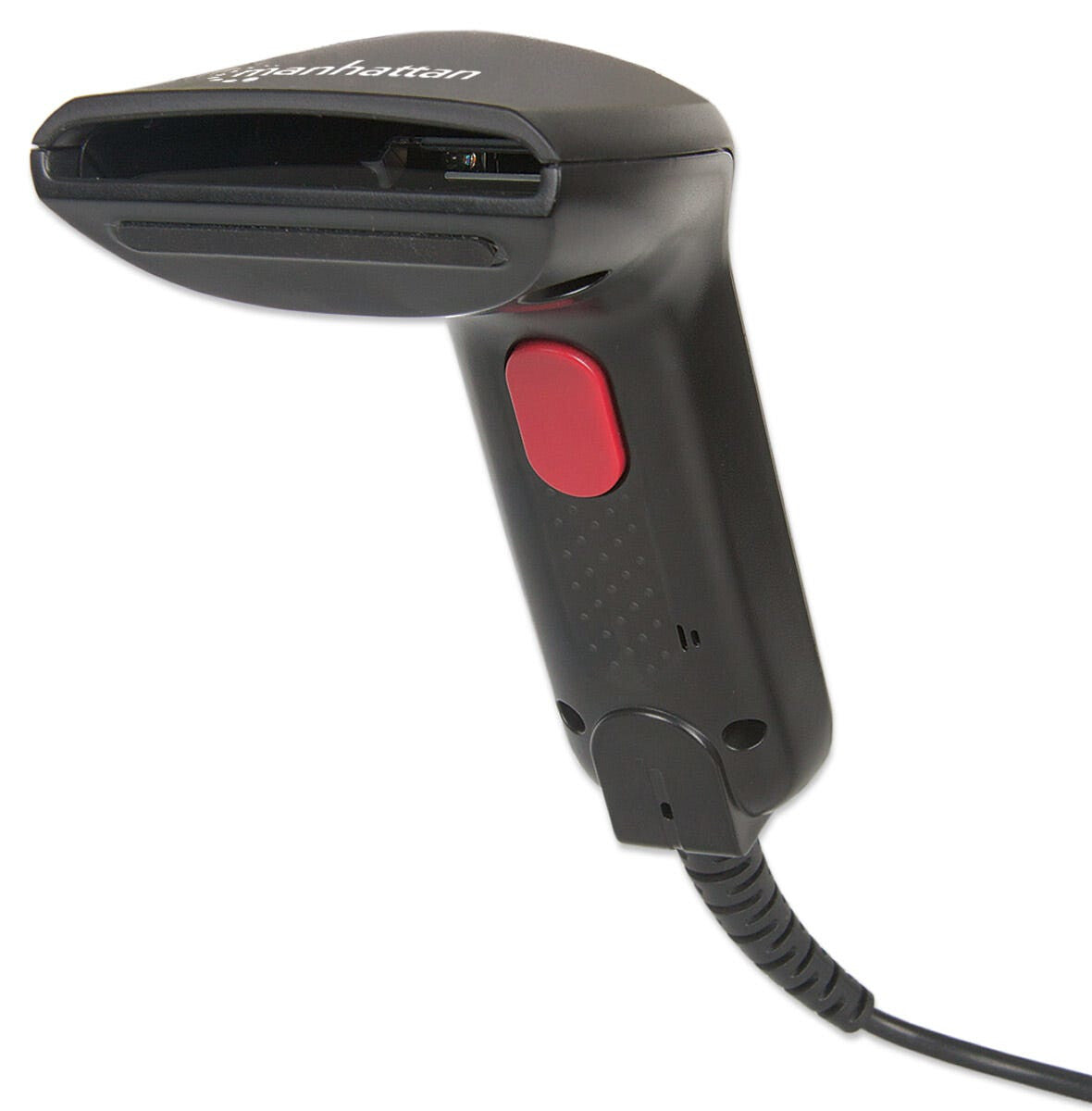

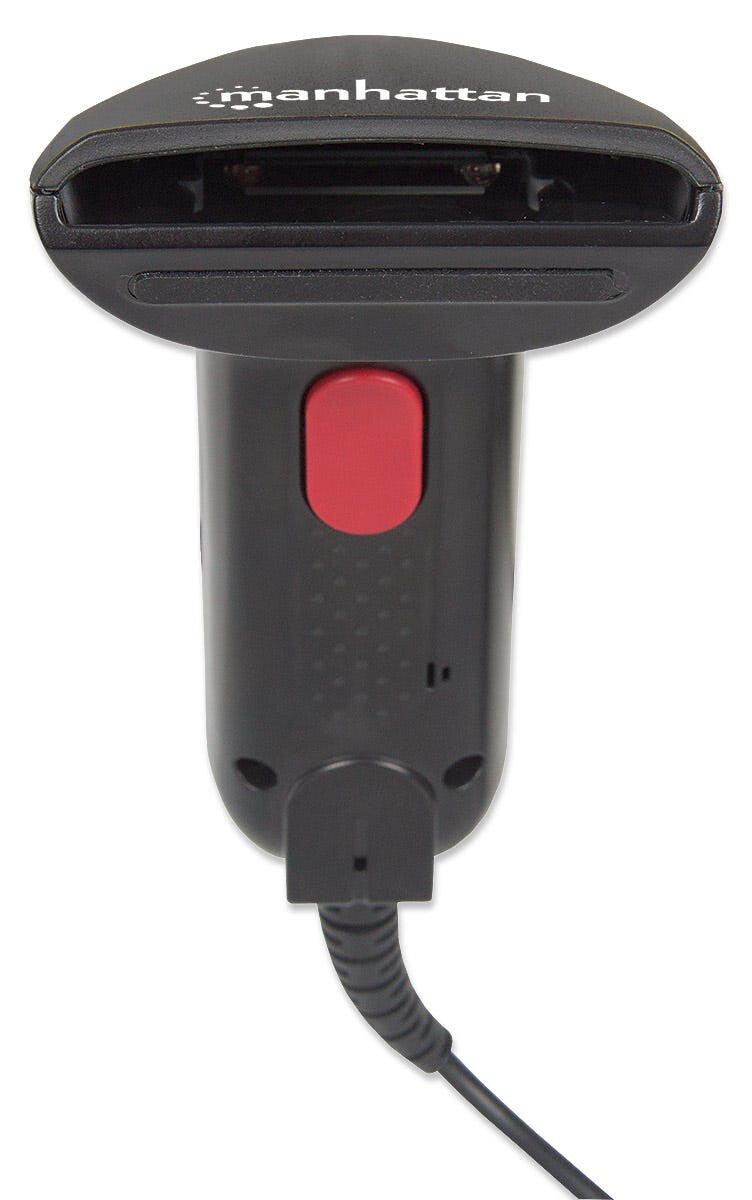

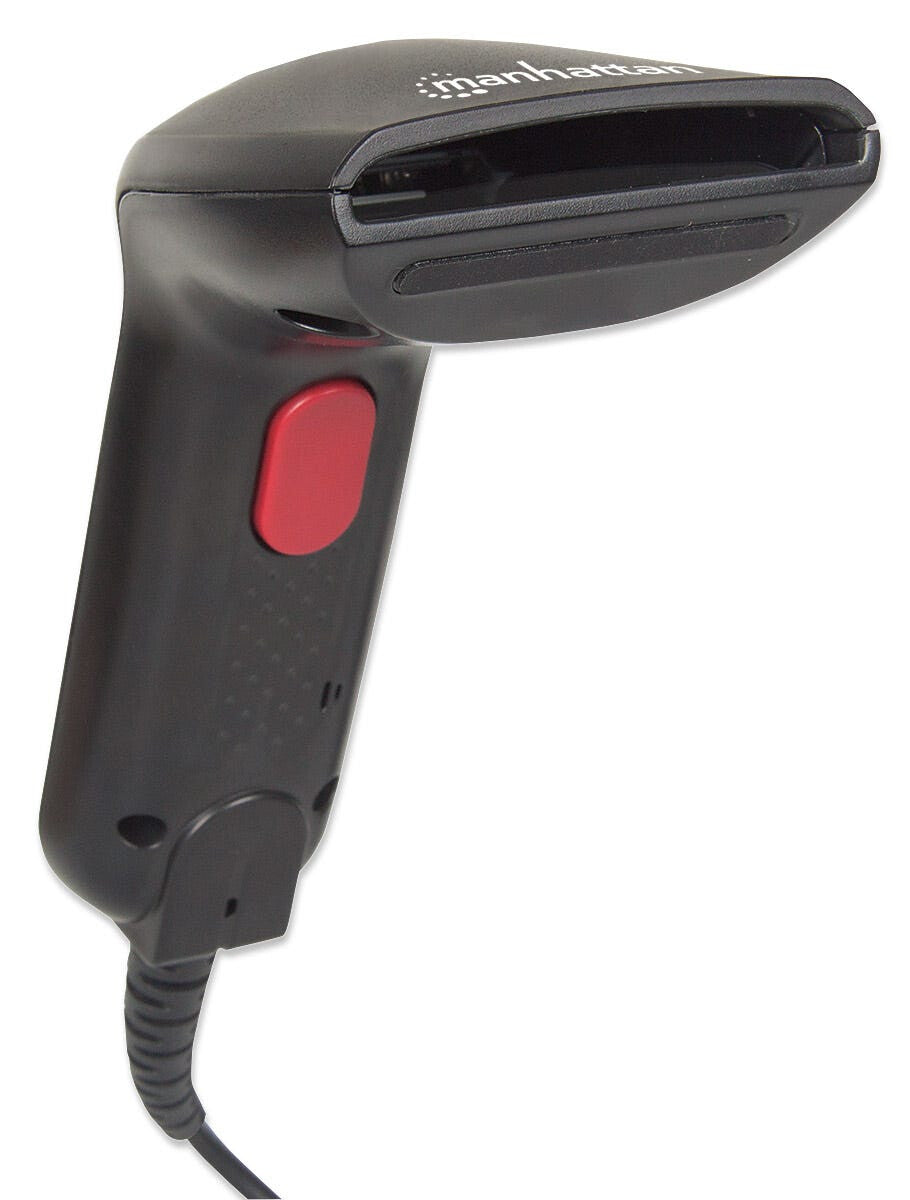

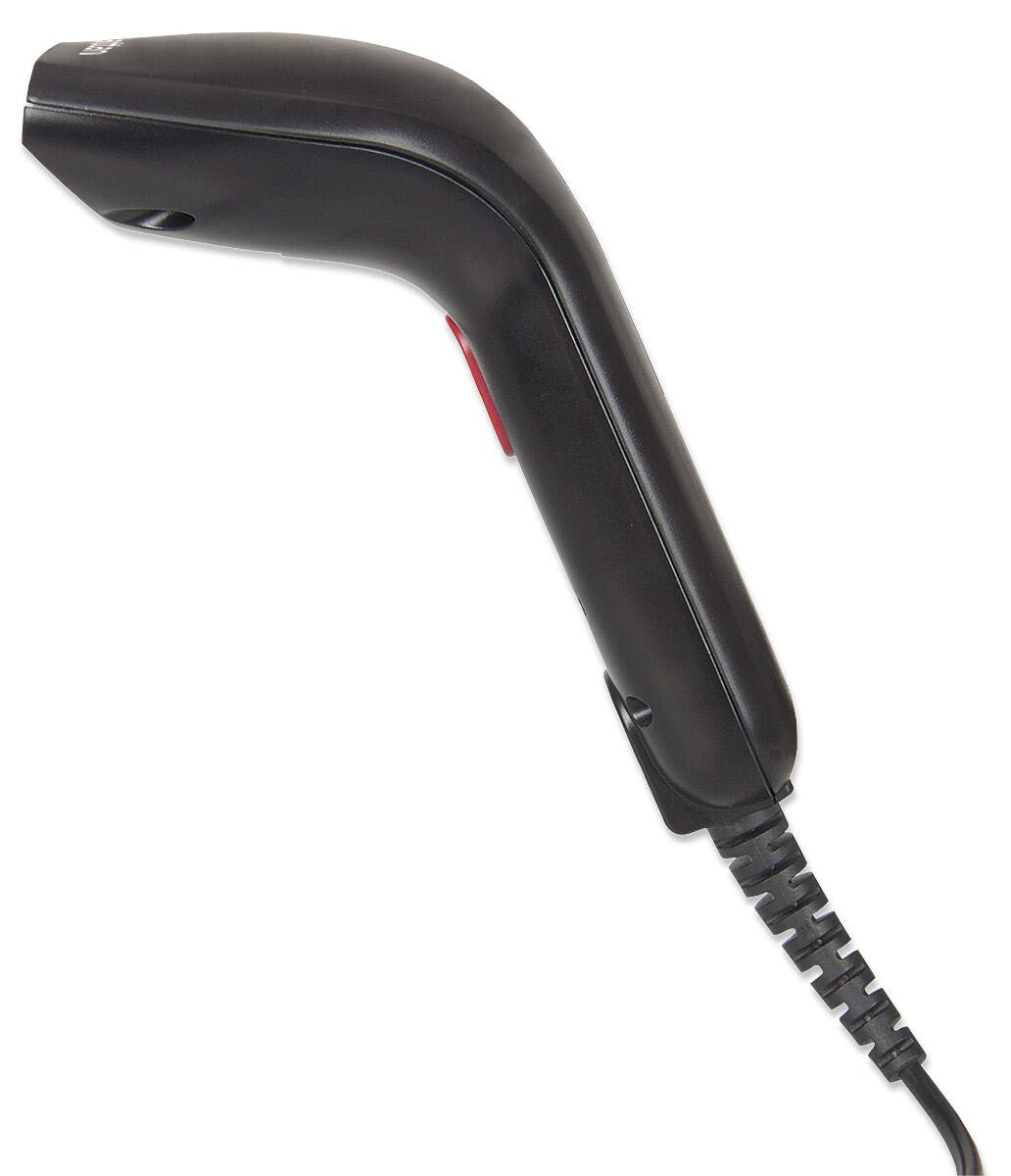

Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty
Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty
SKU:178488
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Helps speed data entry, reduce errors and improve efficiency; ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if directly entered from keyboard
- Wide scan field provides quick, accurate reads with up to 100 scans per second
- Detects many popular symbologies including UPC, EAN, 1D barcodes, ASCII, GS1 DataBar Family and more
- Switchable interface integrates with most PCs
- Easy to install and use without software or special training
- Three-Year Warranty
Improve speed, accuracy and productivity._x000D_
Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its USB cable interface integrates with most PCs without an external power supply. With a scan rate of 100 scans per second and an accurate read range of up to 60 mm (2.4 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
| Scanning | |
|---|---|
| Scanner resolution | 0.127 mm |
| Maximum scan width | 6 cm |
| Wavelength | 632 nm |
| Light levels (direct sunlight) | 0 - 5000 lx |
| Read rate (max) | 100 reads/s |
| Working distance | 6 cm |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C. |
| Sensor type | CCD |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Scanner type | 1D |
| Type | Handheld bar code reader |
| Ports & interfaces | |
|---|---|
| Cable length | 1.524 m |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Certification | • FCC• CE• RoHS |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption | 80 mA |
| Input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 180 g |
| Height | 63.5 mm |
| Depth | 180 mm |
| Width | 80 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
