Logitech

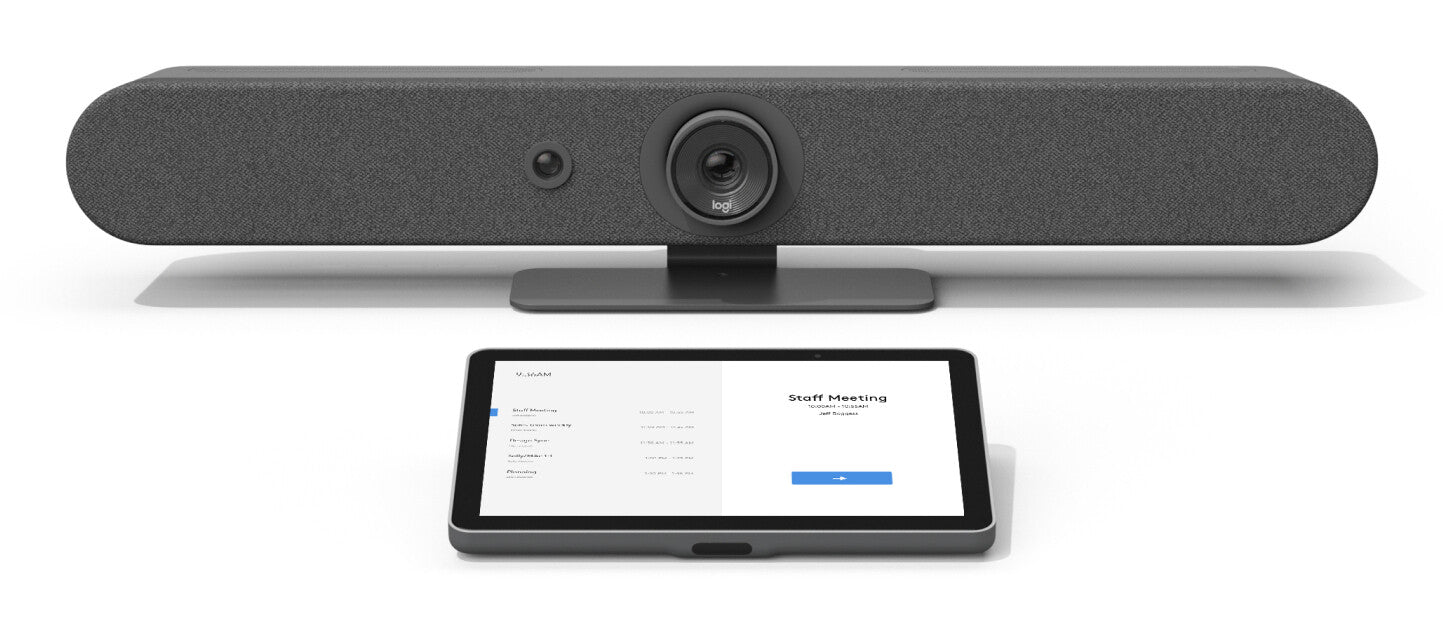

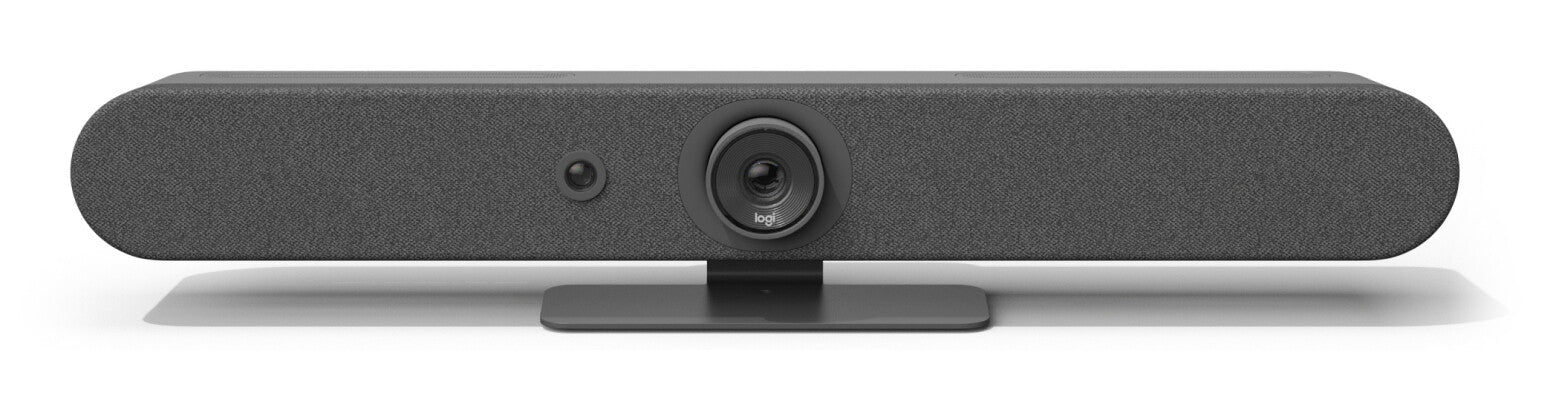

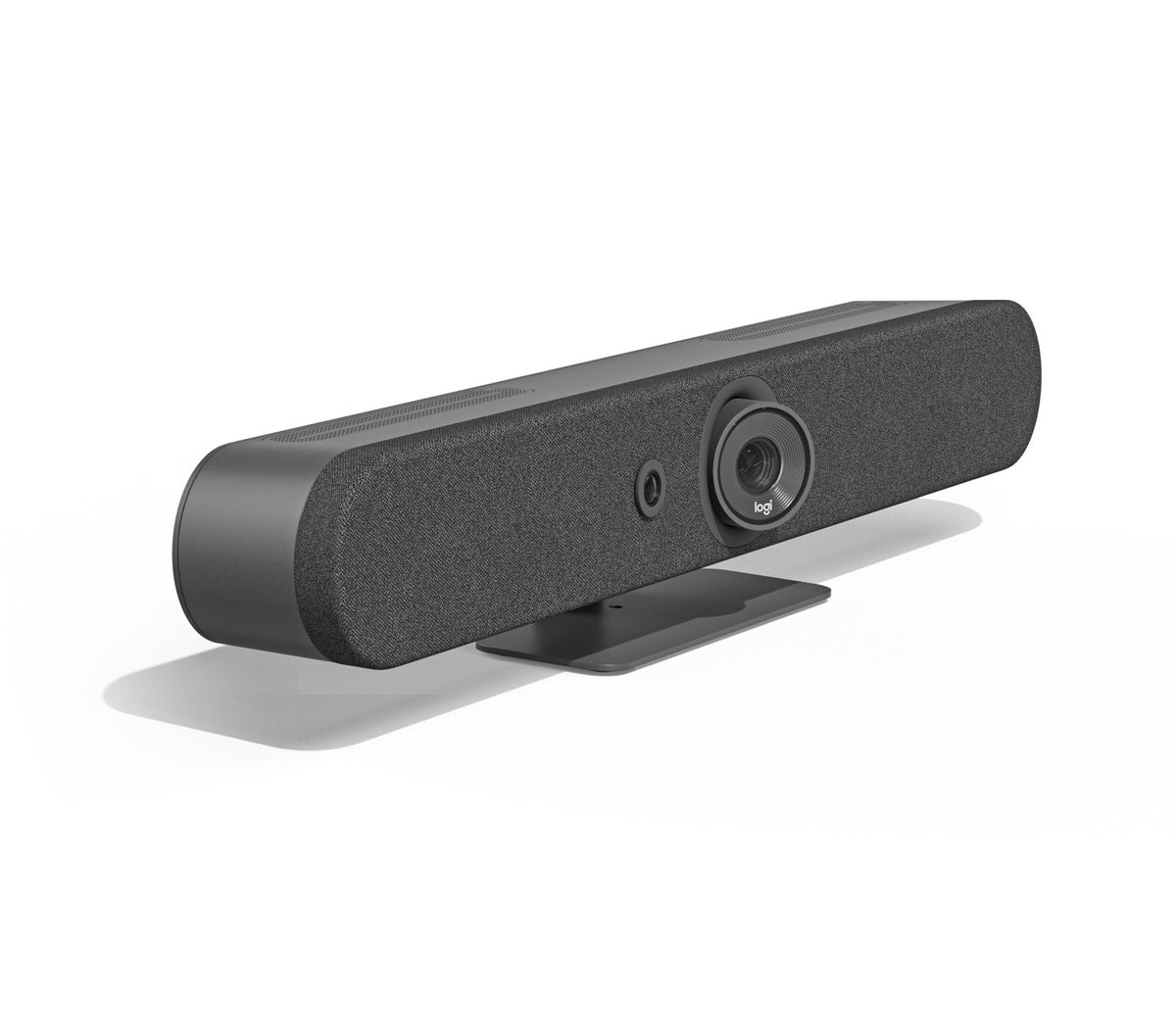

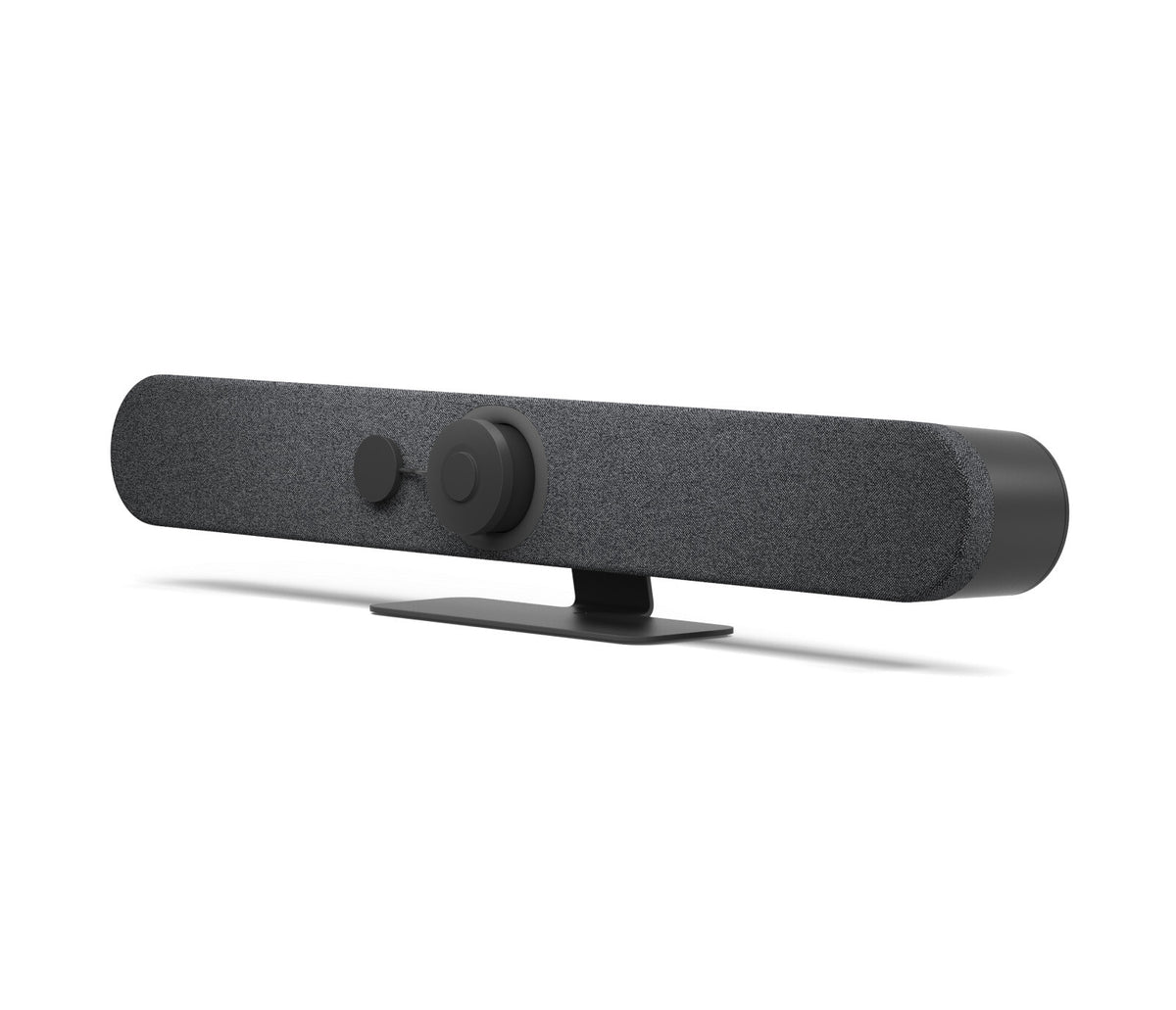

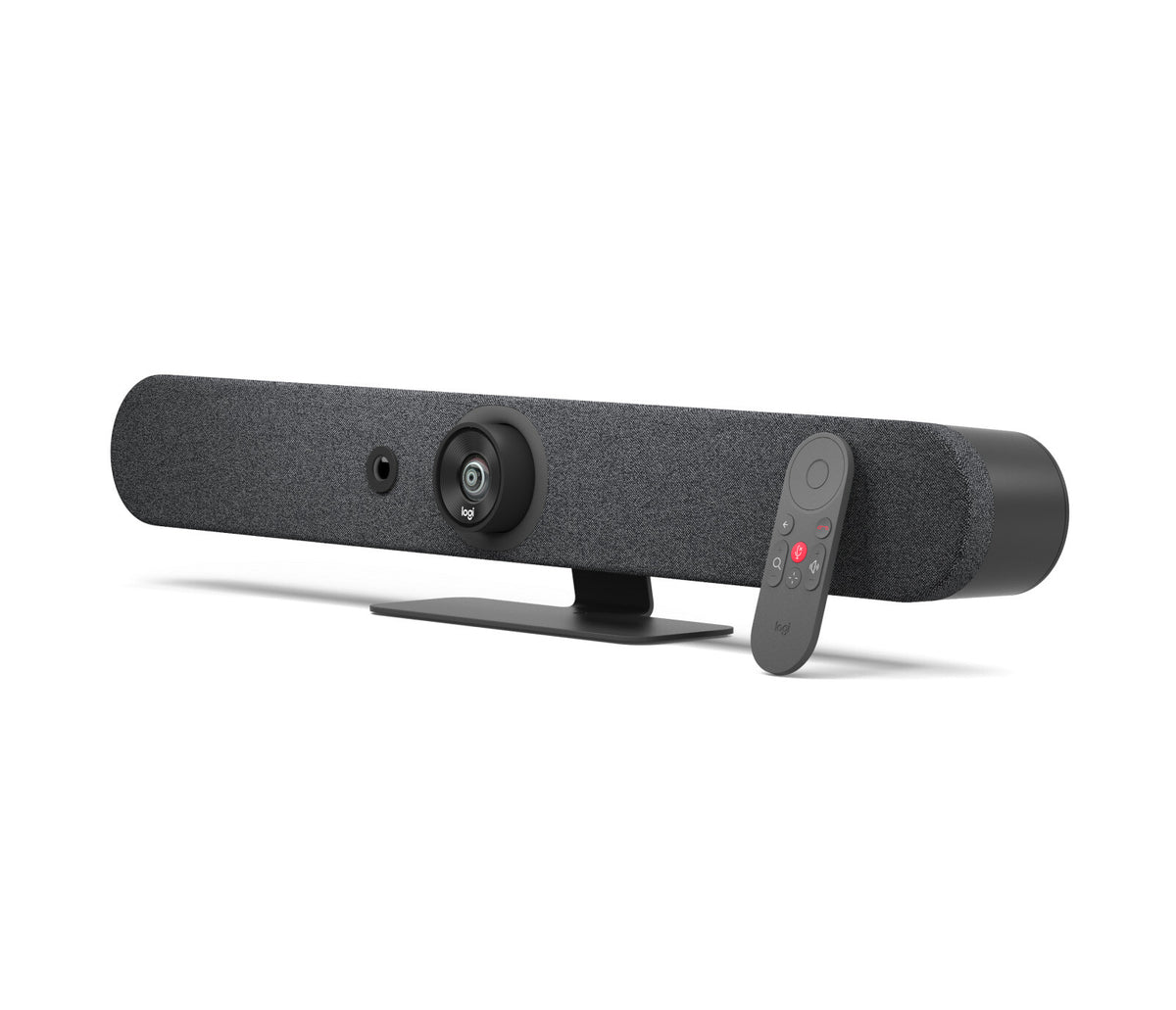

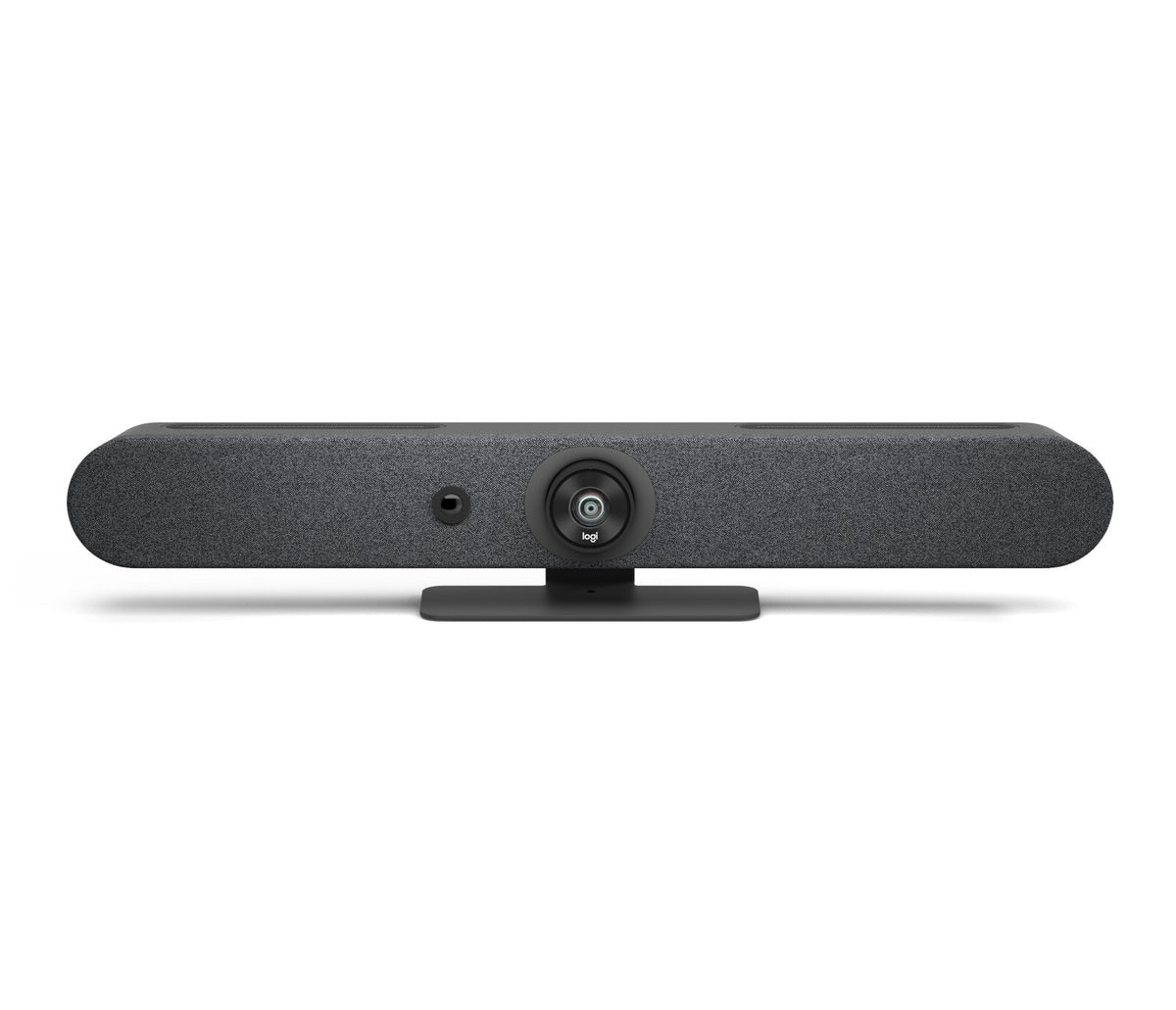

Logitech Rally Bar Mini

Logitech Rally Bar Mini

£2,980.46 GBP
£2,980.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

991-000389

17 in stock

  • 4K Ultra HD 30 fps
  • Built-in speaker(s) RMS rated power: 5 W
  • DC-in jack Ethernet LAN 10,100,1000 Mbit/s Wi-Fi
  • 4x
  • Omnidirectional
  • Power source type: AC Lithium 220 mAh
  • Graphite
Rally Bar Mini
Performance
PTZ control Yes
Tilt angle range -15 - 15°
Pan range -25 - 25°
Product colour Graphite
Video
Maximum frame rate 30 fps
Supported video modes 576p, 720p, 900p, 1440p, 2160p
HD type 4K Ultra HD
Audio
Sample rates 0 - 48 kHz
RMS rated power 5 W
Noise reduction Yes
Echo cancellation Yes
Microphone pick-up range 4.5 m
Audio beamforming Yes
Output voltage Total Harmonic Distortion (THD) 2%
Line-out impedance 4 Ω
Output level 92/99 dB
Built-in speaker(s) Yes
Ports & interfaces
Microphone in Yes
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB connector type USB Type-A, USB Type-C
HDMI output ports quantity 2
HDMI input ports quantity 1
HDMI ports quantity 3
Interface module
Interface module RJ-45 ports quantity 1
Network
Security algorithms 128-bit AES
Supported network protocols IPv4, IPv6
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Camera
Remote control interface Bluetooth
Diagonal field of view 120°
Vertical field of view 80.7°
Horizontal field of view 113°
Digital zoom 4x
Zoom capability Yes
Display
Oleophobic coating Yes
Viewing angle, horizontal 85°
Viewing angle, vertical 85°
Display brightness 400 cd/m²
Touchscreen type Capacitive
Touchscreen Yes
Contrast ratio (typical) 1000:1
Display resolution 1280 x 800 pixels
Display diagonal 25.6 cm (10.1")
Display IPS
Microphone
Number of microphones 6
Sound pressure level (max) 90 dB
Microphone direction type Omnidirectional
Microphone frequency 90 - 16000 Hz
Microphone sensitivity -36 dB
Computer system
Mac operating systems supported MacOS
Windows operating systems supported Yes
Battery
Battery capacity 0.675 Wh
Logistics data
Master (outer) case gross weight 8.87 kg
Master (outer) case length 808 mm
Master (outer) case width 258 mm
Master (outer) case height 302 mm
Harmonized System (HS) code 85176990
System requirements
Minimum system requirements Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software licence (not included)
Features
Cable lock slot type Kensington
Cable lock slot Yes
Motion sensor Yes
Telepresence No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -40 - 70 °C
Heat dissipation 64 BTU/h
Power
Power plug type Type G
Battery technology Lithium
Battery capacity 220 mAh
Number of batteries supported 1
DC input voltage 19 V
Current 4.754 A
AC input voltage 100 - 240 V
Power source type AC
Weight & dimensions
Package weight 8.87 kg
Package height 289 mm
Package depth 802 mm
Package width 252 mm
Weight 4.03 kg
Height 91.4 mm
Depth 101 mm
Width 719 mm
Interface module weight 1 kg
Interface module dimensions (W x D x H) 246.2 x 171.3 x 56.1 mm
Packaging content
Packaging content Logitech Rally Bar Mini video bar Rally Bar Mini Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation
Remote control included Yes
Camera included Yes
Quick start guide Yes
Batteries included Yes
Mounting kit Yes
AC adapter included Yes
HDMI cable length 2 m
Power cable length 2.5 m
Cables included AC, DC, HDMI, USB Type-A to USB Type-C
