Logitech

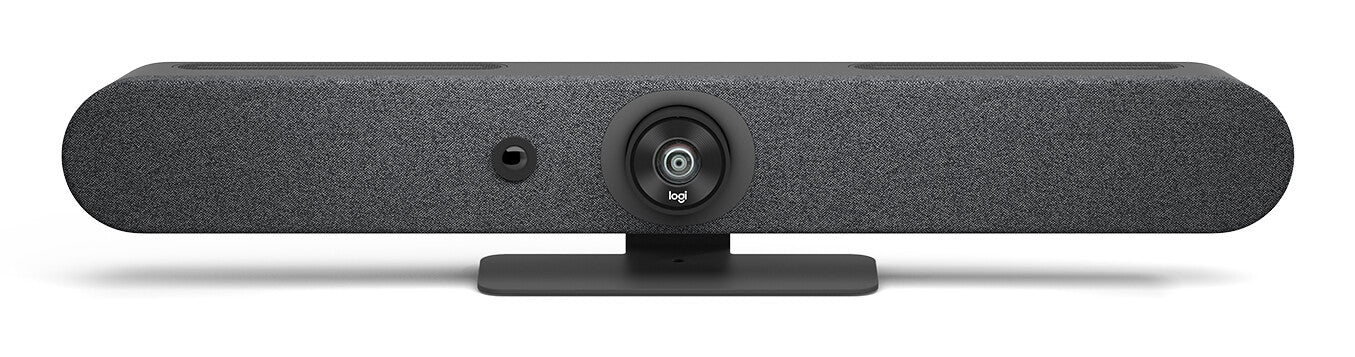

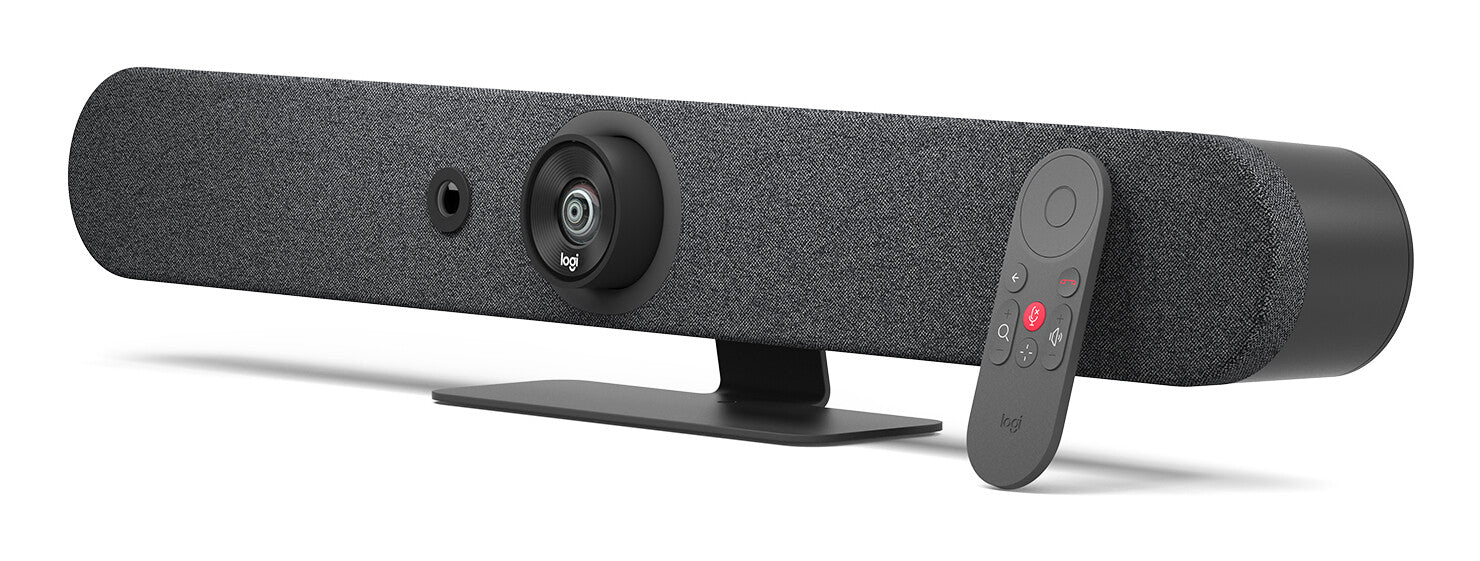

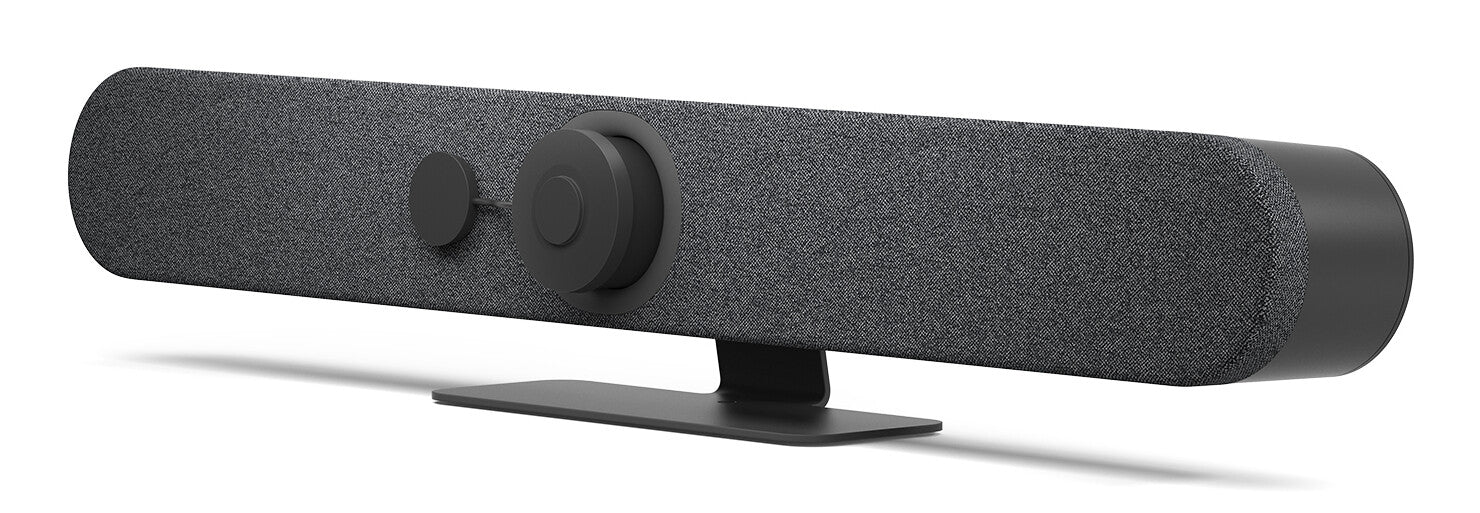

Logitech Rally Bar Mini
Logitech Rally Bar Mini
Regular price
£2,438.39 GBP
Regular price
Sale price
£2,438.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:960-001340
226 in stock
- Logitech extended guarantee adds one year to the original manufacturer's guarantee which provides that your Logitech Rally Bar Mini hardware shall be free from defects in material and workmanship.
- The purchase of a one year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two year limited hardware guarantee.
- Logitech one year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
- The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value, and ensure optimal performance of your Logitech conference room hardware.
- A three year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Rally Bar Mini
The purchase of a one year Logitech extended warranty along with the purchase of Rally Bar Mini adds one additional year to the original Logitech manufacturer's two year limited hardware warranty and is intended to ensure that your Logitech hardware is free from defects in material and workmanship. This extended warranty helps to protect your investment, maximize its value, and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
| Performance | |
|---|---|
| PTZ control | Yes |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Sample rates | 0 - 48 kHz |
| RMS rated power | 8 W |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 4.5 m |
| Audio beamforming | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Line-out impedance | 4 Ω |
| Output level | 92/99 dB |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI ports quantity | 3 |
| Network | |
|---|---|
| Security algorithms | 128-bit AES |
| Supported network protocols | IPv4, IPv6 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Remote control interface | Bluetooth |
| Diagonal field of view | 120° |
| Vertical field of view | 80.7° |
| Horizontal field of view | 113° |
| Digital zoom | 4x |
| Zoom capability | Yes |
| Microphone | |
|---|---|
| Number of microphones | 6 |
| Sound pressure level (max) | 90 dB |
| Microphone direction type | Omnidirectional |
| Microphone frequency | 90 - 16000 Hz |
| Microphone sensitivity | -36 dB |
| Computer system | |
|---|---|
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Yes |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 4.73 kg |
| Master (outer) case length | 330 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 160 mm |
| Harmonized System (HS) code | 85176990 |
| System requirements | |
|---|---|
| Minimum system requirements | Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software licence (not included) |
| Features | |
|---|---|
| Telepresence | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 64 BTU/h |
| Power | |
|---|---|
| Power plug type | Type G |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 1 |
| DC input voltage | 19 V |
| Current | 4.754 A |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Package weight | 5.8 kg |
| Package height | 199 mm |
| Package depth | 789 mm |
| Package width | 191 mm |
| Weight | 4.03 kg |
| Height | 91.4 mm |
| Depth | 101 mm |
| Width | 719 mm |
| Packaging content | |
|---|---|
| Packaging content | Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation |
| Remote control included | Yes |
| Quick start guide | Yes |
| Batteries included | Yes |
| AC adapter included | Yes |
| HDMI cable length | 2 m |
| Power cable length | 2.5 m |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
