Logitech

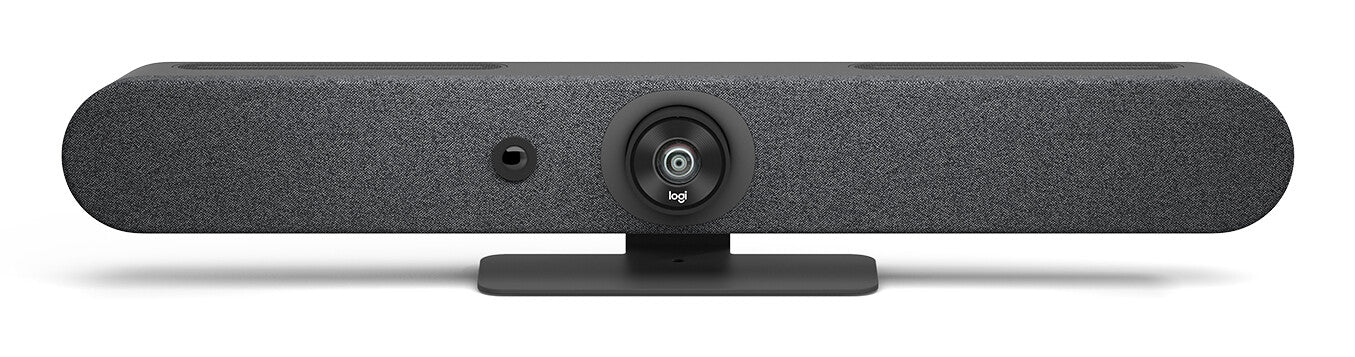

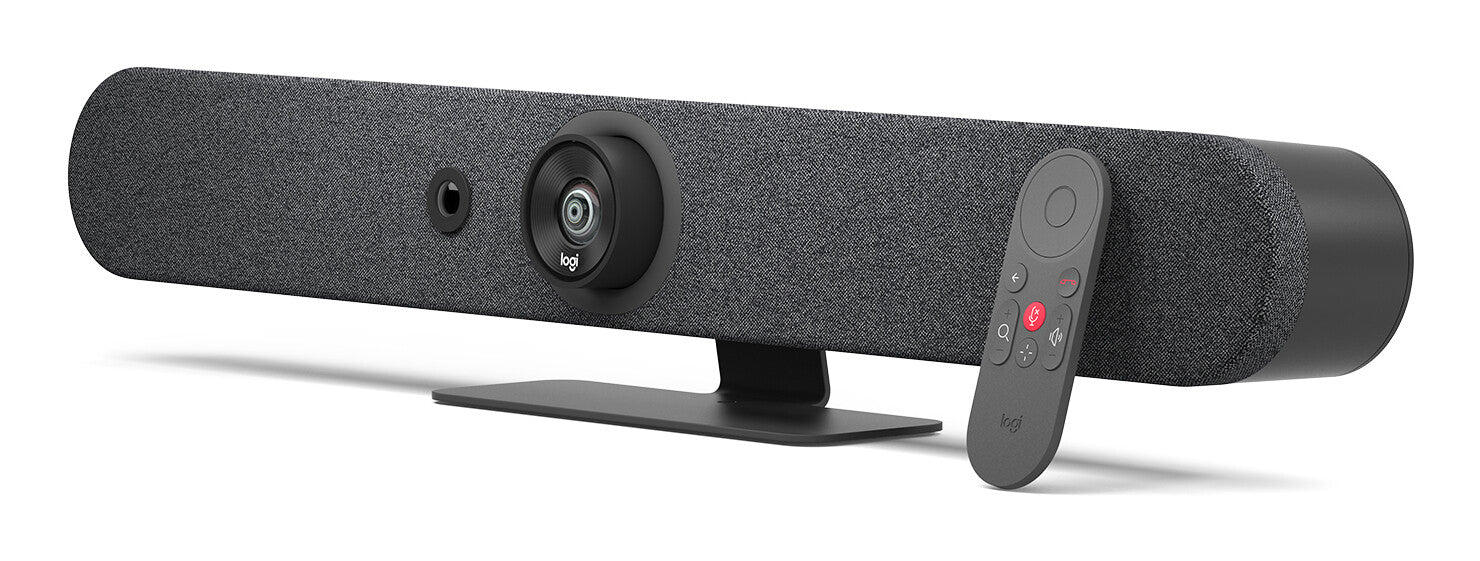

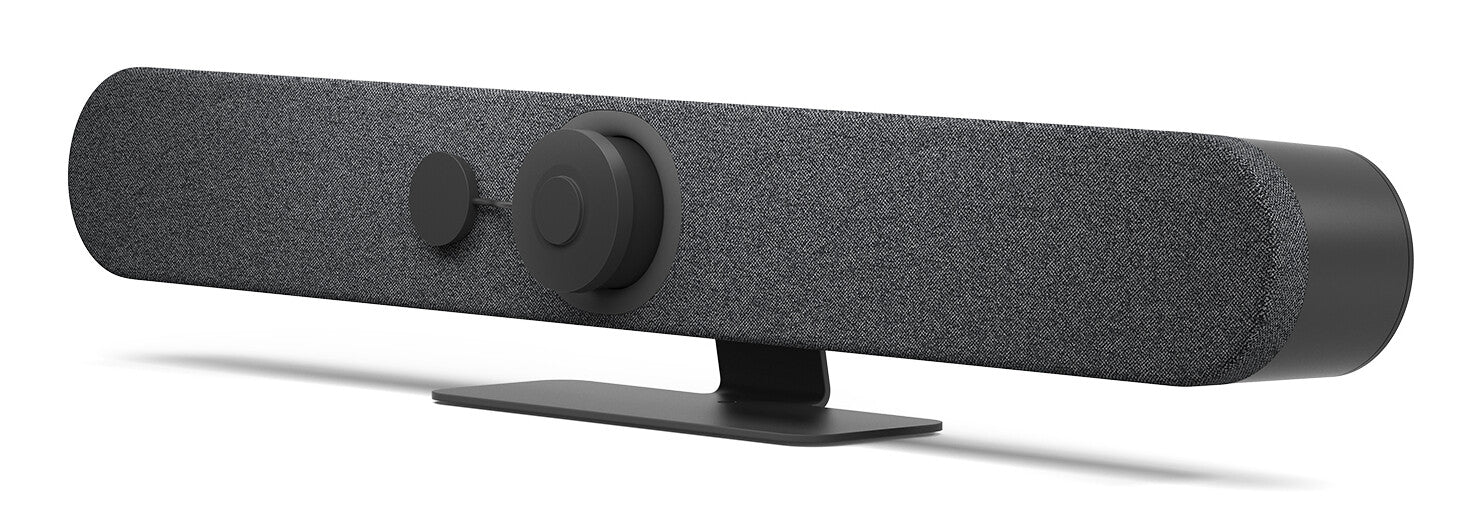

Logitech Rally Bar Mini
Logitech Rally Bar Mini
Regular price
£1,695.26 GBP
Regular price
Sale price
£1,695.26 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:960-001339
86 in stock
- Logitech extended guarantee adds one year to the original manufacturer's guarantee which provides that your Logitech Rally Bar Mini hardware shall be free from defects in material and workmanship.
- The purchase of a one year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two year limited hardware guarantee.
- Logitech one year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
- The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value, and ensure optimal performance of your Logitech conference room hardware.
- A three year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Rally Bar Mini
The purchase of a one year Logitech extended warranty along with the purchase of Rally Bar Mini adds one additional year to the original Logitech manufacturer's two year limited hardware warranty and is intended to ensure that your Logitech hardware is free from defects in material and workmanship. This extended warranty helps to protect your investment, maximize its value, and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Graphite |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
| PTZ control | Yes |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Audio beamforming | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| RMS rated power | 8 W |
| Sample rates | 0 - 48 kHz |
| Microphone pick-up range | 4.5 m |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Camera | |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 4x |
| Horizontal field of view | 113° |
| Vertical field of view | 80.7° |
| Diagonal field of view | 120° |
| Remote control interface | Bluetooth |
| Microphone | |
|---|---|
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Sound pressure level (max) | 90 dB |
| Number of microphones | 6 |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| System requirements | |
|---|---|
| Minimum system requirements | Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software licence (not included) |
| Computer system | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 160 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case gross weight | 4.73 kg |
| Features | |
|---|---|
| Telepresence | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 64 BTU/h |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| DC input voltage | 19 V |
| Number of batteries supported | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium |
| Power plug type | Type C |
| Weight & dimensions | |
|---|---|
| Width | 719 mm |
| Depth | 101 mm |
| Height | 91.4 mm |
| Weight | 4.03 kg |
| Package width | 191 mm |
| Package depth | 789 mm |
| Package height | 199 mm |
| Package weight | 5.8 kg |
| Packaging content | |
|---|---|
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Packaging content | Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation |
