Logitech Rally Bar
Logitech Rally Bar
Couldn't load pickup availability
SKU:960-001311
169 in stock
- All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
- Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
- Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
- Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
- Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.
- Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.

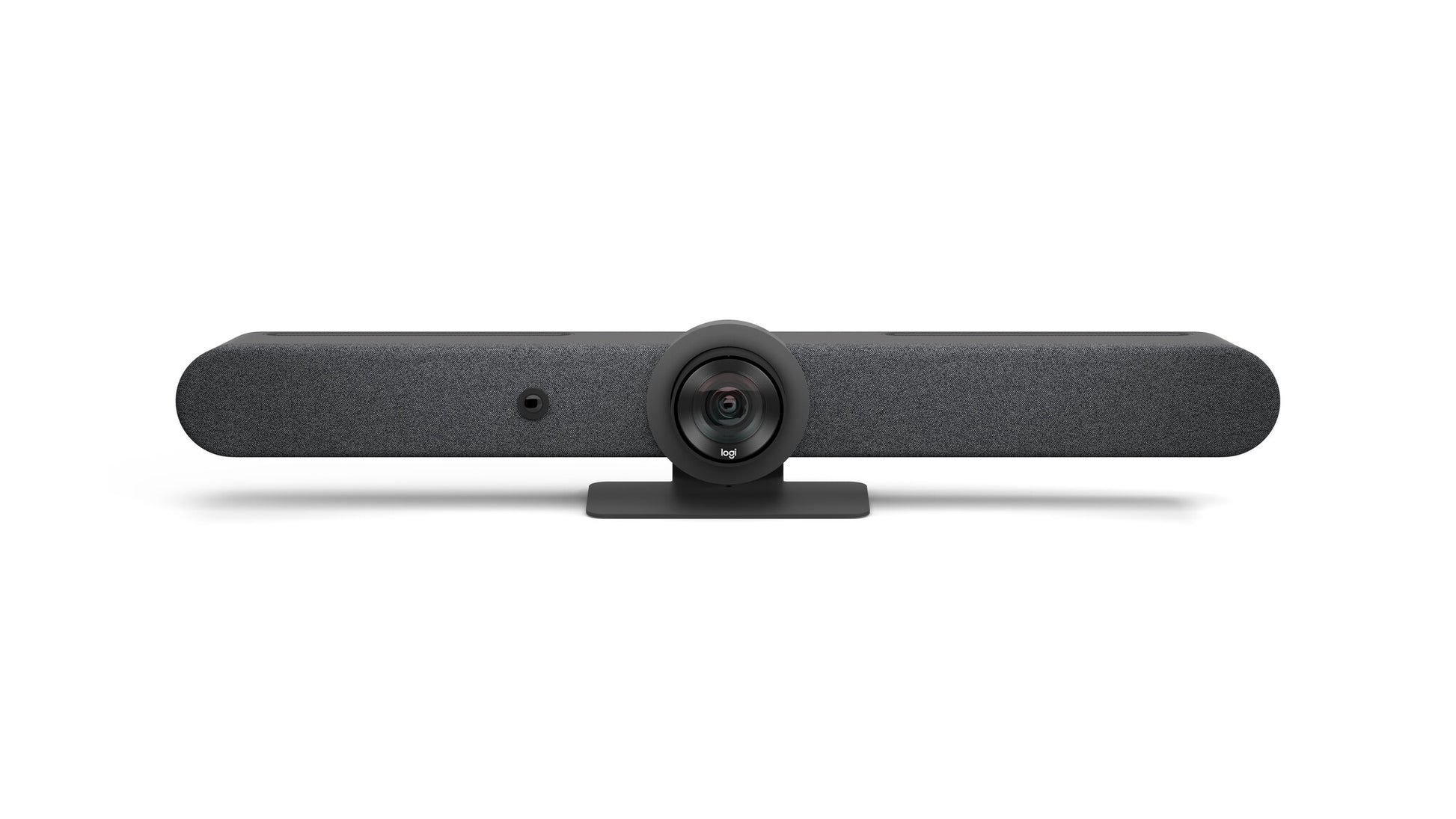

Rally Bar is Logitech’s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.
Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.
Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound™, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15’ mic pickup range with the option to extend coverage for larger groups and settings.
Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Graphite |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
| PTZ control | Yes |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Audio beamforming | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| RMS rated power | 8 W |
| Sample rates | 0 - 48 kHz |
| Microphone pick-up range | 4.5 m |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Interface module | |
|---|---|
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Camera | |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Horizontal field of view | 82.1° |
| Vertical field of view | 52.2° |
| Diagonal field of view | 90° |
| Remote control interface | Bluetooth |
| Microphone | |
|---|---|
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Sound pressure level (max) | 90 dB |
| Number of microphones | 6 |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| System requirements | |
|---|---|
| Minimum system requirements | Internet Connection: Wired or wireless (Rally Bar No-Radio does support WiFi connectivity).USB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software license (not included) |
| Computer system | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 160 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case gross weight | 4.73 kg |
| Features | |
|---|---|
| Telepresence | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 64 BTU/h |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| DC input voltage | 19 V |
| Number of batteries supported | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium |
| Power plug type | Type C |
| Weight & dimensions | |
|---|---|
| Width | 910 mm |
| Depth | 160 mm |
| Height | 164 mm |
| Weight | 7.08 kg |
| Package width | 207 mm |
| Package depth | 989 mm |
| Package height | 218 mm |
| Package weight | 9.3 kg |
| Packaging content | |
|---|---|
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |

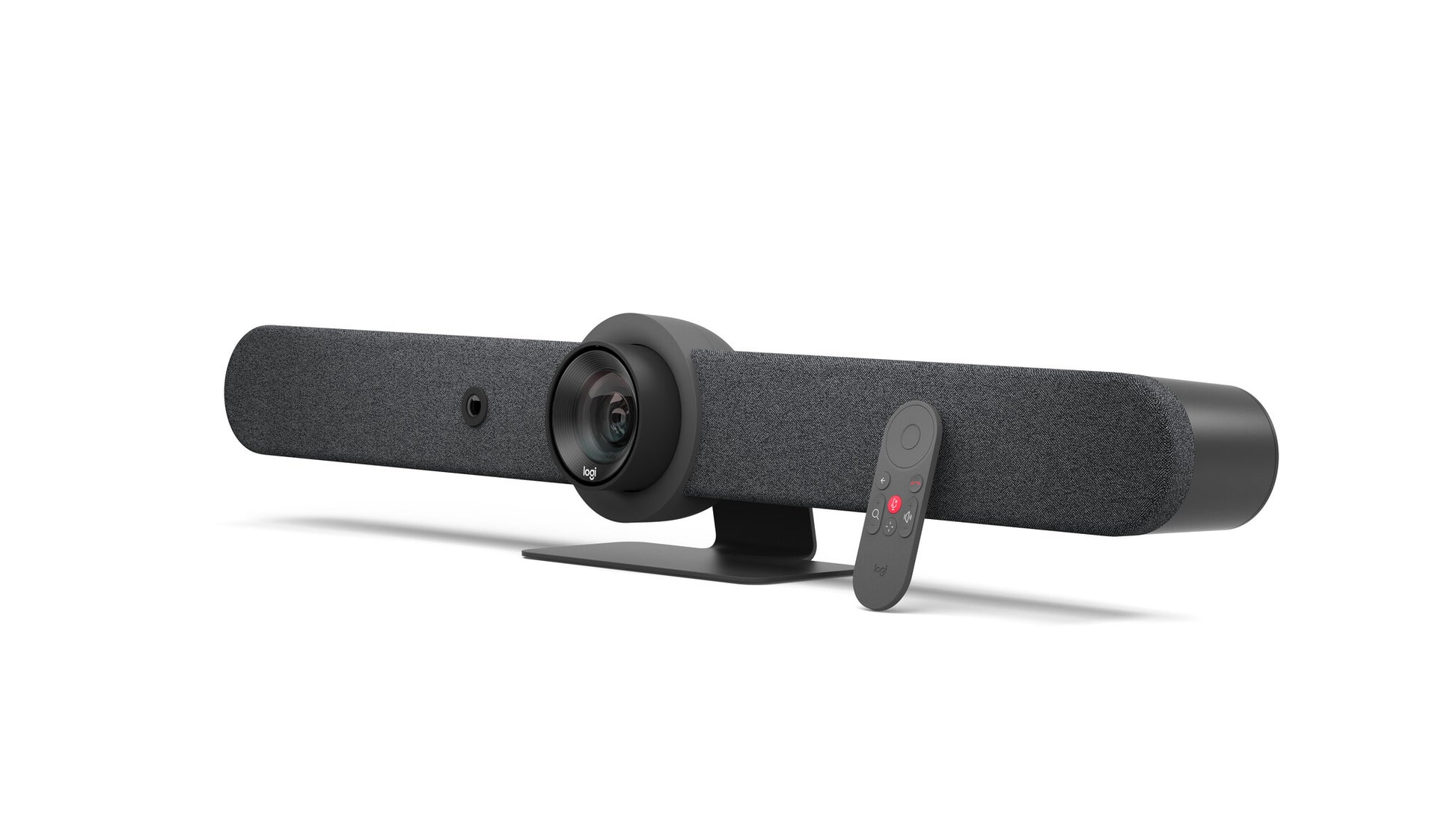

| Remote control included | Yes |
| Packaging content | Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation |
