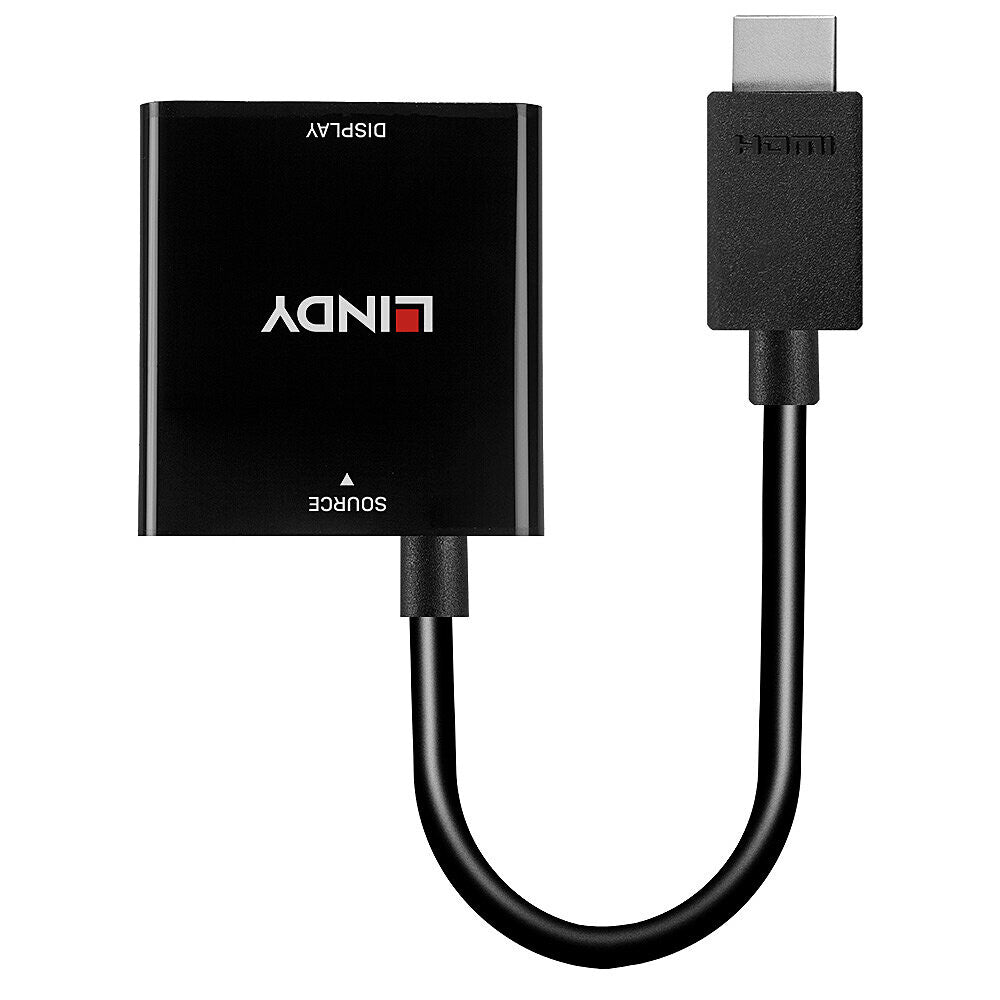

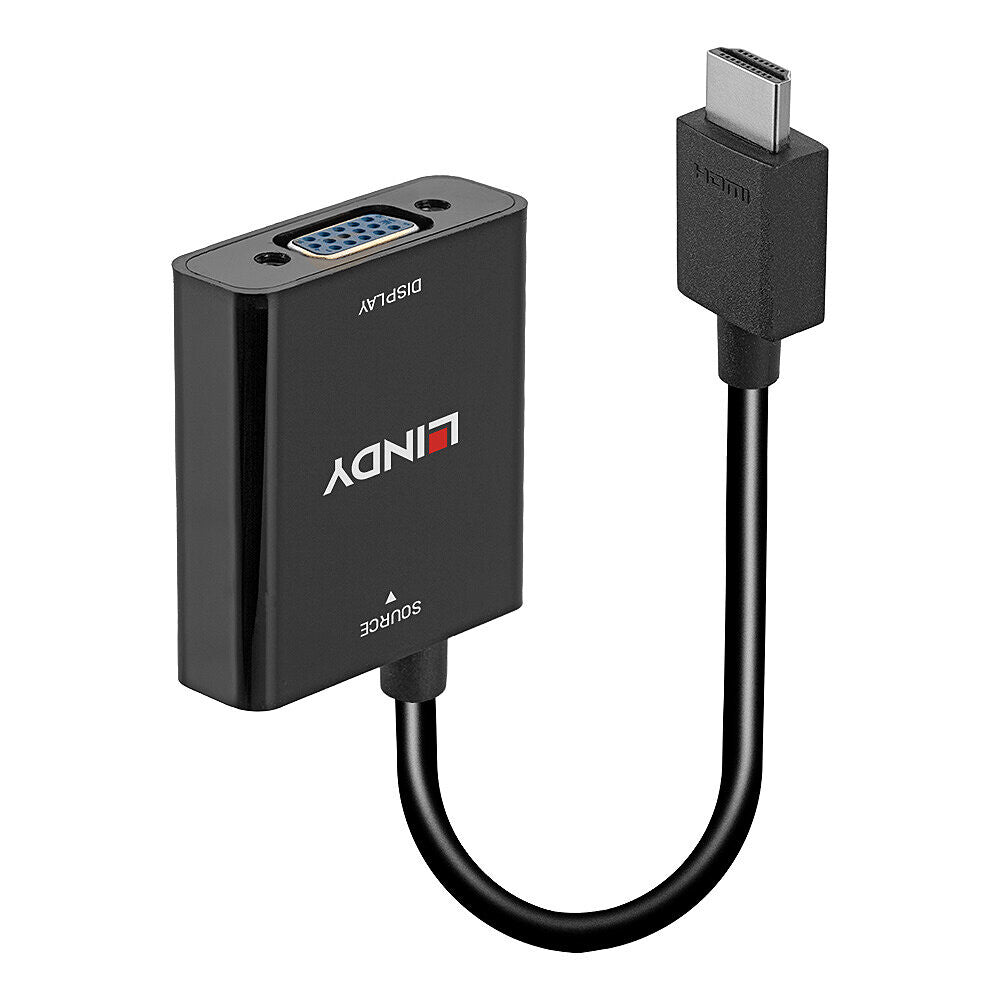

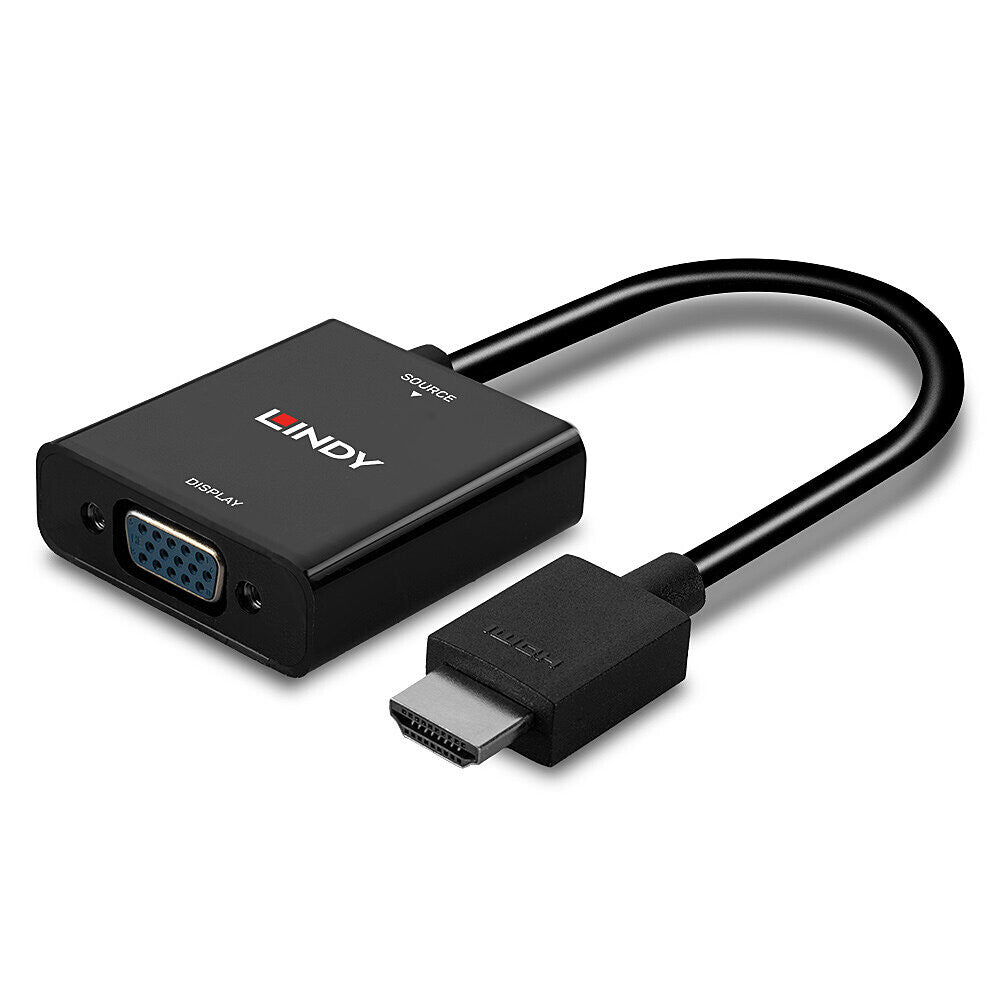

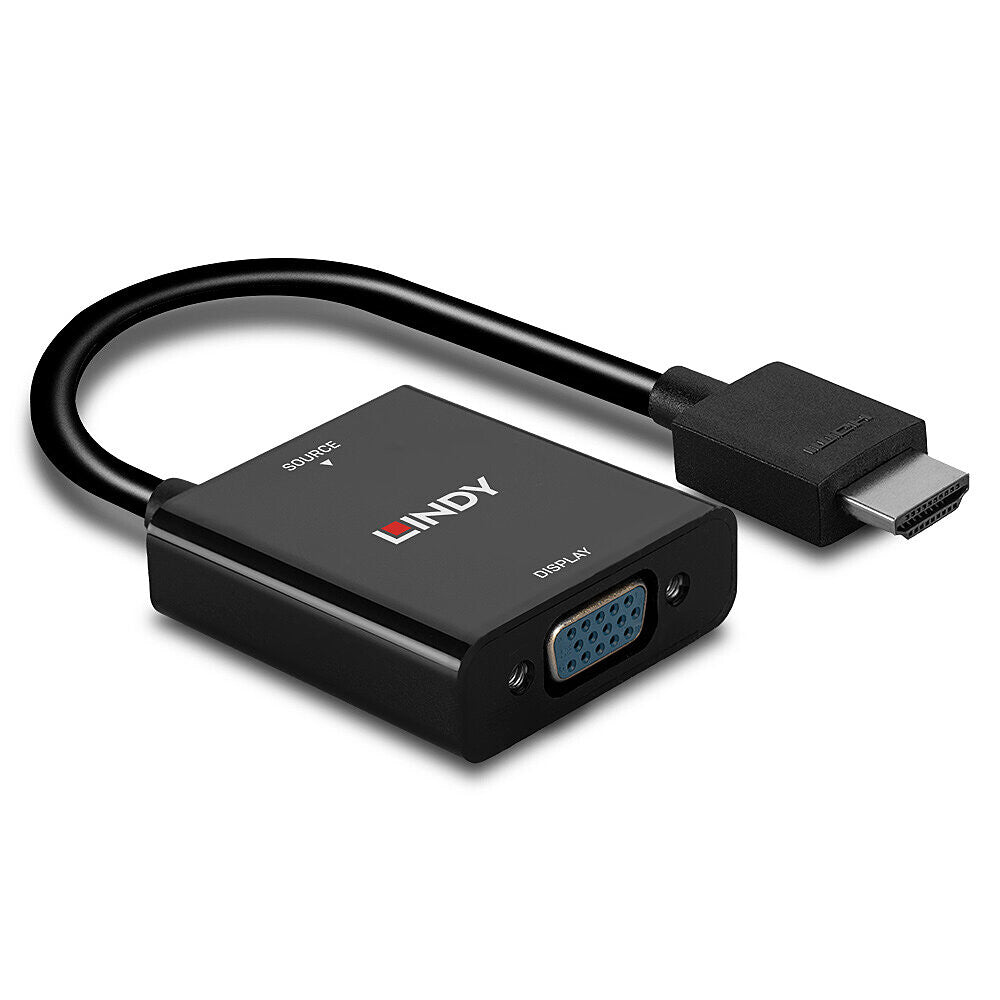

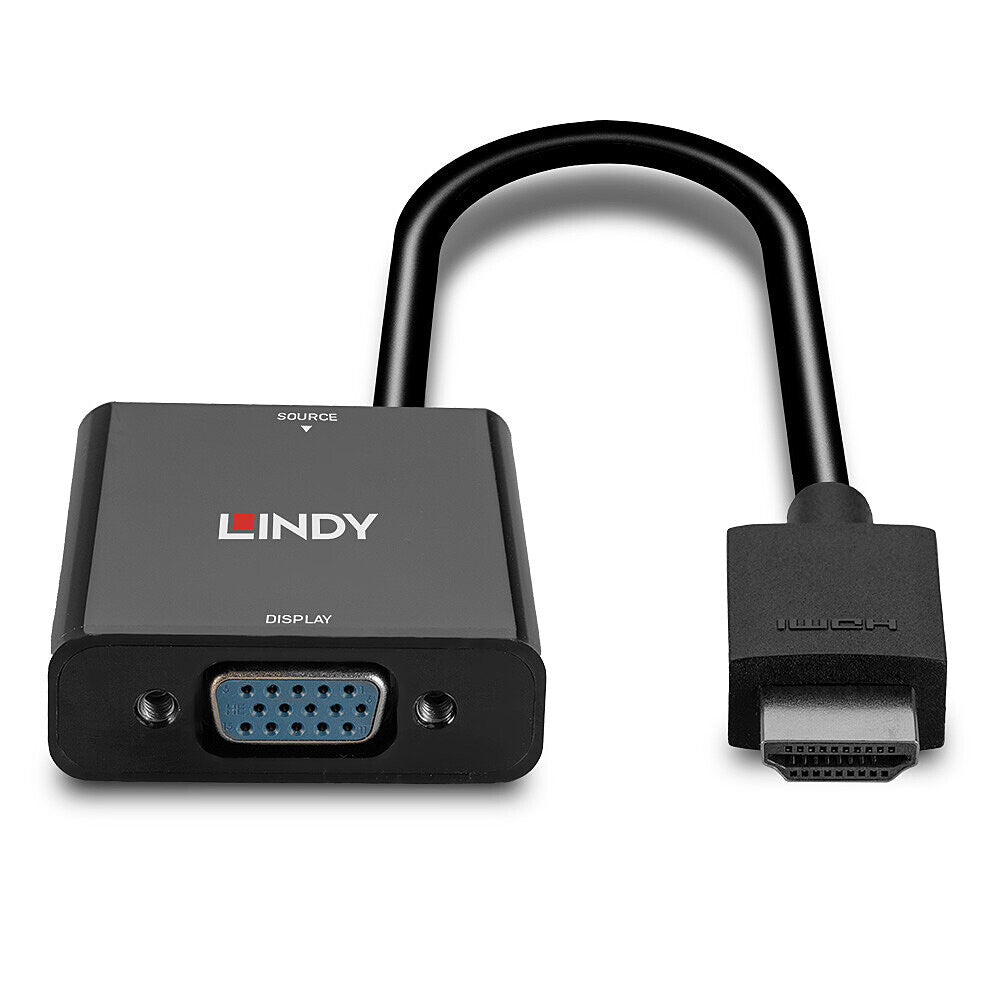

Lindy HDMI to VGA Converter
Lindy HDMI to VGA Converter
SKU:38291
24 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Connects an HDMI equipped device to a VGA display
- Supports resolutions up to 1920x1200 including 1080p
- Direct signal conversion, without scaling
- Quick and simple plug and play installation
- 2 year warranty
The Lindy HDMI 1.3 to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920x1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
| Features | |
|---|---|
| Cable length | 0.1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDMI version | 1.3 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Data transfer rate | 4.95 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | Algoltek AG6200A |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Colour depth | 12 bit |
| Plug and Play | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Cable diameter | 4.8 mm |
| Connector 1 dimensions (WxDxH) | 37 x 42 x 14.5 mm |
| Connector 2 dimensions (WxDxH) | 21 x 17.4 x 9.6 mm |
| Weight | 27 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package type | Polybag |
| Package weight | 37 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
