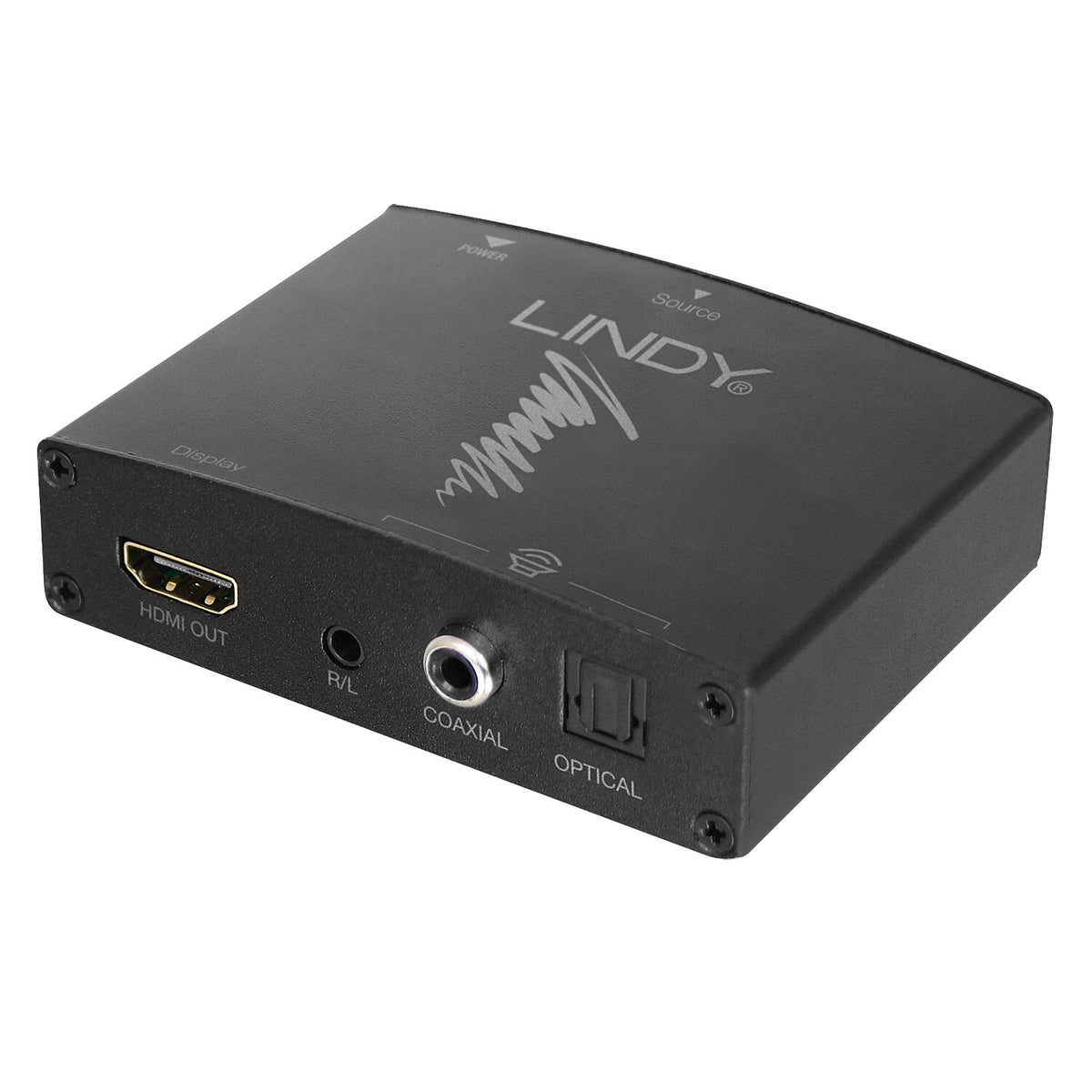

Lindy HDMI 4K30 Audio Extractor
Lindy HDMI 4K30 Audio Extractor
SKU:38167
Low stock: 9 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Extract stereo or multi-channel audio from a HDMI signal
- Support resolutions up 4096x2160@30Hz 4:4:4 8bit
- Supports various audio formats including LPCM, Dolby Digital 2/5.1 and DTS-HD
- CEC Pass-through
- 2 year warranty
The Lindy HDMI 4K Audio Extractor is an effective solution for extracting audio from a HDMI source to both digital and analogue audio devices, while sending the video signal to a 4K display or projector. This is a perfect solution for connecting Non-HDMI AV receivers, or analogue 2-channel speaker setups to an HDMI source device, while also ideal for extracting audio and video to a display that requires separate speakers such as a PC monitor.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to both digital formats via Optical and HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor.
Featuring a neat switch to fully control which source audio EDID is used and the ability to be powered via USB from the source or display device, the extractor provides simple use and installation, great for both AV installations in the home or in commercial settings. With a minimalist and stylish design, it can also be hidden out of sight to compliment the popular trend of discreet AV installations.
| Inputs | |
|---|---|
| DC-in jack | Yes |
| HDMI in | 1 |
| Outputs | |
|---|---|
| S/PDIF out port | Yes |
| Number of HDMI outputs | 1 |
| Digital audio optical out | 1 |
| Digital audio coaxial out | 1 |
| Audio (L/R) out | 1 |
| Technical details | |
|---|---|
| Maximum data transfer rate | 10200 Mbit/s |
| HDCP version | 1.4 |
| HDCP | Yes |
| HDMI pass-through | Yes |
| CEC pass-through | Yes |
| HDMI version | 1.4 |
| Chipset | EP91A2E |
| Output impedance | 100 Ω |
| Input impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Supported chroma subsampling | 4:4:4 |
| Audio codecs | Dolby Digital 2/5.1, DTS-HD |
| Accuracy | 0.1 dB |
| Maximum resolution | 4096 x 2160 pixels |
| Compliance certificates | REACH, RoHS |
| Housing material | Metal |
| Audio recording formats | LPCM |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Power | |
|---|---|
| Power consumption (typical) | 5 W |
| Power note | 5.5/2.1mm DC |
| Weight & dimensions | |
|---|---|
| Width | 65 mm |
| Depth | 88 mm |
| Height | 24 mm |
| Weight | 118 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -15 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
|---|---|
| Cables included | DC to USB Type-A |
| Manual | Yes |
| Quantity | 1 |
| Package width | 202 mm |
| Package depth | 144 mm |
| Package height | 55 mm |
| Package weight | 250 g |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
