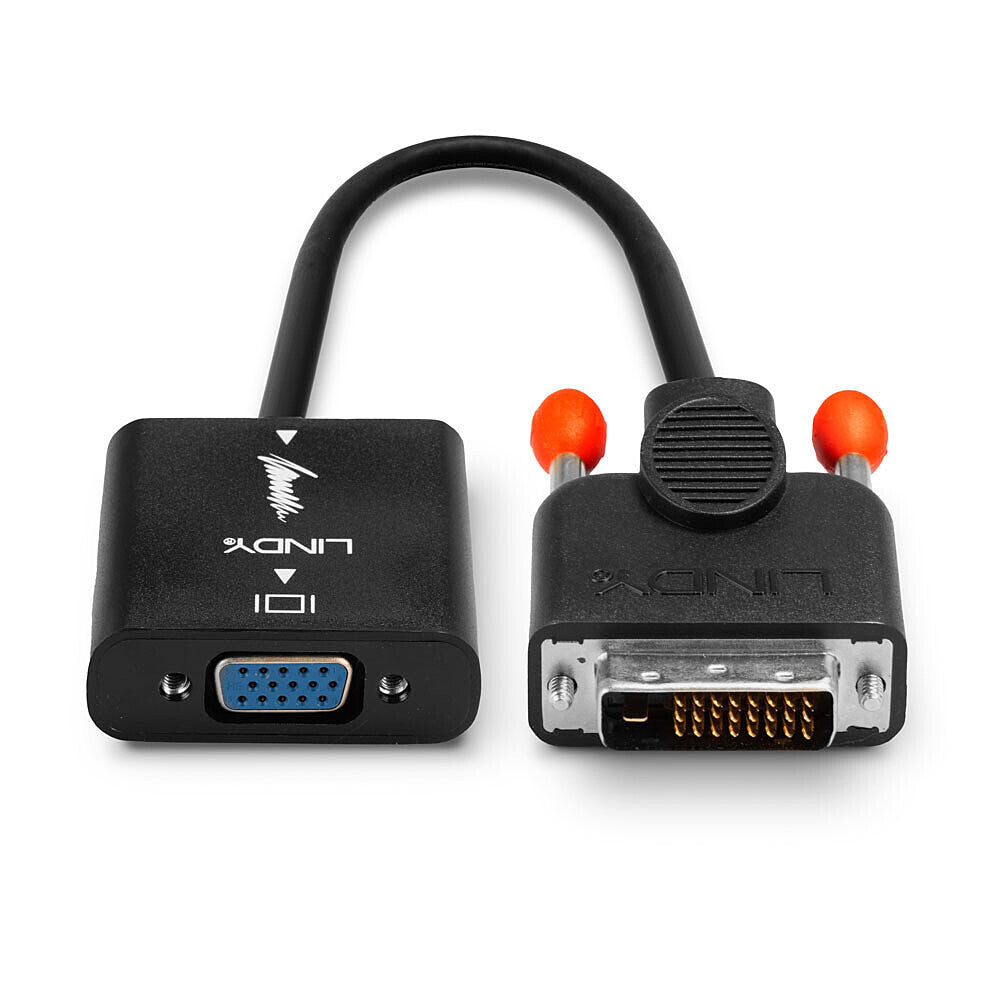

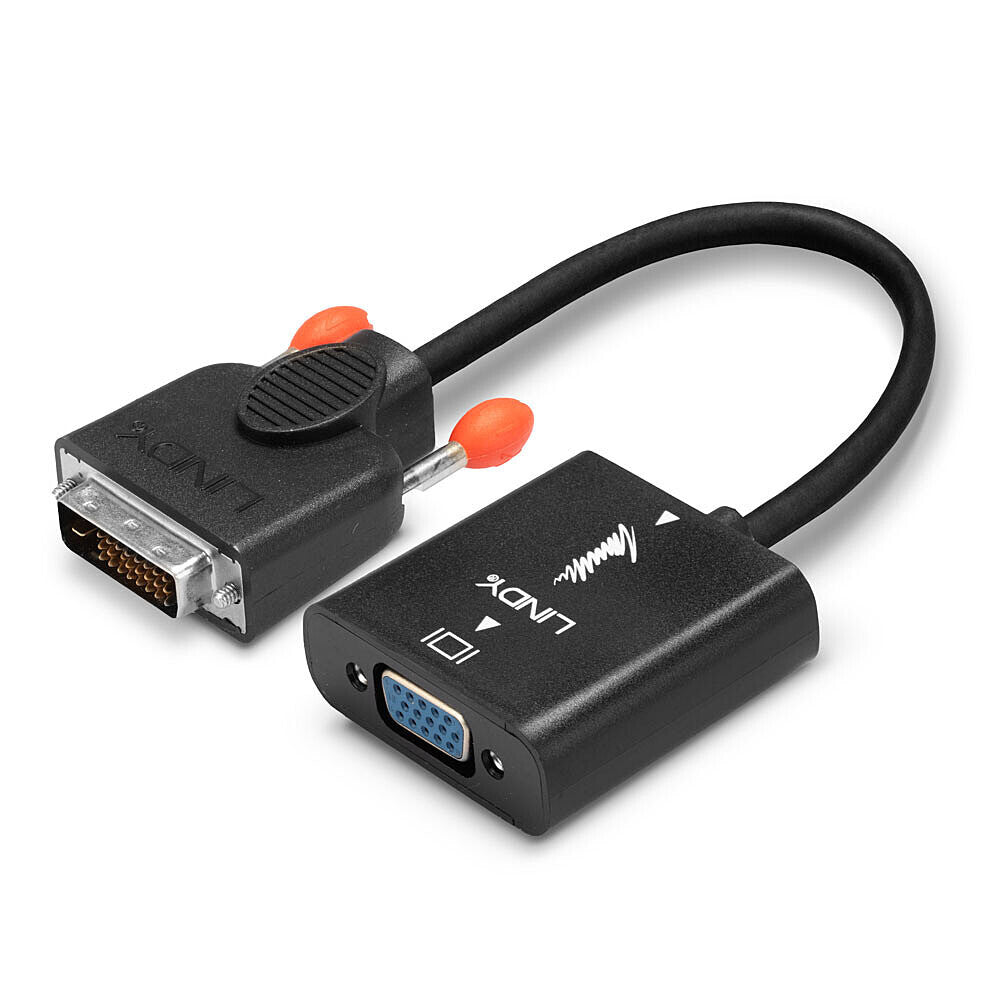

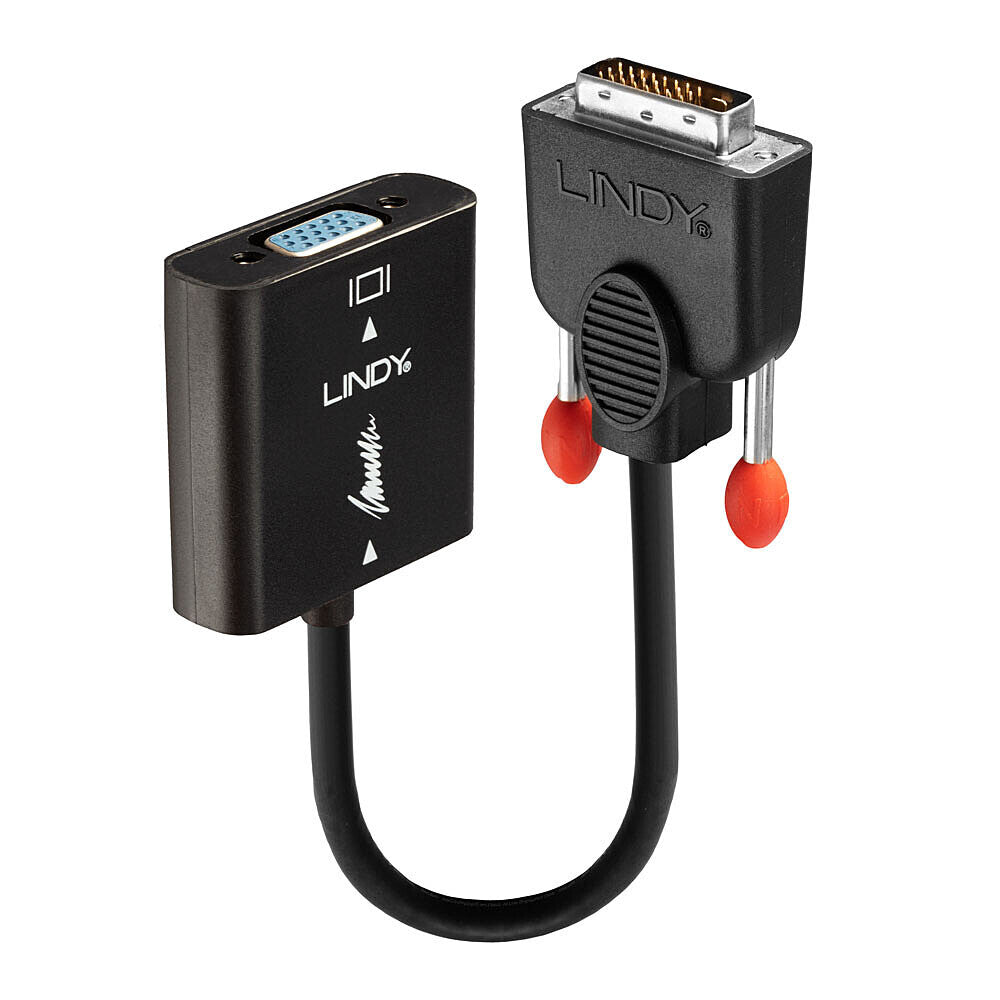

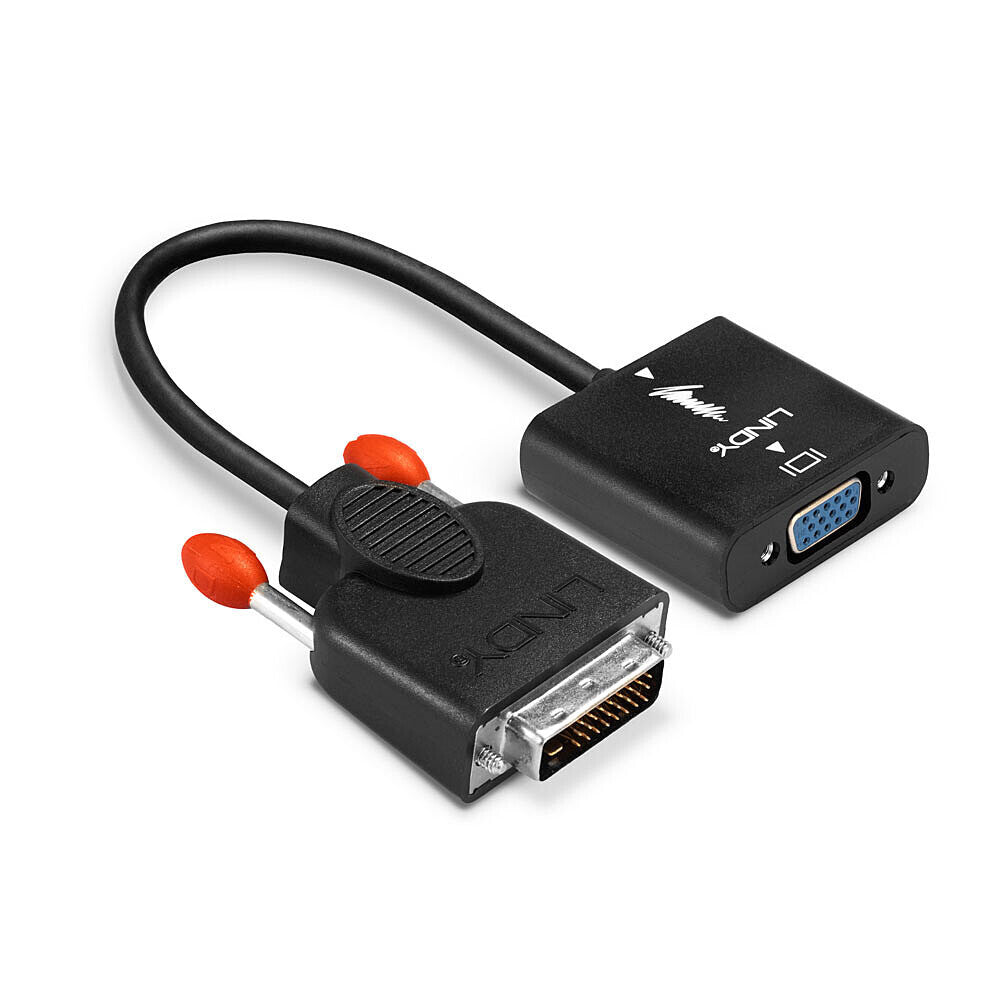

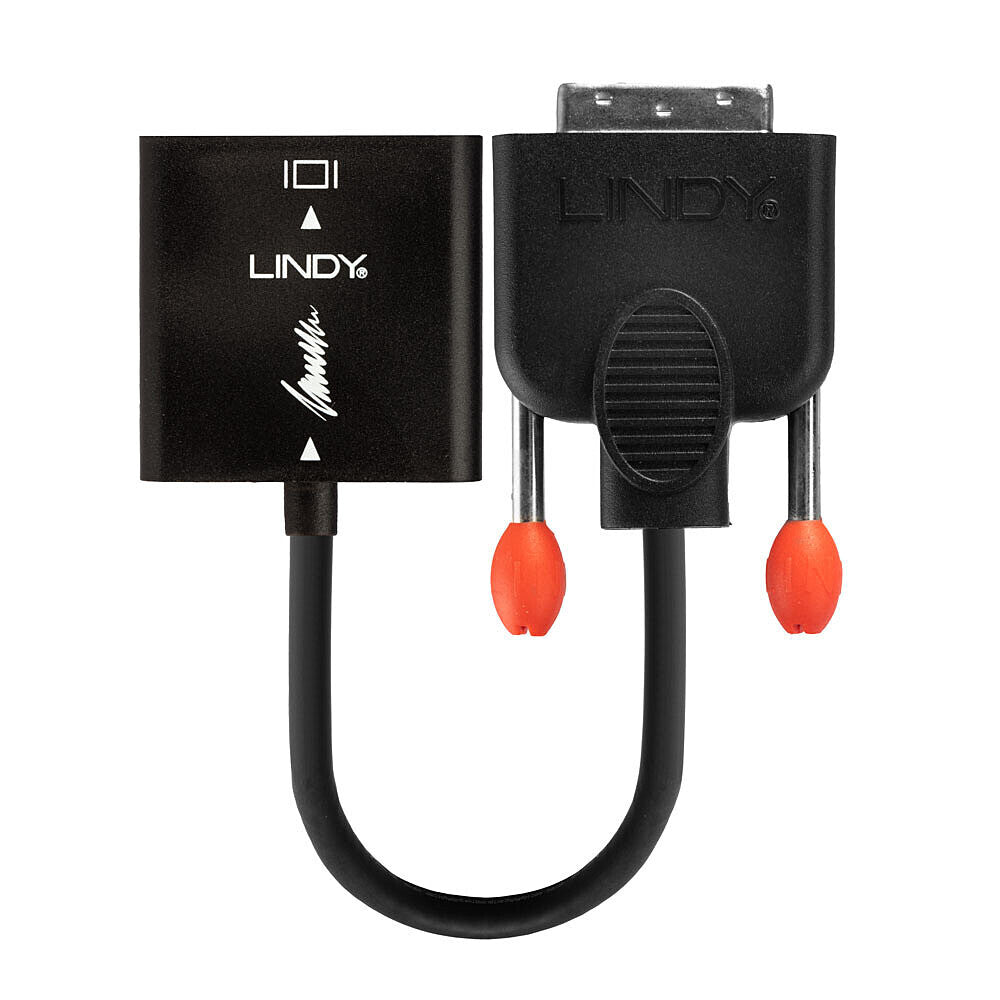

Lindy DVI-D to VGA Converter
Lindy DVI-D to VGA Converter
SKU:38189
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Converts DVI-D signals into VGA
- Supports resolutions up to 1920x1200 including 1080p
- Add a VGA monitor as a secondary display
- Quick and simple plug and play installation
- 2 year warranty
The Lindy DVI to VGA converter converts signals from a DVI-D equipped source into a VGA signal. It supports resolutions up to 1080p and 1920x1200 for VGA displays. This allows the connection of DVI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
| Features | |
|---|---|
| Cable length | 0.1 m |
| Connector 1 | DVI-D |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDCP | No |
| Dual Link DVI | No |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Data transfer rate | 4.95 Gbit/s |
| Bend radius (min) | 5.5 cm |
| Product colour | Black |
| Chipset | CH7101 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Polyvinyl chloride (PVC) |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Cable diameter | 5.5 mm |
| Connector 1 dimensions (WxDxH) | 40 x 52.25 x 16.5 mm |
| Connector 2 dimensions (WxDxH) | 44 x 45 x 15 mm |
| Weight | 62 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package type | Polybag |
| Package weight | 77 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
