Connects an HDMI and/or a DisplayPort display, USB peripherals and power over a single cable
Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)*
Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x Type A, 1 x Type C)
USB Power Delivery capable up to 100W
2 year warranty
DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) and 100W Pass-Through Charging

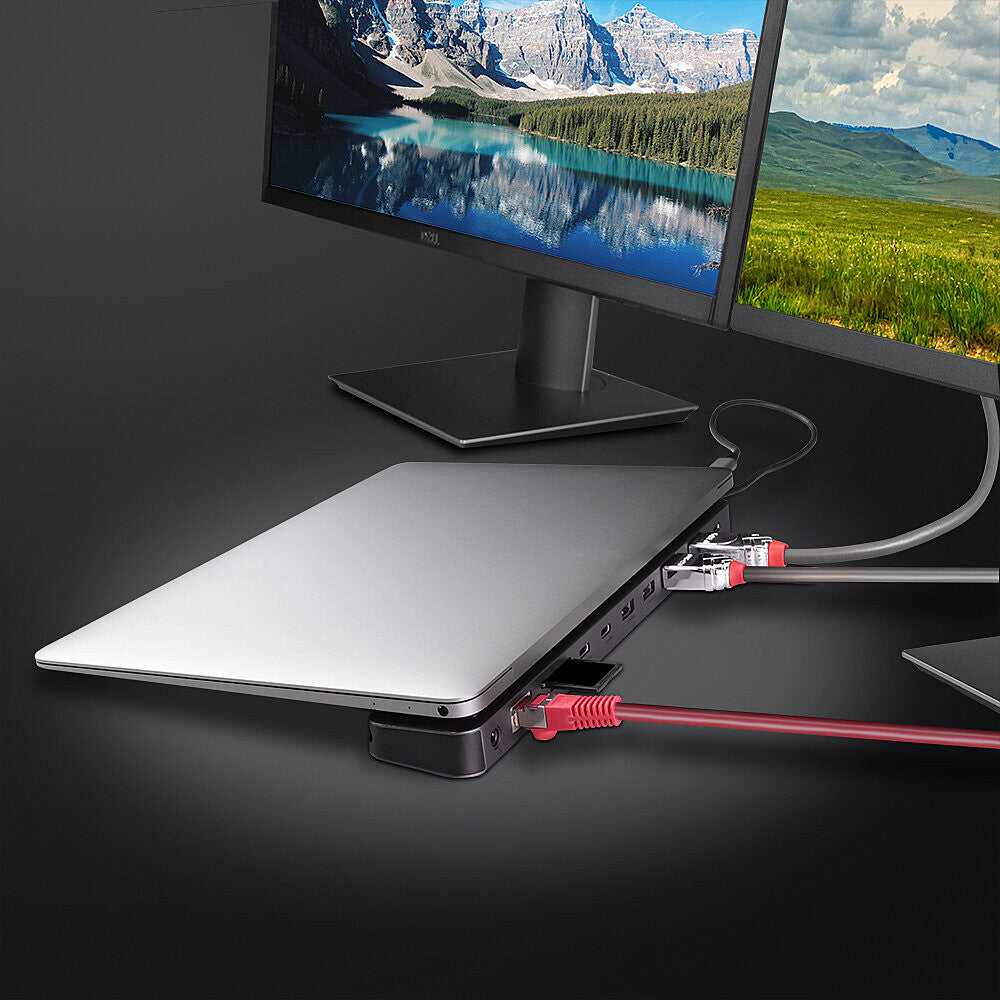

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

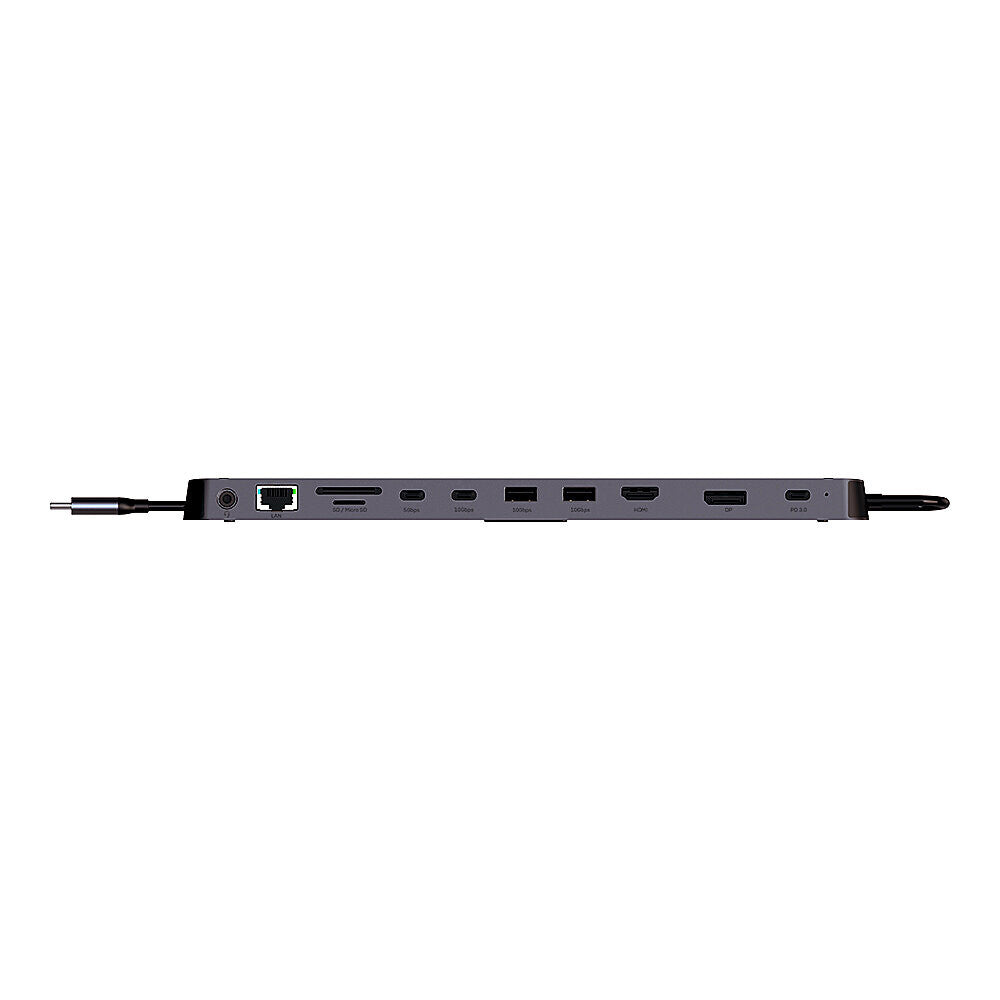

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.
The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**

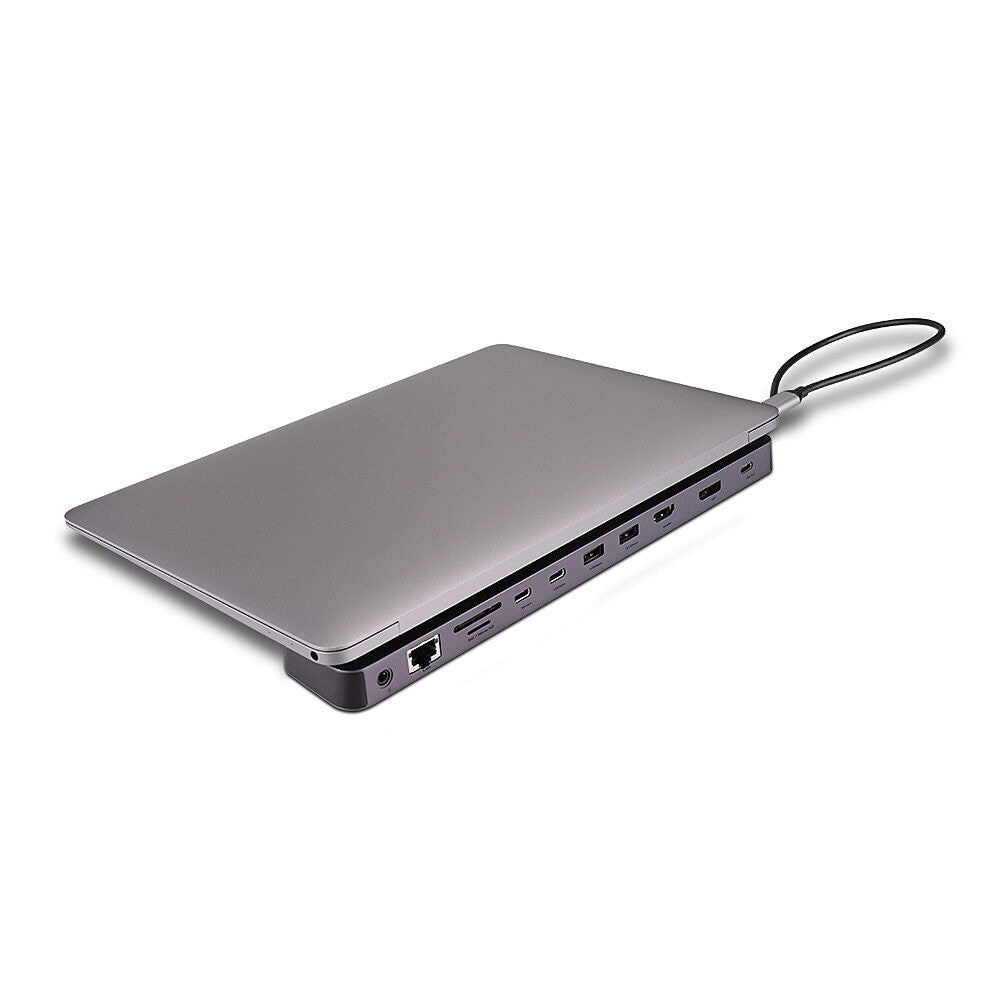

This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.
*Please note that macOS does not support MST.
** Please note that the Docking Station requires 15W for its own operation.
Performance
Certification
CE, FCC, REACH & RoHS, CP65
Housing material
Aluminium
Plug and Play
Yes
Number of displays supported
2
Maximum refresh rate
120 Hz
Maximum digital resolution
7680 x 4320 pixels
Data transfer rate
10 Gbit/s
Compatible memory cards
MicroSD (TransFlash), SD
Card reader integrated
Yes
Product colour
Anthracite
Power
USB cable length
0.36 m
Power supply
15 W
Power connector
USB Type-C
Power source type
USB
Operational conditions
Operating relative humidity (H-H)
0 - 85%
Storage temperature (T-T)
-10 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Weight
224 g
Height
16 mm
Depth
45 mm
Width
270 mm
Packaging data
Package weight
330 g
Package height
35 mm
Package depth
93 mm
Package width
365 mm
Quantity per pack
1 pc(s)
Packaging content
Manual
Yes
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
