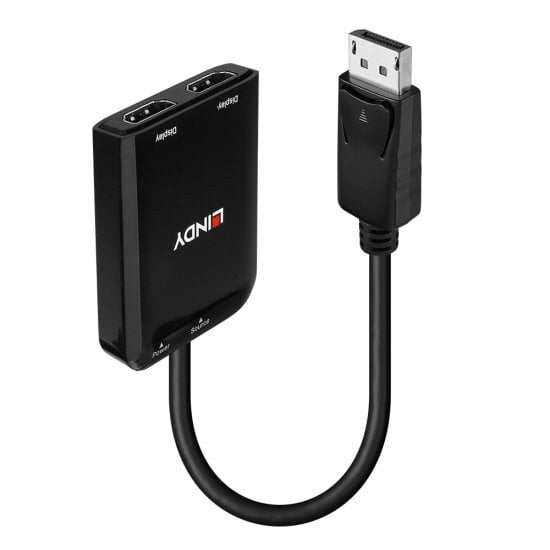

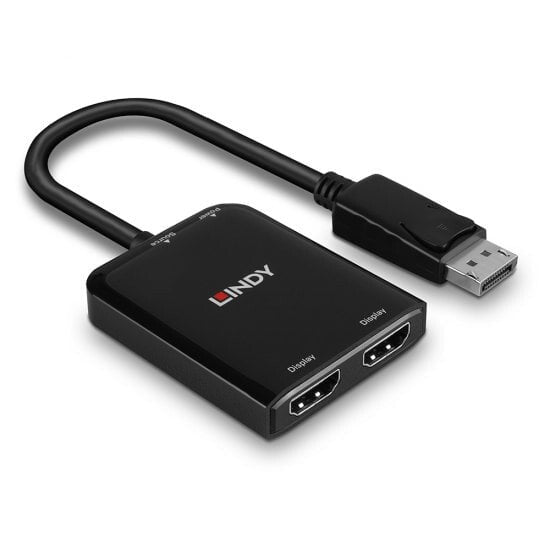

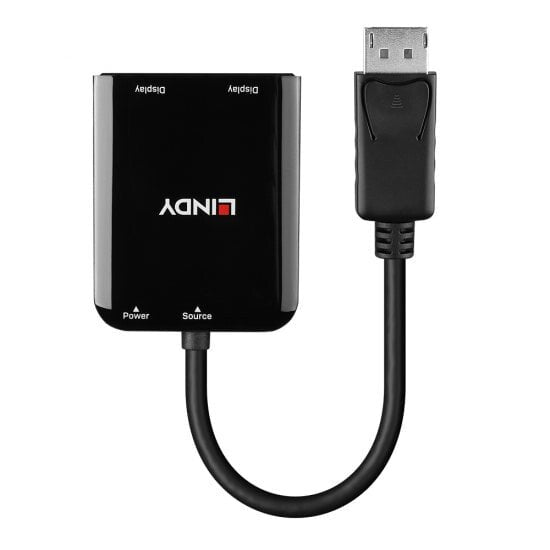

Lindy DisplayPort to 2 Port HDMI MST Hub
Lindy DisplayPort to 2 Port HDMI MST Hub
SKU:38433
Low stock: 10 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Connect 2 HDMI displays to a DisplayPort computer or laptop
- Expand, duplicate or display independent DP signals over dual HDMI monitors
- Supports resolutions up to 2 x 4K 30Hz, and audio up to 7.1CH
- Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage
- 2 year warranty
The Lindy DP to 2 Port HDMI MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 HDMI monitors or TVs. MST hubs allow for the connection of a single mDP source device including computers, laptops or notebooks to 2 separate HDMI displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.
With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.
This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals
Please note: This hub is not compatible with Apple products
| Features | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS and REACH |
| Supported audio channels | 7.1 |
| Audio Return Channel (ARC) | Yes |
| Maximum refresh rate | 30 Hz |
| Data transfer rate | 21.6 Gbit/s |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| HDCP | Yes |
| HDMI version | 2.0 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | 2 x HDMI |
| Connector 1 | DisplayPort |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -20 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 10 mm |
| Depth | 49 mm |
| Width | 254 mm |
| Packaging data | |
|---|---|
| Package weight | 59 g |
| Package type | Polybag |
| Package height | 10 mm |
| Package depth | 194 mm |
| Package width | 174 mm |
| Quantity per pack | 1 pc(s) |
