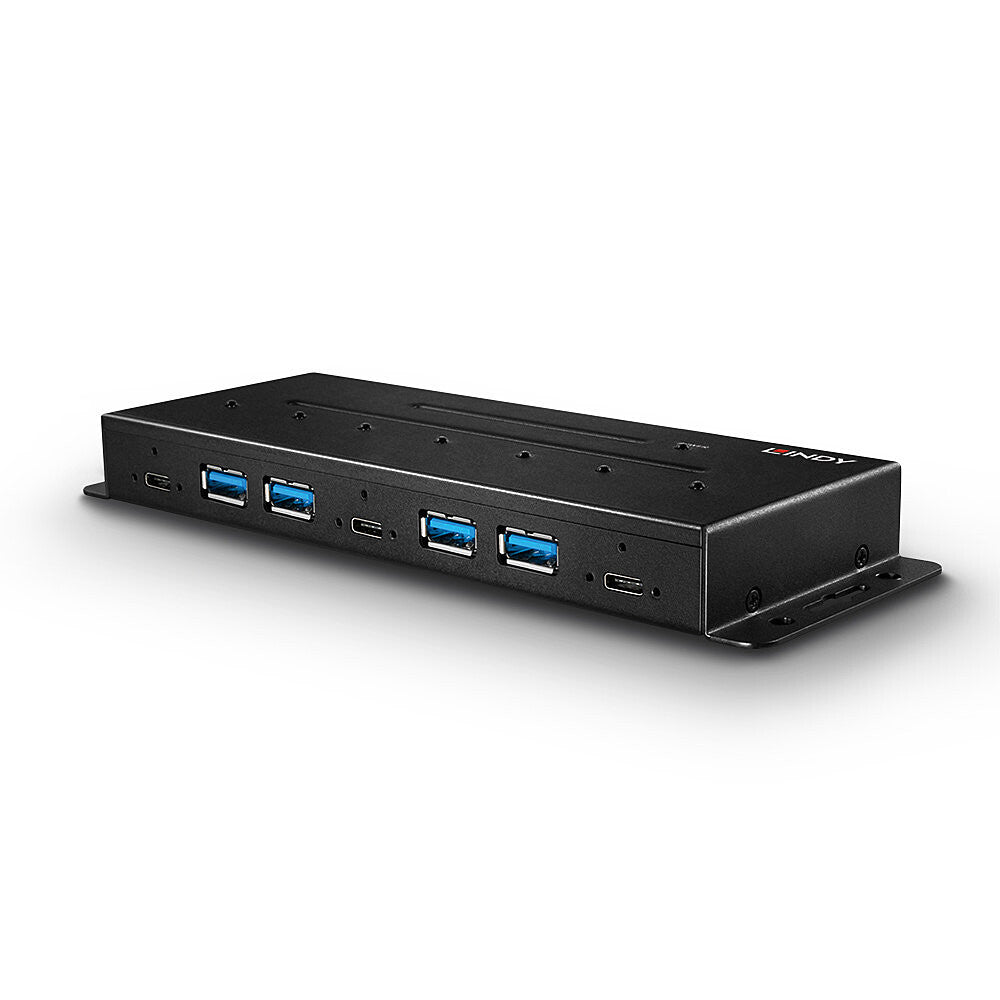

Lindy 7 Port USB 3.2 Gen 2 Metal Hub

Lindy 7 Port USB 3.2 Gen 2 Metal Hub

43275

£204.46 GBP£170.38 GBP
£0.00 GBP £204.46 GBP£170.38 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 10 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Connects 4 Type A and 3 Type C USB 3.2 Gen 2 devices to a Type C port with SuperSpeed+ data rates up to 10Gbpsandnbsp;
  • Hard-wearing USB Hub - Perfect for industrial applications
  • Robust metal housing with high EMC protection and integrated brackets for mountingandnbsp;
  • Powered by external power supply or terminal block
  • 2 year warranty
7 Port USB 3.2 Gen 2 Metal Hub

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.









Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Ports & interfaces
DC-in jack Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Ports quantity 7
Features
Certification CE, FCC, RoHS, REACH, California Proposition 65
Product colour Black
Housing material Metal
Data transfer rate 10000 Mbit/s
Power
Input voltage 16 V
Input current 3 A
Weight & dimensions
Weight 700 g
Height 20 mm
Depth 64.3 mm
Width 184.5 mm
Packaging data
Package type Carton
Package height 70 mm
Package depth 180 mm
Package width 260 mm
Quantity per pack 1 pc(s)
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
