High performance, active cable that provides an extended 5m connection between a computer with USB Type C port and a USB Type A device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cables used)
Supports the full USB 3.2 / 3.1 Gen 1 / USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
USB Power Adapter cable included
2 year warranty

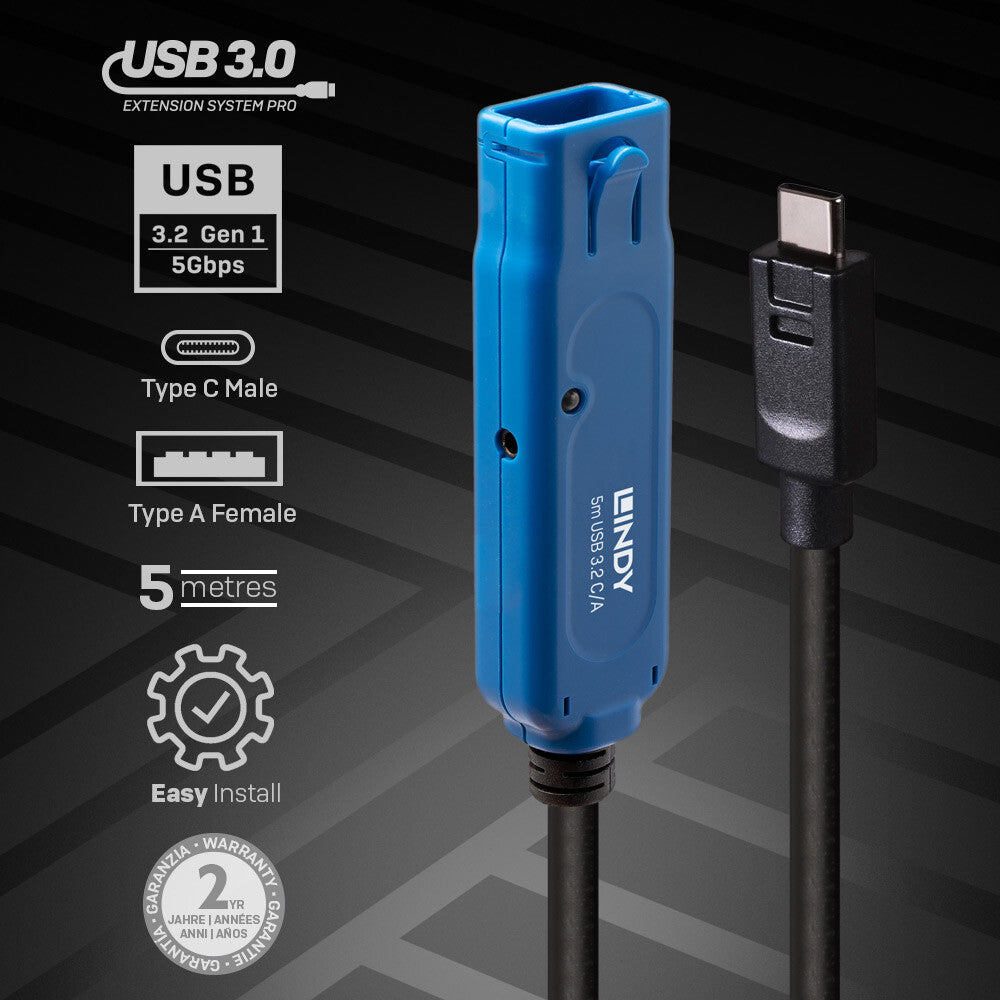

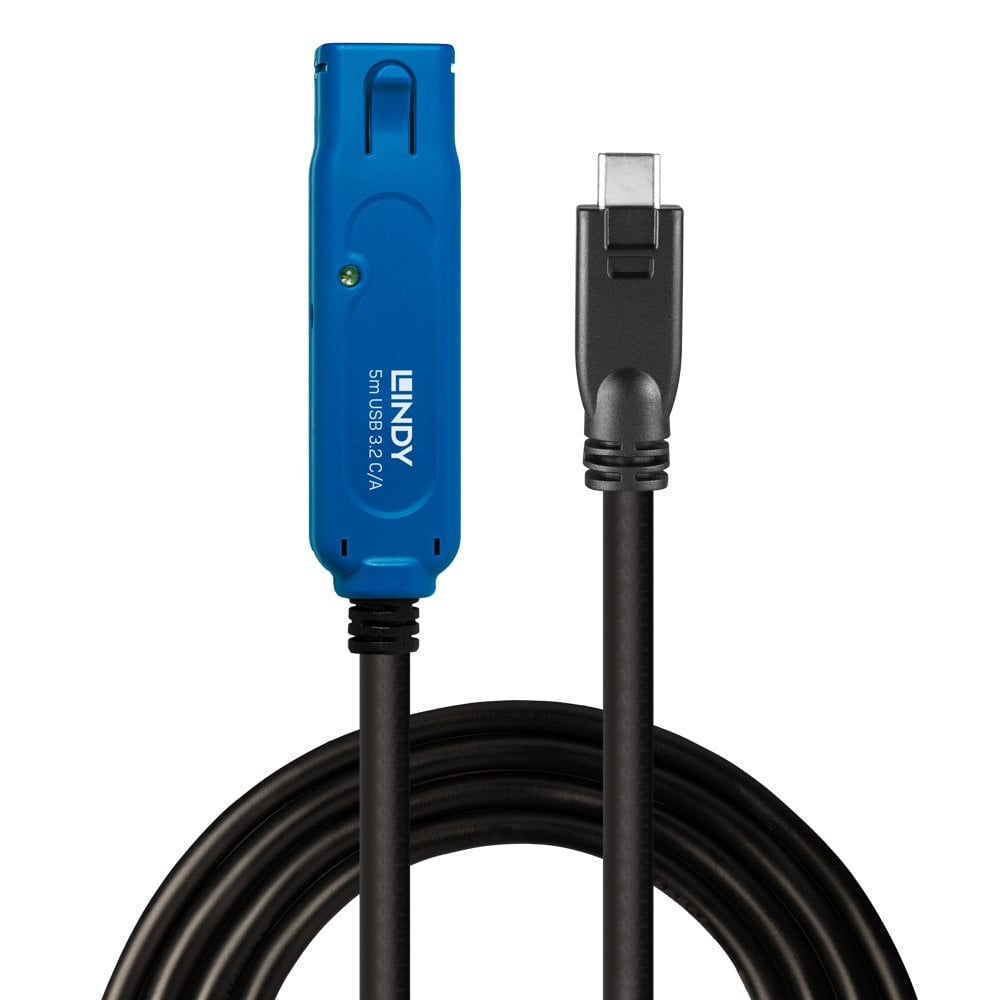

5m USB 3.2 Gen 1 C/A Active Extension Pro
The Lindy USB 3.2 Gen 1 C/A Active Extension Cable Pro is a high performance active cable that allows access to USB peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.
This 5m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 5m (Nr. 43380) or the 8m version (Nr. 43381) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it's power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.

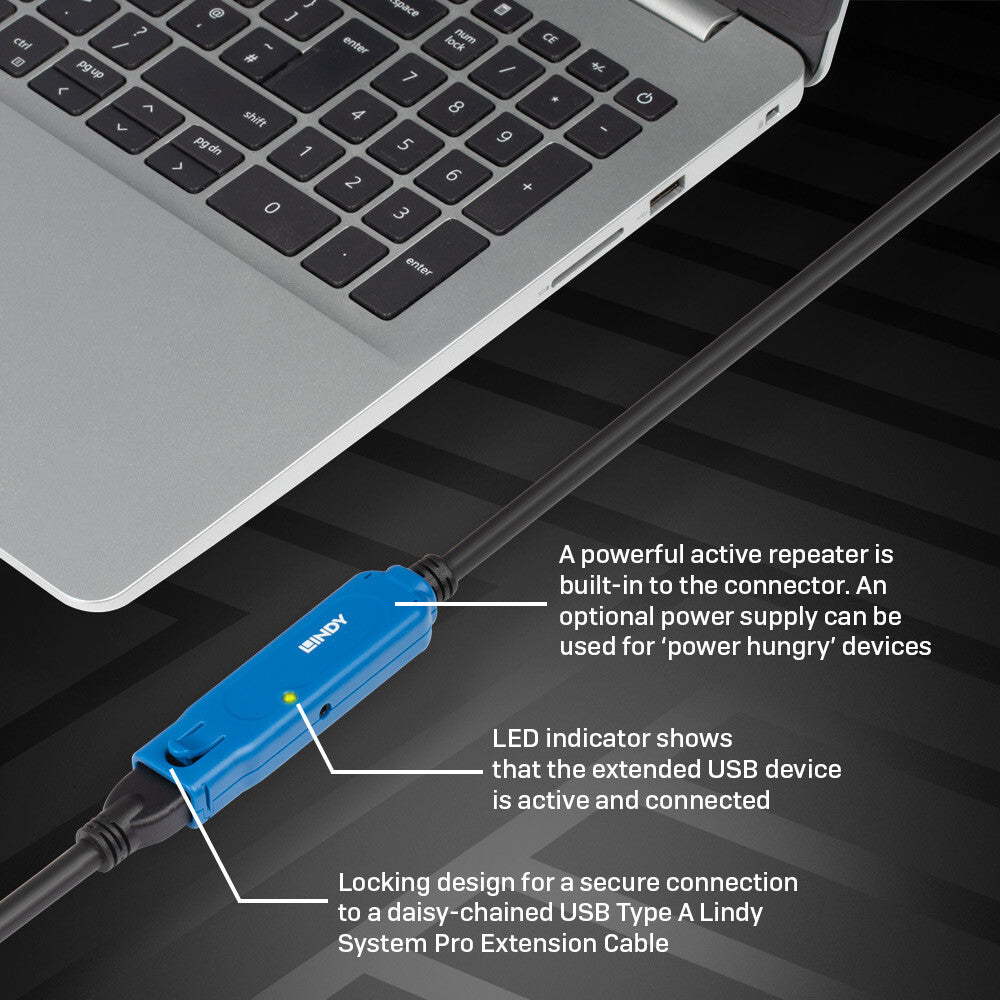

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Features
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Cable length
5 m
Connector 1
USB C
Connector 2
USB A
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/28/24
Connector material
Nickel
Contact material
Brass
Connector contacts plating
Gold
Cable jacket material
Polyvinyl chloride (PVC)
Connector shield material
Aluminium
Connector shielding
Yes
Conductor material
Tinned copper
Connector housing material
Plastic
Cable type
Round cable
Product colour
Black
Transmission medium
Twisted pair
Nominal attenuation
0.064MHz -
Certification
California Proposition 65
Power
Power note
2.5/0.7mm DC
Weight & dimensions
Bend radius (min)
5.5 cm
Cable diameter
5 mm
Connector 1 dimensions (WxDxH)
12.4 x 39.7 x 9 mm
Connector 2 dimensions (WxDxH)
20 x 80 x 13 mm
Weight
220 g
Packaging data
Quantity per pack
1 pc(s)
Package width
230 mm
Package depth
198 mm
Package height
63 mm
Package weight
420 g
Package type
Carton
Packaging content
Manual
Yes
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
