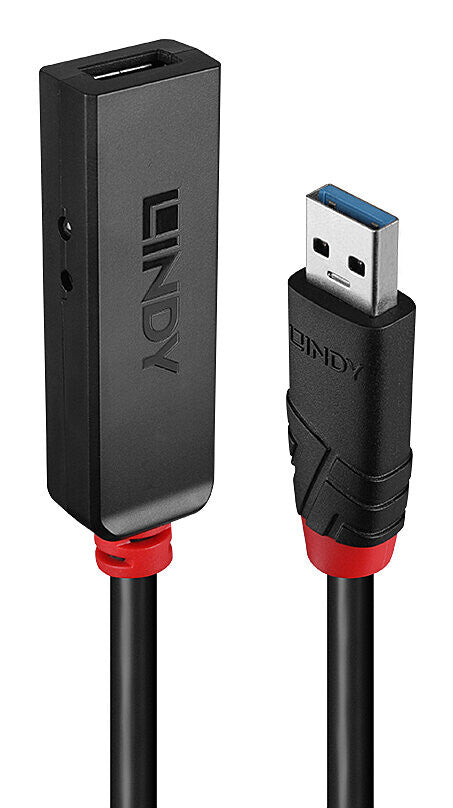

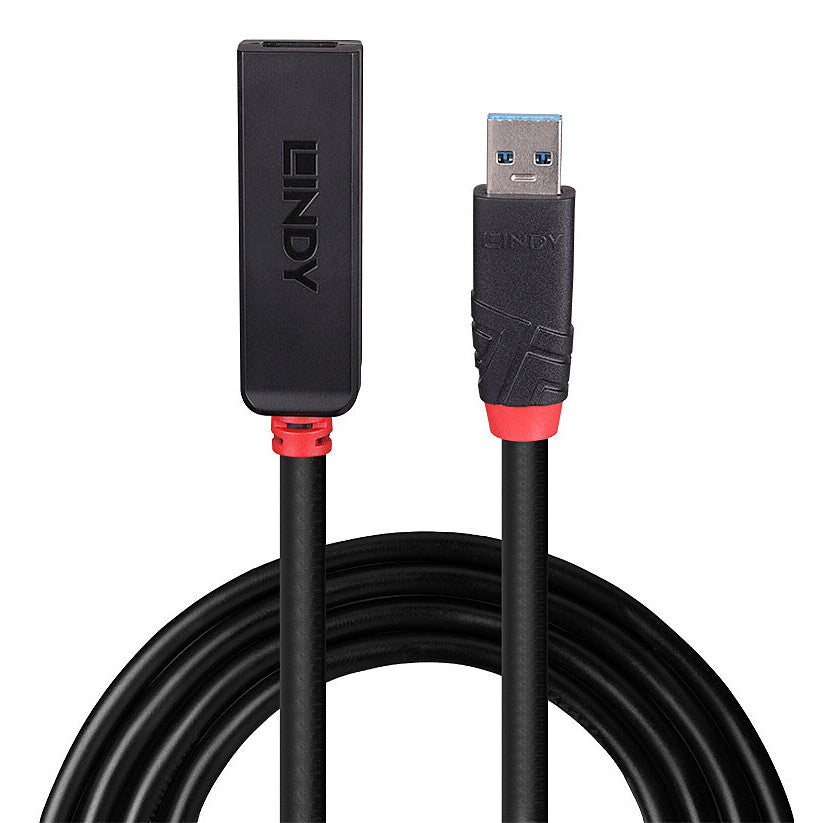

Lindy 5m USB 3.0 Active Extension Slim
Lindy 5m USB 3.0 Active Extension Slim
SKU:43401
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect up to 5 cables in series
- USB Power Adapter cable included
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

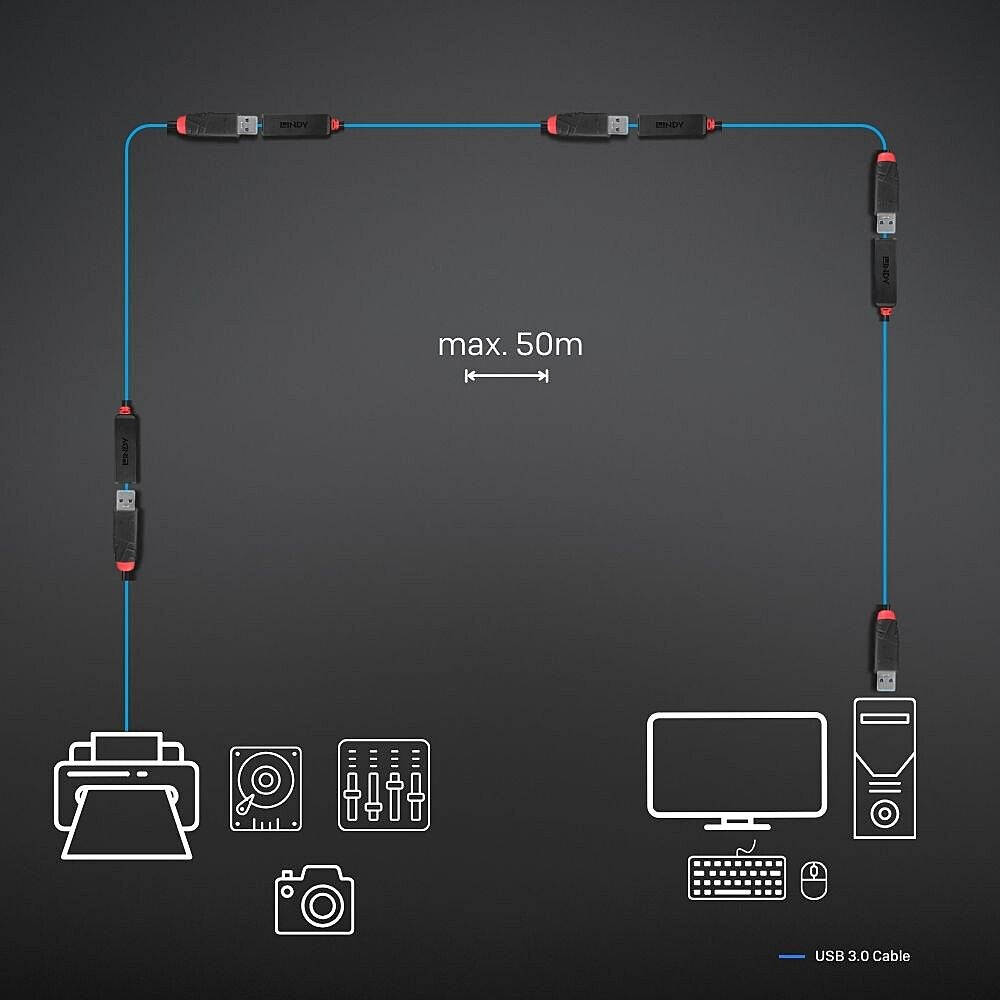

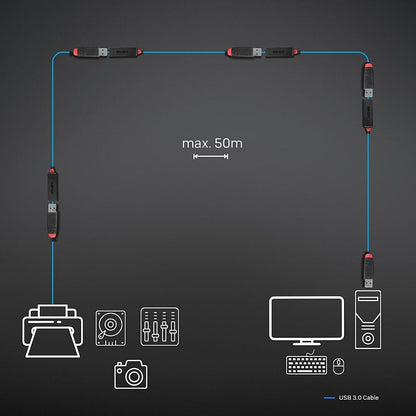

Up to 5 of these USB 3.0 Active Extensions Slim can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.

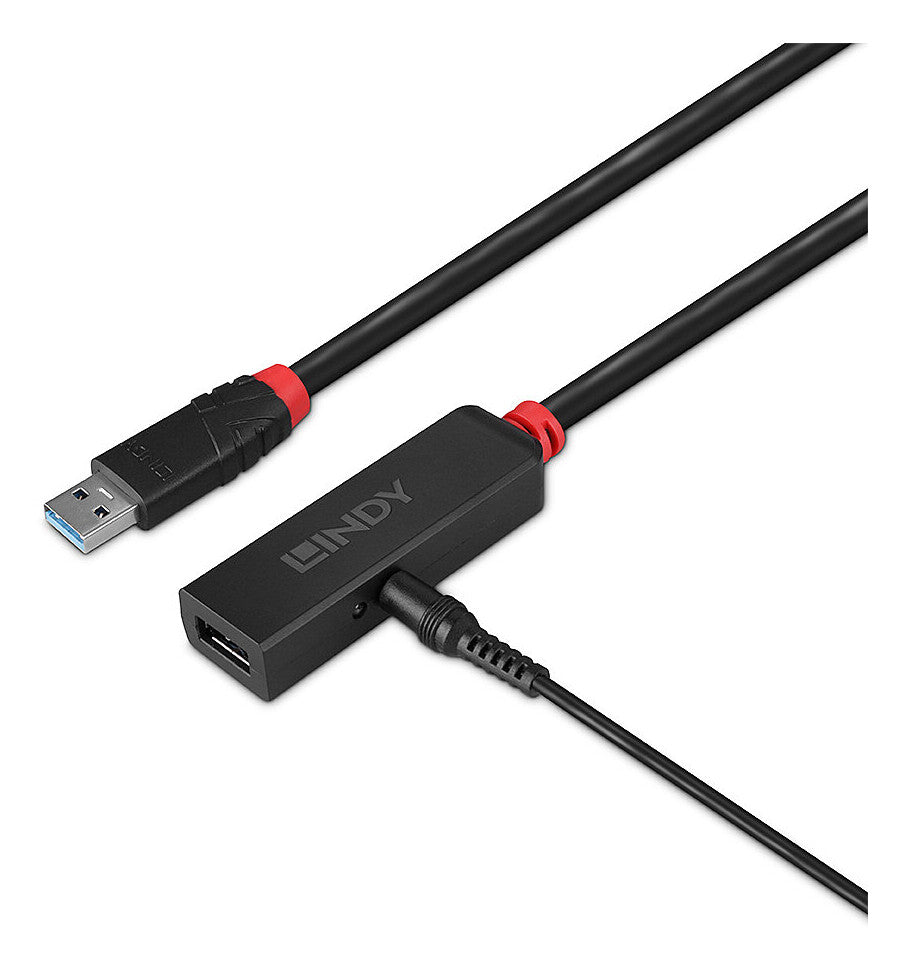

The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Ports & interfaces | |
|---|---|
| Ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Card reader integrated | No |
| DC-in jack | Yes |
| Features | |
|---|---|
| Data transfer rate | 5000 Mbit/s |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Cable type | Round cable |
| LED indicators | Yes |
| AWG wire size | 26 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable diameter | 6.5 mm |
| Cable length | 5 m |
| Conductor material | Tinned copper |
| Connector contacts plating | Nickel |
| Plug and Play | Yes |
| Transmission medium | Twisted pair |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Power | |
|---|---|
| Power supply type | DC |
| Weight & dimensions | |
|---|---|
| Weight | 260 g |
| Connector 2 dimensions (WxDxH) | 67.5 x 22 x 13.5 mm |
| Connector 1 dimensions (WxDxH) | 41.1 x 16.5 x 9.5 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 236 mm |
| Package depth | 255 mm |
| Package weight | 300 g |
| Package type | Polybag |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| Operational conditions | |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Storage temperature (T-T) | -10 - 60 °C |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
