Lindy

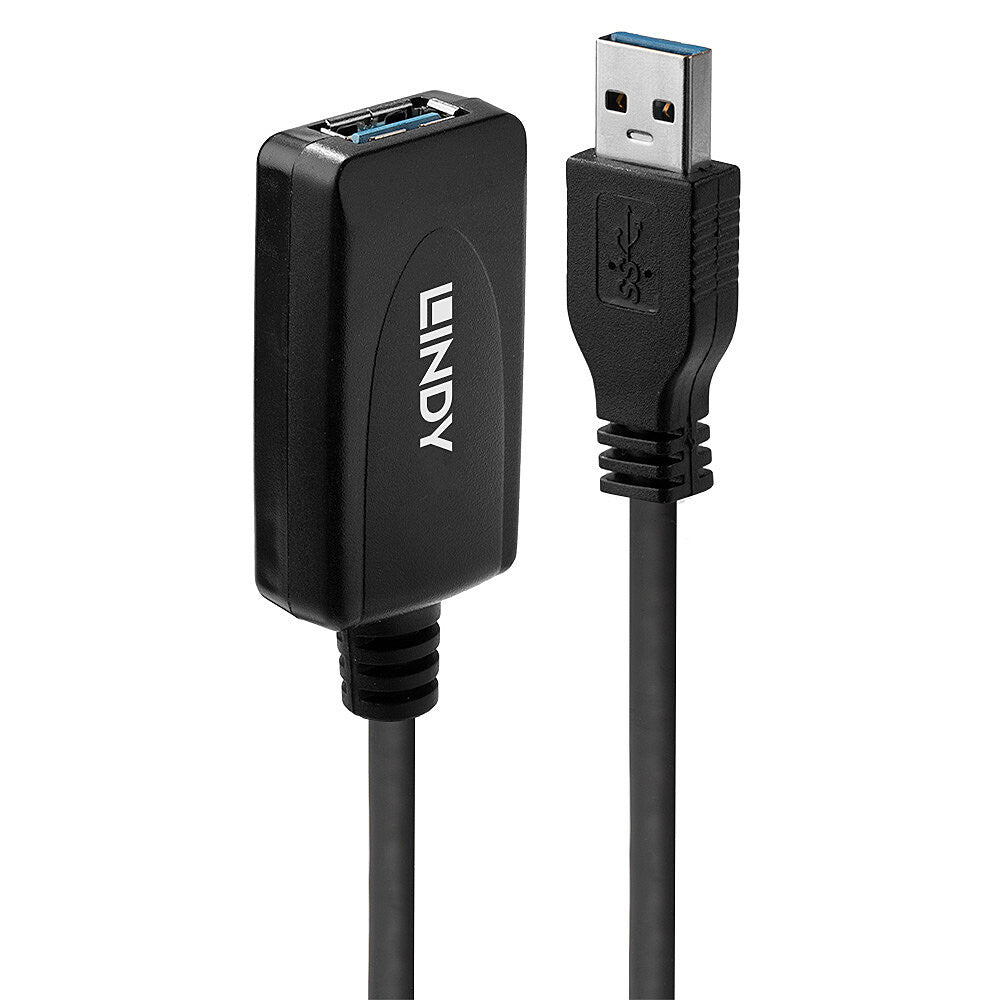

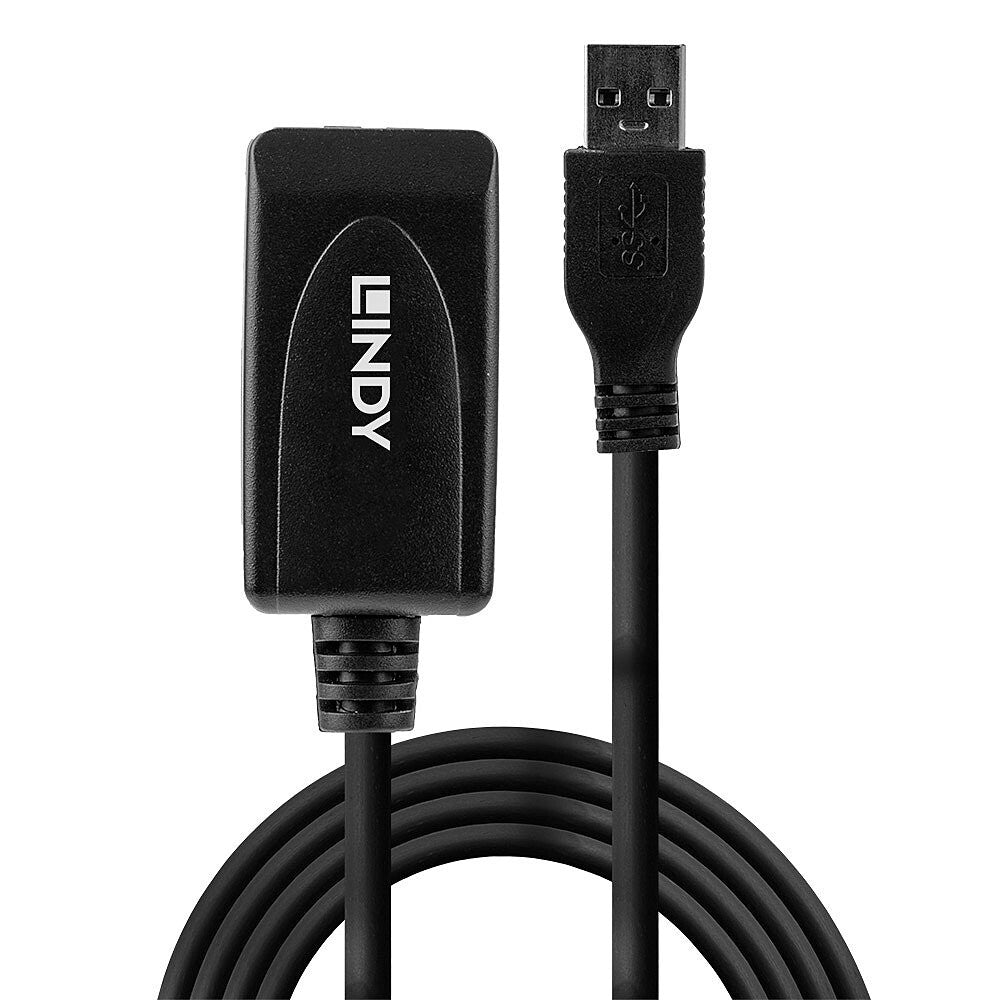

Lindy 5m USB 3.0 Active Extension
Lindy 5m USB 3.0 Active Extension
SKU:43155
159 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 5 metre USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.
It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Nominal attenuation | 1.5dB/2M@0.1GHz5.0dB/2M@1.25GHz7.5dB/2M@2.5GHz25dB/2M@7.5GHz |
| Transmission medium | Twisted pair |
| Cable type | Round cable |
| Product colour | Black |
| Maximum data transfer rate | 5 Gbit/s |
| Connector housing material | Plastic |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Gold |
| Contact material | Brass |
| Connector material | Gold |
| AWG wire size | 28/24 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 1 | USB A |
| Cable length | 5 m |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Weight & dimensions | |
|---|---|
| Weight | 220 g |
| Connector 2 dimensions (WxDxH) | 24 x 46 x 12 mm |
| Connector 1 dimensions (WxDxH) | 16 x 48 x 6 mm |
| Cable diameter | 5.5 mm |
| Bend radius (min) | 5.5 cm |
| Packaging data | |
|---|---|
| Package type | Blister |
| Package weight | 289 g |
| Package height | 138 mm |
| Package depth | 60 mm |
| Package width | 237 mm |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | 0 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
